DP240-1 Wireless Monitor and Night-Vision Camera Kit
| Share | |
|---|---|
| Categories | Wireless Camera |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Model | DP240-1 |
| Voltage | 9-30V |
| Storage | 128GB SD Card |
| Application | Suitable for All Vehicles |
| Operating Temperature | -20℃ ~ 70℃ |
| Dimensions | 100(L)X60(W)X1.2(H) |
| Power-on time | 2S Max |
| Transmission distance | >200M |
| RSSI display level | 4 |
| Video input impedance | 75Ω, Typ. |
| Audio input impedance | 200KΩ, Typ. |
| Warranty | 15 Months |
DP240-1 Wireless Monitor and Night-Vision Camera Kit
Wireless 1080P HD monitor and night-vision camera kit with >200m range and 1/2/4 split-view layouts.

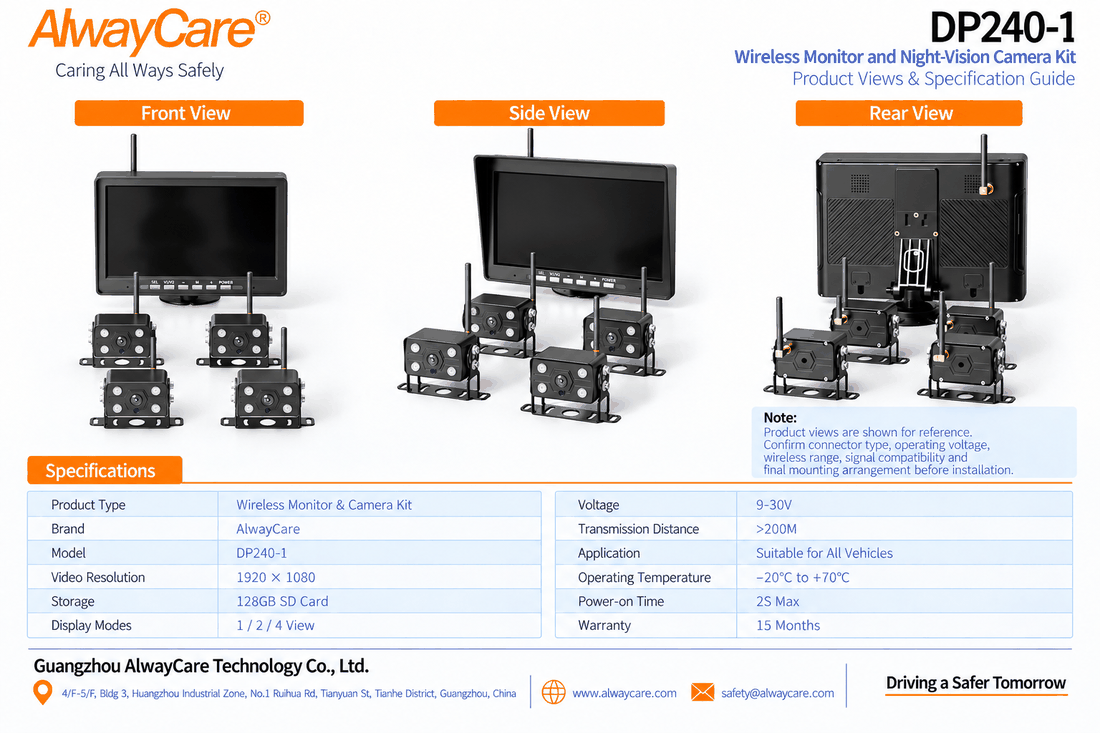

Technical Specifications
Values follow the factory datasheet — your quotation confirms the exact configuration.
| Model | DP240-1 |
|---|---|
| Voltage | 9-30V |
| Storage | 128GB SD Card |
| Application | Suitable for All Vehicles |
| Operating Temperature | -20℃ ~ 70℃ |
| Dimensions | 100(L)X60(W)X1.2(H) |
| Power-on time | 2S Max |
| Transmission distance | >200M |
| RSSI display level | 4 |
| Video input impedance | 75Ω, Typ. |
| Audio input impedance | 200KΩ, Typ. |
| Warranty | 15 Months |
What DP240-1 Delivers
Capability groups verified against the official product record — scope details are confirmed in your quotation.

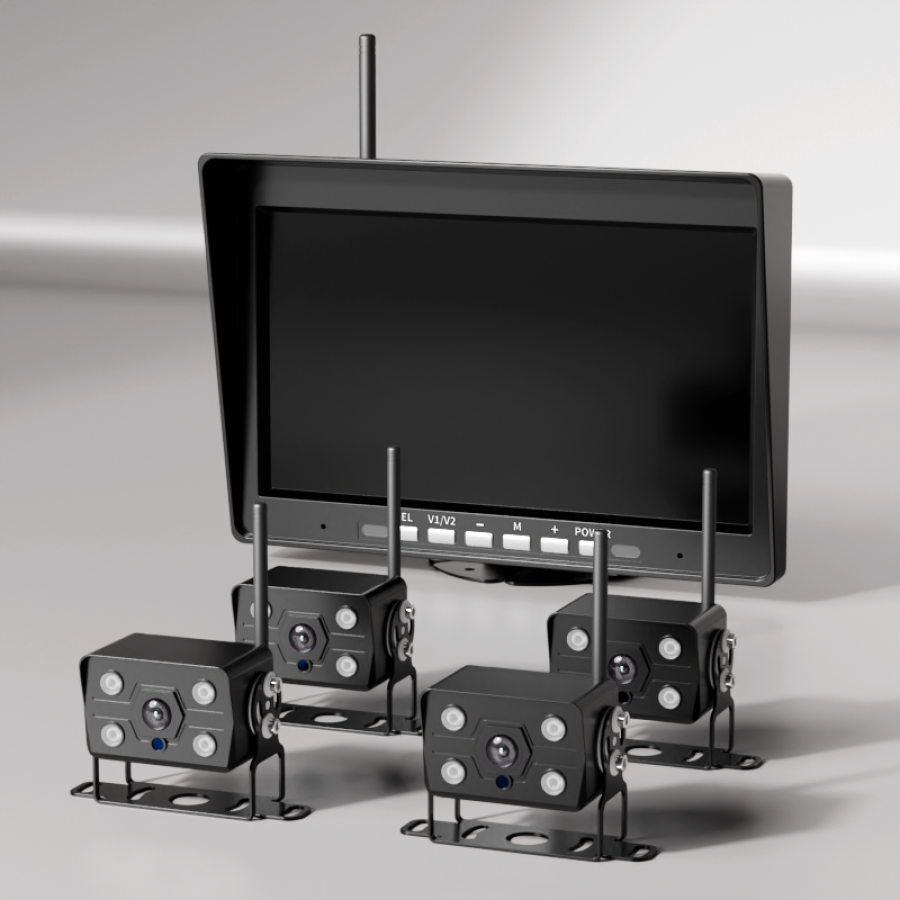

Recording & Storage
128GB SD Card
- 1080P Full HD Video: 1920×1080 resolution with high-power IR LEDs for clear day and night vision.
- 128GB SD Storage: Supports continuous cyclic recording to preserve on-road incidents.

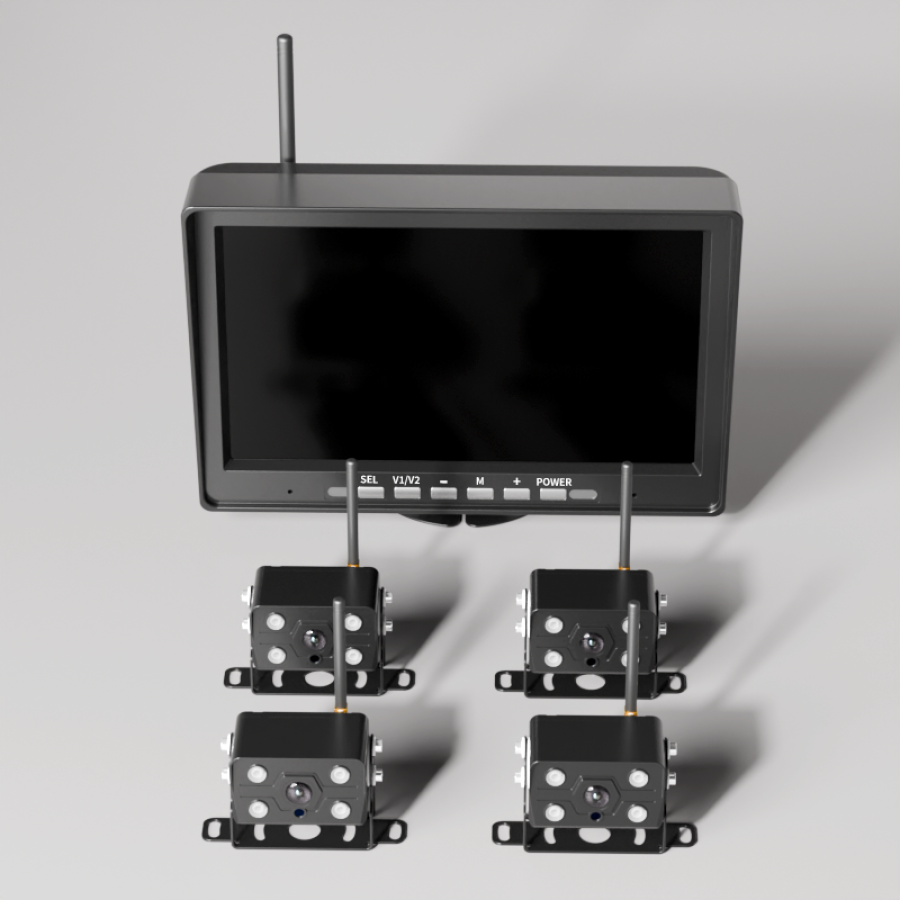

Connectivity & Positioning
>200M
- 200M+ Digital Wireless: Stable point-to-point digital transmission without trailer wiring runs.
- Zero Crosstalk: Frequency pairing prevents signal interference from nearby wireless equipment.

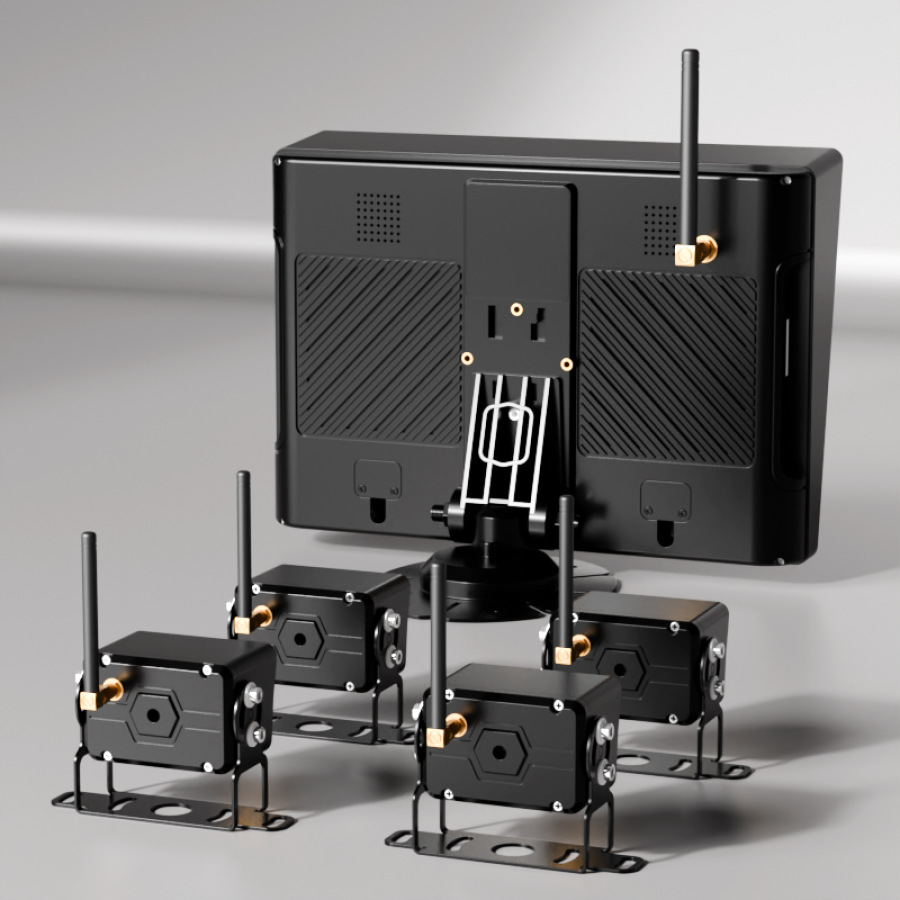

-20℃ ~ 70℃ Power & Operating Range
9-30V
- Fast 2s Boot: Displays video feed within 2 seconds of ignition or reverse gear trigger.
- Multi-View Layouts: Selectable single, dual, or quad display modes to suit diverse cab setups.
- 9V-30V DC Input: Wide voltage compatibility with reverse polarity and surge protection.
15 Months Warranty & Supply
Suitable for All Vehicles
- -20°C to +70°C Duty: Resists severe cold, cabin heat, and engine vibration.
- 15-Month Warranty: Direct manufacturer quality guarantee with long-term replacement support.
Built for Long-Term Fleet Programs
Factory Direct Supply
Devices ship from our own production line, with engineering support from the team that builds them.
Certified & Lab Tested
CE, UKCA, RoHS and ISO 9001 — every platform is backed by third-party laboratory test reports.
15-Month Warranty
Coverage that goes beyond the standard 12-month term, honored through your dedicated account manager.
OEM & Firmware Support
Logo, packaging, firmware behavior and interface customization for your market and fleet platform.
From Inquiry to Delivery in Four Steps
A clear path from first contact to units running in your fleet — no obligation at the evaluation stage.
Share Your Requirements
Send fleet size, vehicle models and target functions through the inquiry form or to your account manager.
Version & Quotation
Our engineers map your needs to the right DP240-1 version and issue a formal quotation within one business day.
Sample Evaluation
Sample units are available for road testing before you commit to a bulk order — evaluate first, decide later.
Production & Delivery
Bulk orders ship with factory QC reports, export documents and the 15-month warranty from dispatch.
Documents & Downloads
Everything your engineering and procurement teams need for evaluation.
Product Datasheet
Full specifications and ordering information — request the current DP240-1 datasheet.
Request DatasheetCertificates & Test Reports
Certification and third-party laboratory reports for the selected version and target market.
Request CertificatesUser Manual & Installation Guide
Wiring, mounting and configuration instructions — provided with sample orders.
Request ManualCMS Software & Demo
Platform access for evaluation — connect supported configurations to a live demo fleet.
Request Demo AccessComplete the In-Vehicle Safety Stack
Product families commonly deployed alongside DP240-1 in the same fleet stack.
CC981-W Solar-Powered Wireless Vehicle Camera
Model CC981-W — Wireless Camera for commercial fleets.
CC982-W IP68 Wireless Camera with Laser Guide
Model CC982-W — Wireless Camera for commercial fleets.
WP235-A 7" Digital Wireless Dual-Split Monitor Kit (...
Model WP235-A — Wireless Camera for commercial fleets.
Frequently Asked Questions
Can't find your answer? Our engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
Which connectivity options are available?
DP240-1 supports vehicle-grade connectivity. Map the interfaces to your onboard systems before ordering.
Which warranty applies?
DP240-1 ships with a 15 Months warranty. Confirm the final terms and regional service coverage in your quotation.
What vehicles does it fit?
Suitable for All Vehicles — mounting positions and camera coverage must be designed for the specific vehicle layout.
Are all listed features standard on every unit?
No. Detection coverage, connectivity and camera options are configuration-dependent. Confirm the exact scope in the quotation — our engineers will recommend the right version for your vehicles.
