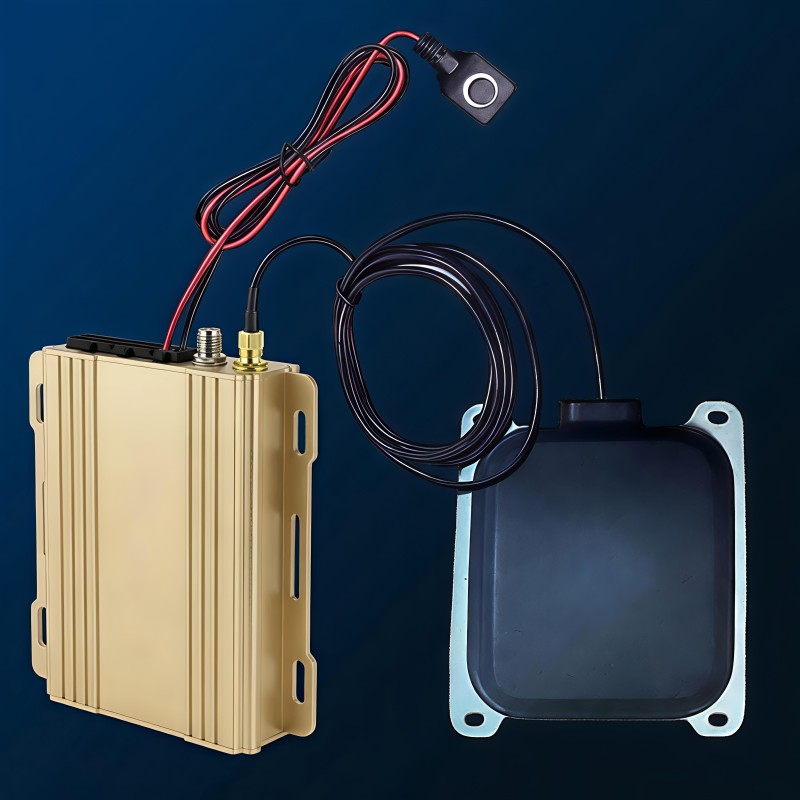

AL-GS10 GPS Tracker for Commercial Truck Fleets
AL-GS10 GPS Tracker for Commercial Truck Fleets
Wire-free asset GPS tracker featuring 60-day ultra-long standby, strong neodymium magnetic mount, optical tamper detection, and GPS + BeiDou + LBS positioning.

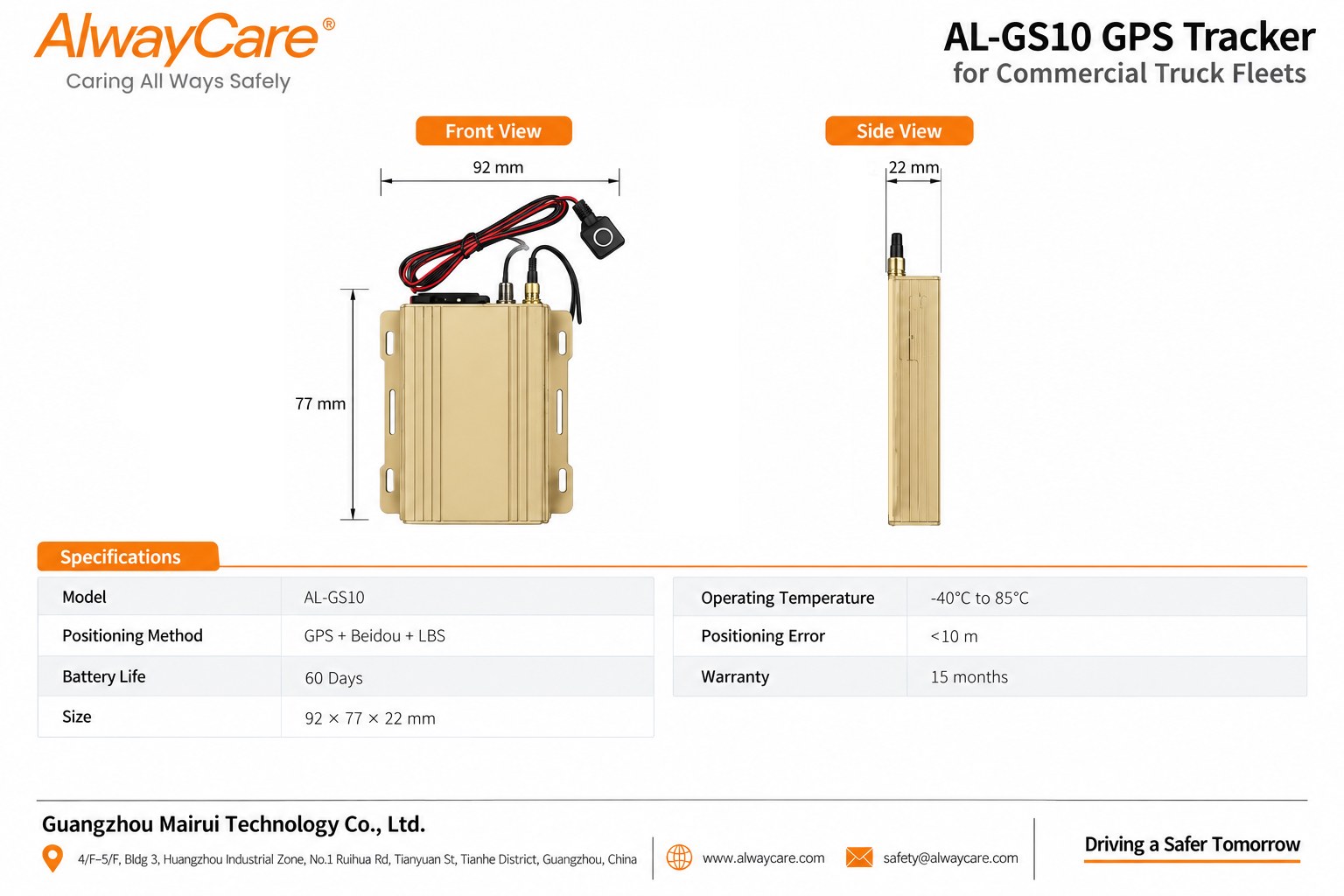

Wireless Tracker Engineering Parameters
Verified factory specifications for the AlwayCare AL-GS10 wireless magnetic tracking device. Designed for zero-wire installation and long-term asset oversight.
| Hardware Model | AlwayCare AL-GS10 (60-Day Magnetic Asset Tracker) |
|---|---|
| Battery Capacity & Type | High-energy density industrial lithium battery pack (ultra-low self-discharge) |
| Standby Endurance | Up to 60 Days (Configurable intervals; supports extended sleep modes) |
| Positioning Modes | GPS + BeiDou (BDS) + LBS Cellular Base Station Positioning |
| Positioning Accuracy | < 10 meters (Outdoor open sky) | LBS fallback in indoor facilities |
| Mounting Method | Wire-free 0-second attachment via built-in high-strength neodymium magnets |
| Anti-Theft Tamper Protection | Light-sensing optical anti-removal sensor (Instant alert if detached from metal) |
| Operating Modes | Timed reporting mode, motion-activated wake mode, emergency continuous tracking |
| Telemetry Capabilities | Geo-fence breach alert, overspeed warning, low-battery notification, blind-spot buffer |
| Enclosure Dimensions | 92mm × 77mm × 22mm |
| Enclosure Material | Industrial UV-stabilized impact-resistant PC+ABS engineering polymer |
| Operating Temperature | -40°C ～ +85°C (Extreme cold-chain and desert climate certified) |
| Factory Warranty | 15 Months Manufacturer Coverage |
Standard Factory Bill of Materials (BOM)
| 1. Central Tracking Terminal | AlwayCare AL-GS10 Long-Standby Magnetic Host (with embedded magnets) × 1 |
|---|---|
| 2. Light-Sensor Shield | Optical anti-tamper trigger seal and protective barrier × 1 |
| 3. Recharging Harness | Industrial waterproof USB charging cable × 1 |
| 4. Auxiliary Adhesive | Heavy-duty 3M VHB mounting foam pad for non-magnetic surfaces × 1 |
| 5. Documentation Package | Factory QC certification pass and platform quick-start guide × 1 |
Wire-Free Asset Telematics Matrix
Evaluate AlwayCare wireless battery-powered tracking terminals by endurance rating, form factor, and anti-tamper security.
| Model | Battery Capacity | Standby Profile | Dimensions & Weight | Mounting & Tamper Defense | Target Asset Deployment |
|---|---|---|---|---|---|
| G502 Micro Asset |
1500mAh Li-ion | Up to 15 Days | 53 × 31 × 20mm (41g) | Compact Wire-Free / Concealed Placement | Valuable cargo parcels, luggage, toolboxes |
| AL-GS10 Current Model Commercial Truck |
High-Density Industrial Cell | Up to 60 Days | 92 × 77 × 22mm | Strong Neodymium Magnet + Optical Tamper Sensor | Commercial truck trailers, shipping containers, rental haulers |
| G501 Long-Life 4G |
6000mAh Polymer | Up to 45 Days | 75 × 45 × 31mm (143.5g) | Built-in Magnetic Plate + Geo-Fence | Intermodal cargo containers, logistics flatbeds |
| G212 Ultra Endurance |
10000mAh Polymer | Up to 120 Days | 112 × 78 × 27mm (300g) | Heavy Magnetic Base + Removal Alarm | Heavy equipment layover, long-term maritime leasing |
Wire-Free Protection for Commercial Cargo
Engineered specifically to solve the installation bottlenecks and power limitations of unpowered freight assets.
Zero-Wiring 0-Second Magnetic Deployment
High-adhesion neodymium magnets allow instant attachment to any ferrous surface without tools or vehicle rewiring.
- Magnetic Mount: 6 high-strength neodymium magnets clamp firmly to chassis girders and container frames.
- 60-Day Battery Standby: High-capacity lithium battery powers wire-free asset tracking for months.
- Instant Relocation: Transfer seamlessly between freight containers, unpowered trailers, and rental machinery.
Optical Anti-Removal Tamper Detection
Integrated high-sensitivity light sensors provide active anti-tamper security against illicit device detachment.
- Optical Anti-Tamper: Light-sensor trigger sends instant alerts if unit is removed from metal surface.
- High-Priority Dispatch: Dispatches immediate emergency SMS and push alerts with live location coordinates.
- Detachment Logging: Records exact removal timestamps and geofence coordinates for theft recovery.
GPS + BeiDou + LBS Triple-Mode Positioning
Combines dual satellite reception with cellular cell-tower triangulation for seamless outdoor and indoor location tracking.
- Triple-Mode Positioning: Seamlessly combines GPS, BeiDou, and LBS cell-tower tracking for <10m accuracy.
- Indoor Warehouse Tracking: Automatically shifts to cell-tower LBS when assets enter covered warehouses.
- Smart Adaptive Reporting: Conserves energy during idle holding and increases reporting frequency in motion.
-40°C to +85°C Extreme Temperature Endurance
Built with industrial-grade low-temperature electrolyte chemistry to endure cross-continental shipping environments.
- IP67 Weatherproof: Hermetically sealed casing protects against heavy rain, mud, and marine salt fog.
- Cold-Chain Verified: Operates reliably down to -25°C inside refrigerated reefer containers.
- UV & Heat Resistant: Heavy-duty industrial polymer withstands direct sun exposure in desert logistics corridors.
Asset Tracking Peripherals & Protection
Specialized accessories designed to safeguard the AL-GS10 during extended transport voyages.
Shockproof Silicone Protective Case
Rugged bumper jacket providing extra cushioning against heavy impacts, gravel strikes, and corrosive chemical spills.
Metal Anti-Theft Cage Bracket
Reinforced steel locking cage for bolted installation where magnetic mounting requires supplemental physical lock security.
External Solar Charging Panel
Weatherproof solar panel accessory providing continuous top-off power for permanent multi-year container deployments.
BLE Cargo Temperature Beacon
Wireless Bluetooth sensor tag monitoring in-container temperature and humidity for pharmaceutical and perishable freight.
Wireless Container Door Sensor
Magnetic contact sensor detecting unauthorized freight door openings and dispatching immediate break-in alerts.
Enterprise Fleet CMS License
Cloud portal featuring real-time asset heatmaps, tamper alarm routing, geo-fence monitoring, and automated battery health alerts.
Field Asset Deployment Scenarios
Proven tracking effectiveness across unpowered intermodal containers, flatbeds, and high-value equipment.
Intermodal Shipping Containers
Magnetic placement on corner castings delivers end-to-end voyage visibility across road, rail, and maritime transfer points.
Flatbed & Drop-Deck Trailers
Wire-free installation tracks unpowered trailers left at client distribution hubs without draining tractor power.
High-Value Construction Machinery
Concealed magnetic mounting under chassis frames facilitates rapid recovery if equipment is removed from jobsites overnight.
Refrigerated Cold-Chain Cargo
-40°C certified operational tolerance tracks reefer boxes and temperature-sensitive food shipments without battery freezing.
Technical Documentation & Downloads
Product documentation and engineering specifications for logistics directors and freight security teams.
AL-GS10 Product Datasheet
Detailed technical specifications, battery life calculation charts, and magnetic pull force measurements.
Request DatasheetAsset Deployment Guide
Recommended placement zones on containers, dry vans, and flatbeds to ensure optimal GPS sky exposure.
Request GuideBattery Life Calculation Tool
Estimation tables mapping battery longevity against reporting frequencies (1 report/day, 4 reports/day, continuous mode).
Request ToolSecurity & Lab Certifications
Laboratory documentation covering CE, RoHS, shock/vibration compliance, and transport battery safety certifications.
Request CertificationsTechnical & Asset Security FAQ
Direct answers regarding wire-free magnetic tracking and battery longevity. For project consultations, contact our team.
How does the AL-GS10 achieve a 60-day standby battery lifespan?
The unit combines high-capacity industrial lithium cell chemistry with intelligent power management. In standard timed reporting mode (e.g., uploading location 1 to 2 times daily), the device stays in microamp deep sleep between updates, extending battery life up to 60 days or longer before requiring a recharge.
Will the magnetic mount hold securely on bumpy highways or off-road conditions?
Yes. The AL-GS10 embeds multiple industrial-grade neodymium (NdFeB) rare-earth magnets engineered with high shear and pull resistance. It has undergone rigorous vibration tests matching harsh highway and off-road freight conditions to ensure it remains firmly fixed to metallic frames.
How does the optical anti-removal tamper sensor operate?
A downward-facing light sensor is compressed against the metallic surface upon installation. If an unauthorized individual pries the tracker off, ambient light enters the sensor window, immediately triggering a high-priority tamper alarm transmitted to the CMS platform and operator smartphones.
How does the device report location when placed inside warehouses or metal containers?
When satellite line-of-sight is blocked by warehouse roofs or metallic walls, the AL-GS10 automatically falls back to LBS cellular cell-tower triangulation, ensuring dispatchers always maintain regional positioning visibility even without direct GPS satellite locks.
Can the battery withstand sub-zero cold-chain reefer temperatures?
Yes. The internal lithium power pack utilizes a specialized low-temperature electrolyte formula rated down to -40°C, preventing capacity collapse and electrolyte crystallization inside refrigerated shipping containers or extreme winter conditions.
