11.6-inch display
A larger single-screen format helps drivers review one selected vehicle view.

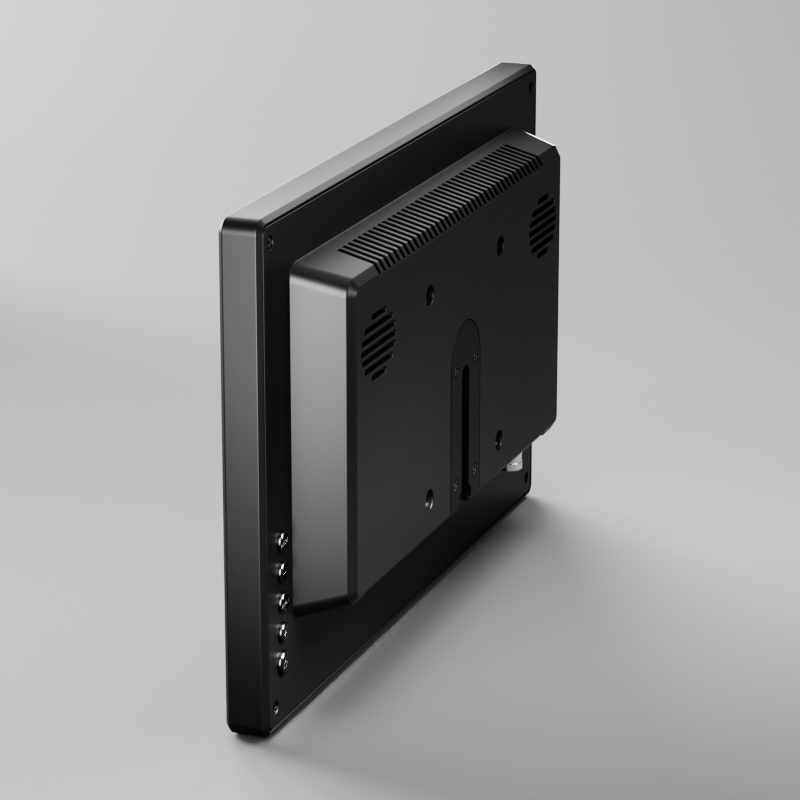

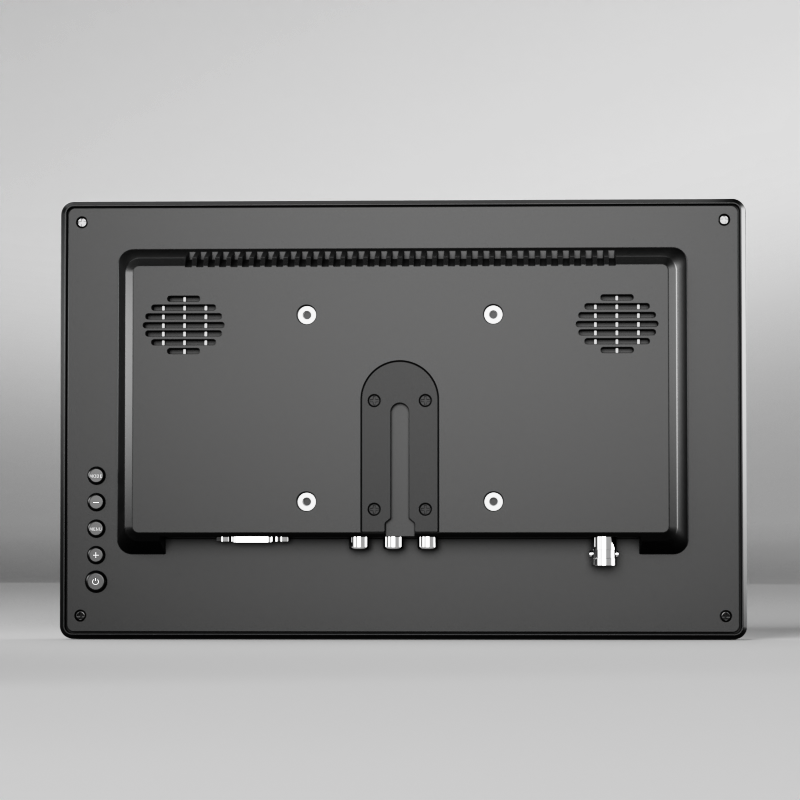

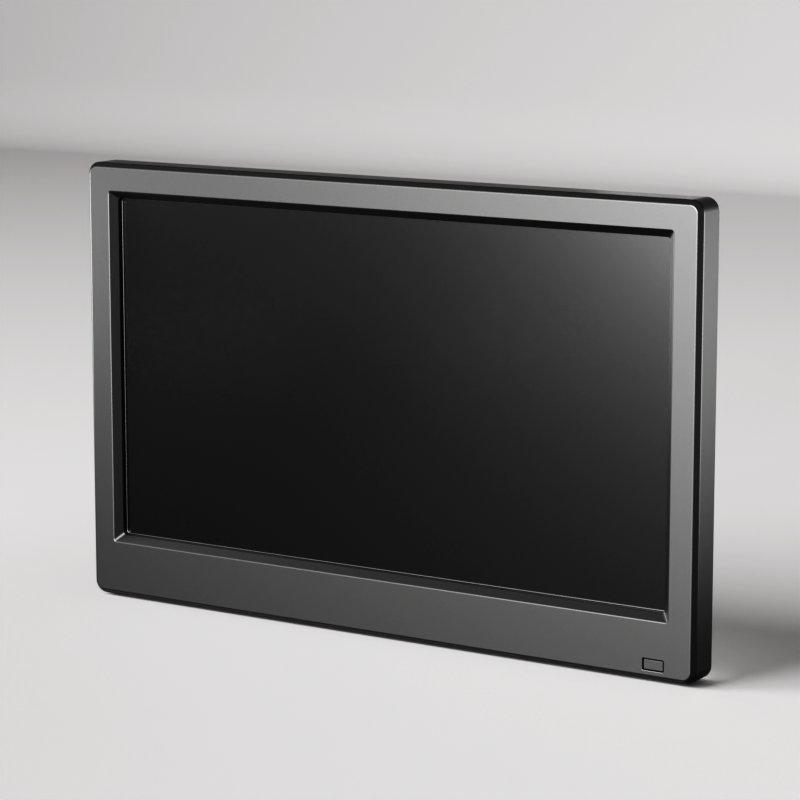

DP300 11.6-Inch HD Vehicle Monitor for Trucks
Detail Information
DP300 · Vehicle monitor
What is DP300?
DP300 is an 11.6-inch vehicle monitor with a 1366×768 display, built-in speaker and HDMI connection for compatible mobile DVR systems.
Buyer overview
Four points to evaluate first
1366×768 resolution
The structured attributes list 1366×768 display definition.
HDMI connection
The current body states use with MDVR devices that provide a compatible HDMI interface.
Built-in speaker
The source lists an integrated speaker for systems that supply compatible audio.
System fit
Match the display to cameras and recorder
A vehicle monitor must match the camera signal, definition, connector, channel layout, trigger behavior, power supply and mounting position. Confirm whether recording or AI functions are inside the monitor or supplied by another device.
Viewing decision
Define camera count, split-screen layout, screen size, viewing distance and automatic trigger views.
Integration decision
Confirm CVBS, AHD or HDMI compatibility, connector pinout, power range, storage and cable lengths.
Current structured record

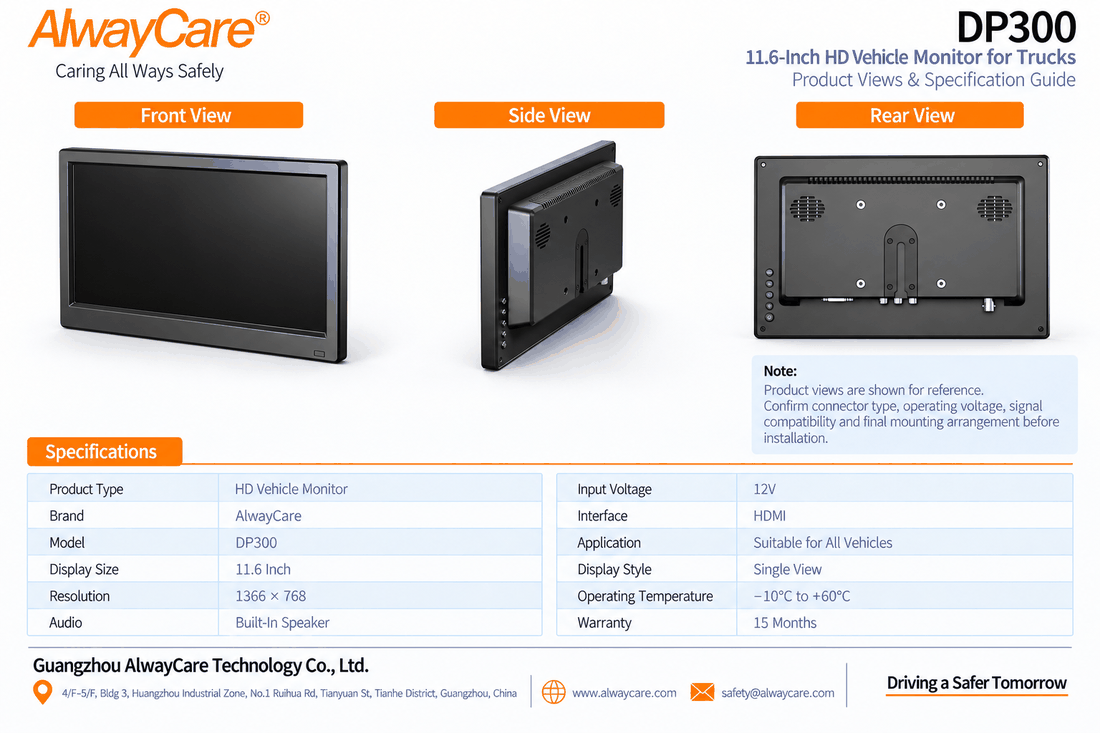

Technical specifications
| Voltage | 12V |
|---|---|
| Definition | 1366*768 |
| Application | Suitable for All Vehicles |
| Operating Temperature | -10℃ ~ 60℃ |
| Warranty | 15 Months |
Duplicate attribute rows are displayed once. Current structured data is the baseline; older-body conflicts are disclosed below.
Preserved from the original page
Existing Product and Application Views
Installation planning
Plan the driver view before installation
Check line of sight, glare, cab vibration, bracket clearance, cable routing and whether the display obstructs mirrors, controls or the road view.
Example applications
Where DP300 may fit
Truck fleets
Display a selected MDVR camera or system view on a larger in-cab screen.
Command or service vehicles
Use HDMI output from compatible recording equipment for local viewing.
Special-purpose vehicles
Add a dedicated display after confirming power, mounting and signal compatibility.
Specification and integration boundary
The earlier brief called the display wide-angle, but the current detailed record does not state a verified viewing angle. Camera input count, HDMI version, audio behavior, mounting bracket, connector details and ingress protection are also not specified and require confirmation.
Buyer questions
DP300 FAQ
What is the DP300 screen size?
The current product body lists an 11.6-inch single-screen display.
What display definition is listed?
The structured attributes list 1366×768, while the body also lists a 16:10 display ratio and 500:1 contrast.
Can DP300 connect directly to an MDVR?
The source states use with MDVR devices that have an HDMI interface. Confirm connector, output resolution and cable requirements for the selected recorder.
Does DP300 include audio?
The current body lists a built-in speaker. Confirm whether the intended MDVR output carries compatible audio.
What power input is listed?
The structured attributes list 12V. Confirm whether a regulator is needed for the vehicle electrical system.
What should be provided before ordering?
Share the MDVR model, HDMI output specification, vehicle voltage, installation space, bracket requirement, cable length and audio need.
Confirm the complete viewing system
Share your cameras, recorder and vehicle requirements
AlwayCare can review signal compatibility, channel layout, display placement, power, storage and cabling.
