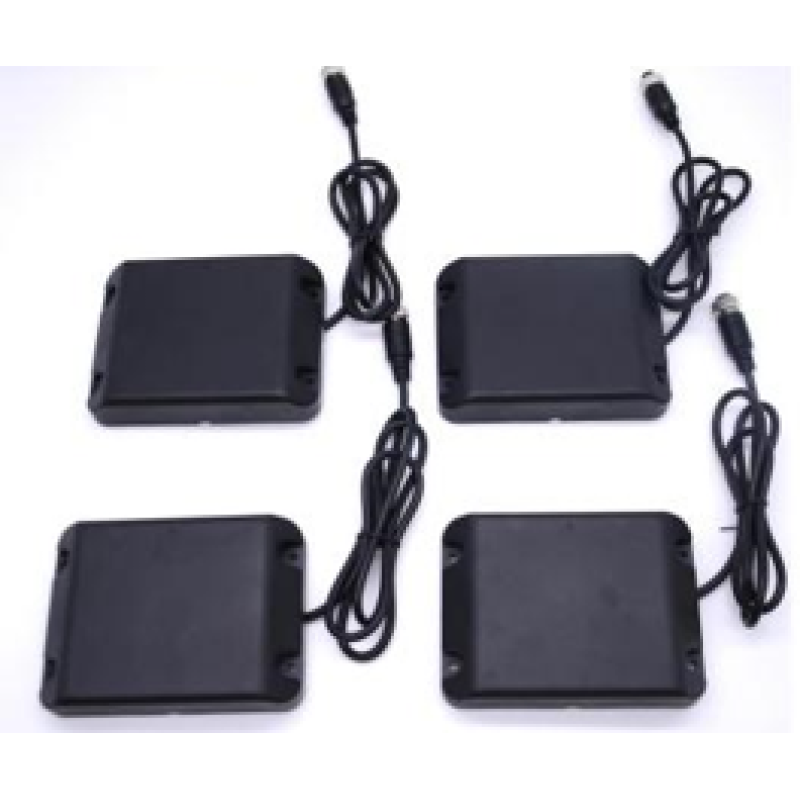

R360 4-Channel 77GHz Radar Blind Spot Detection System for Commercial Vehicles

R360 4-Channel 77GHz Radar Blind Spot Detection System for Commercial Vehicles
R360 4-Channel 77GHz Radar Blind Spot Detection System for Commercial VehiclesR360 4-Channel 77GHz Radar Blind Spot Detection System for Commercial Vehicles
Share
CategoriesRadar Detection System
BrandAlwayCare Commercial Fleet Safety Manufacturer
ModelR360
Operating Frequency77.0 ～ 78.0 GHz Millimeter-Wave Band
Radar Channels4× Independent 77GHz Radar Sensors
Detection Range0.2m ～ 40m (Pedestrians) | Up to 100m (Vehicles)
Horizontal Detection Angle110° Effective Azimuth (-60° ～ +60°)
Vertical Elevation Angle-5° ～ +5° (10° Vertical Beamwidth)
Simultaneous Target TrackingUp to 64 Discrete Targets (FFT Clustering)
Refresh Rate33 Hz Continuous Refresh (30ms Latency)
Communication InterfaceHigh-Speed CAN Bus (250k / 500k default / 1Mbps)
Alarm Output InterfacesRS485 Serial Protocol + 4-Channel Trigger I/O
Ingress Protection RatingIP67 (Sensors) / IP65 (Control Box)
Operating Temperature & Voltage-40℃ ～ +85℃ | DC 12V ～ 32V Wide Voltage
R360 4-channel 77GHz radar system detects obstacles up to 100m with 110° wide beam coverage and CAN bus integration.
Contact Now
Add to Wishlist
Detail Information
MODEL: R360

R360 4-Channel 77GHz Radar Blind Spot Detection System for Commercial Vehicles

Industrial-grade 77GHz millimeter-wave radar obstacle avoidance system featuring 4-channel surround detection, 110° wide azimuth beam, up to 100m detection range, and high-speed CAN bus telematic integration for heavy-duty commercial fleets.

Inquire View Specifications
15 Months Warranty IATF 16949 Factory Ships to 50+ Countries
R360 4-Channel 77GHz Radar Blind Spot Detection System for Commercial Vehicles — 4-channel radar sensors pack R360 4-Channel 77GHz Radar Blind Spot Detection System for Commercial Vehicles — central radar control box
Factory Engineering Standards

Technical Specifications

Verified technical parameters for the R360 4-Channel Radar System according to factory calibration sheets.

77GHz Radar Sensor Units (4× Standard Configuration)

Operating Frequency Band77.0 GHz ～ 78.0 GHz Millimeter-Wave Frequency
Sensor Transceiver Architecture2Tx × 4Rx Multiple-Input Multiple-Output (MIMO) Antenna Array
Detection Range0.2m ～ 40m (Pedestrians / Workers) | Up to 100m (Vehicles, Machinery & Large Obstacles)
Horizontal Detection Angle (Azimuth -6dB)110° Effective Detection Field (-60° ～ +60° horizontal coverage, minimizing blind zones)
Vertical Detection Angle (Elevation -6dB)-5° ～ +5° (10° total elevation beamwidth, ground-clutter suppression)
Radial Distance Resolution0.2 m (Separates and tracks obstacles spaced >0.5m apart)
Velocity Measurement & ResolutionVelocity range ±60 km/h | Velocity resolution 2 km/h
Sensor Refresh Rate33 Hz (Continuous 30ms high-speed refresh cycle)
Ingress Protection RatingIP67 Waterproof, Dustproof & Mud-Resistant Sealed Enclosure
Operating Voltage & Consumption12V DC Operating Voltage | Power Consumption < 2W per sensor unit
Operating & Storage Temperature-40℃ ～ +85℃ Automotive-Grade Extreme Temperature Standard
Sensor Dimensions & Weight92 × 76.1 × 22.3 mm | 109.5g per sensor unit
Sensor Communication InterfaceHigh-Speed CAN Bus with Waterproof Screw-Lock Connectors

Central Radar Control & Processing Box

Operating Voltage RangeDC 12V ～ 32V Wide Operating Voltage (Reverse-polarity & load dump surge protection)
Full-Load Power Consumption< 8W Total System Power (Including 4 active radar sensors connected)
Connected Radar Capacity1 to 4 Radar Sensor Channels Supported Simultaneously
Digital Signal ProcessingHigh-Performance Fast Fourier Transform (FFT) & Dynamic Target Clustering Algorithms
Simultaneous Target TrackingUp to 64 Targets Tracked and Output Simultaneously
Host Communication ProtocolsRS485 Industrial Serial Protocol & CAN Bus Interface
Configurable CAN Baud Rates250 kbps / 500 kbps (Factory Default) / 1 Mbps Configurable
Alarm Output Interfaces4-Channel Trigger I/O Outputs (For in-cab display, sirens, warning lights & MDVR alarms)
Housing Ingress ProtectionIP65 Weatherproof Industrial Aluminum/Polymer Casing
Control Box Dimensions94 × 94 × 50 mm with 4-Corner Robust Mounting Flanges

Standard Package BOM (Bill of Materials)

Central Radar Control Box1× Heavy-Duty Central Processing Box (DC 12–32V, IP65)
77GHz Radar Sensors4× 77GHz Millimeter-Wave Radar Sensors (IP67, 110° Azimuth)
Radar Extension Cables4× 5m Waterproof Industrial Radar Extension Cables
Mounting Accessories1× Complete Mounting Bracket, Fastener & Hardware Kit
Fleet Radar Architecture

Commercial Vehicle Radar Comparison Matrix

Evaluate radar detection systems across the AlwayCare safety lineup to select the ideal hardware configuration for your fleet.

← Swipe horizontally to view full matrix →
SYSTEM MODEL RADAR SENSORS DETECTION COVERAGE COMMUNICATION & I/O TARGET TRACKING RECOMMENDED APPLICATION
R360 4-Channel CURRENT MODEL
Full 4-Zone Surround
 4× 77GHz Radars (IP67) 0.2m ～ 40m Pedestrians
Up to 100m Vehicles 360° Surround		 CAN Bus (250k/500k/1M)
RS485 + 4-Ch Alarm I/O		 Up to 64 Targets (FFT Clustering) Mining Dumpers, Articulated Trucks, Heavy Machinery & Municipal Fleets
R350-2 Dual-Radar
Dual-Zone System
 2× 77GHz Radars (IP67) 0.2m ～ 40m Zone Detection Dual Zones CAN Bus + Display Protocol Multi-target early warning Heavy Forklifts, Large Wheel Loaders, Container Handlers
R350-1 Single-Radar
Single-Zone System
 1× 77GHz Radar (IP67) 0.2m ～ 40m Zone Detection Single Zone Integrated Buzzer / Display Single-zone obstacle alert Standard Warehouse Forklifts, Reach Trucks, Pallet Jacks
R300 Ultrasonic
Short-Range Proximity
 4 / 8 Ultrasonic Probes 0.3m ～ 3.0m Parking Zone Buzzer Sound Output Closest obstacle distance Commercial Vans, Shuttles, Rigid Body Delivery Trucks
Core Engineering Strengths

What R360 Delivers for Commercial Fleet Safety

Engineered specifically for heavy transport and industrial environments where blind spots cause severe occupational hazards.

R360 4-Channel Panoramic Radar Coverage
Zero Blind Zone Protection

4-Channel Panoramic Radar Mesh Surrounding the Vehicle

With 4 synchronized 77GHz millimeter-wave radar sensors deployed on vehicle corners, the R360 system provides ultra-wide 110° azimuth coverage per channel, eliminating dangerous blind sectors along vehicle flanks, front overhangs, and rear reversing paths.

  • 110° ultra-wide horizontal beam angle per radar unit for complete flank and perimeter coverage
  • Radial distance discrimination down to 0.2m, distinguishing close-proximity personnel from machinery
  • Covers critical pedestrian danger zones (0.2m ～ 40m) and structural obstacles up to 100m away
Advanced FFT Multi-Target Tracking Engine
Signal Processing Intelligence

Advanced FFT Signal Processing & 64-Target Dynamic Tracking

Equipped with Fast Fourier Transform (FFT) processing and target clustering algorithms, the R360 control box tracks up to 64 discrete targets simultaneously, delivering stable trajectory prediction without false alarms from minor ground clutter or foliage.

  • Fast 33Hz continuous refresh rate ensures ultra-low 30ms latency for urgent collision warnings
  • Intelligent target clustering filters false echoes while maintaining high sensitivity to moving pedestrians
  • High velocity resolution of 2 km/h across a wide ±60 km/h dynamic measurement range
CAN Bus and RS485 Fleet Telematics Integration
Seamless Vehicle Architecture

High-Speed CAN Bus & 4-Channel Alarm I/O Telematics Integration

Designed as a plug-and-play telematics node, the R360 control box interfaces seamlessly with vehicle CAN networks, mobile DVRs, fleet management terminals, and external warning sirens.

  • Configurable CAN bus baud rates: 250 kbps, 500 kbps (factory default), and 1 Mbps
  • RS485 serial communication for direct telemetry data output to cabin display terminals
  • 4 dedicated hardware I/O triggers for activating external strobes, audio alarms, or recording tags
IP67 All-Weather Rugged Industrial Enclosure
Heavy-Duty Reliability

All-Weather IP67/IP65 Sealing with -40℃ to +85℃ Industrial Range

Unlike optical cameras that fail in heavy rain, dust clouds, fog, or nighttime glare, 77GHz millimeter-wave radar waves penetrate extreme industrial atmospheres with zero degradation in detection precision.

  • IP67-rated radar sensors resist high-pressure water washing, mud spray, and heavy vibration
  • Wide input operating voltage (DC 12V～32V) protects against alternator load dumps and voltage spikes
  • Automotive-grade components operate reliably in ambient extremes from -40℃ up to +85℃
Modular Fleet Upgrades

Supported Modular Peripherals & Options

Expand the R360 system from standalone radar sensing into a unified audio-visual radar safety suite.

🖥

7-Inch In-Cab Visual/Audio Display

Compact in-cab monitor displaying real-time 4-channel zone distance indicators, color-coded proximity zones, and audible alarm speaker.

💻

10-Inch HD All-in-One Touch Terminal

High-definition commercial dashboard monitor supporting high-resolution split-screen viewing and radar overlay telemetry graphics.

📹

1080P Full HD Blind Spot Cameras

Integrate up to 4 AHD/IPC video cameras alongside the 4 radar channels for synchronized radar-visual collision verification.

🔌

10m Heavy-Duty Radar Extension Cables

Optional 10m shielded industrial harness upgrade replacing standard 5m cables for long-wheelbase mining trucks and articulated haulers.

📺

5m & 10m Aviation Video Cables

Shielded 4-pin aviation connector extension cables with threaded waterproof seals for rugged video signal transmission.

⚙

Central Radar Processing Hub

Standard 12–32V central control box with 4 I/O triggers, RS485 output, and CAN bus integration hub for mobile DVR integration.

Deployment Scenarios

Recommended Vehicle Applications

Field-proven 4-channel radar protection tailored for demanding commercial fleets and heavy equipment.

🚛

Mining Dumpers & Heavy Haulers

Large off-highway mining trucks suffer from massive right-hand and rear blind zones. R360 provides 100m forward and 40m perimeter radar detection through thick dust clouds.

🚚

Articulated Semis & Trailers

Protects tractor-trailer combinations during tight intersection turns and highway lane merges with dual-flank 110° radar beam coverage.

🚧

Construction Excavators & Loaders

Prevents tail-swing collisions and worker crush accidents on busy construction job sites regardless of adverse weather or low light.

🚌

Municipal Transit & Coaches

Shields passengers, cyclists, and pedestrians in dense urban traffic, providing rapid audible and visual warnings to bus drivers.

🗑

Waste Collection & Street Sweepers

Frequent stopping and tight alley maneuvering require dependable flank and rear radar detection that resists dirt, mud, and water jets.

🏗

Port Terminals & Heavy Logistics

Terminal tractors and container reach stackers operating around high-density storage yards gain 360-degree perimeter obstacle awareness.

Customer Inquiries

Frequently Asked Questions

Clear engineering answers regarding R360 system architecture, installation, and fleet telematics.

How does 77GHz millimeter-wave radar outperform ultrasonic or optical sensors?
Unlike ultrasonic sensors which have short operating ranges (typically 0.3m to 3.0m) and slow refresh cycles, 77GHz millimeter-wave radar provides up to 100m obstacle detection and 40m pedestrian coverage with high range and velocity resolution. Furthermore, unlike optical cameras, radar is completely immune to rain, fog, dust, dirt accumulation, and ambient lighting extremes.
Can R360 interface with our third-party Mobile DVR or Fleet Management System?
Yes. The R360 central control box features configurable high-speed CAN bus communication (supporting 250 kbps, 500 kbps default, and 1 Mbps) as well as RS485 serial data output. Additionally, 4 hardware alarm I/O ports provide dry contact triggers directly compatible with third-party MDVR alarm inputs, buzzers, and flashing strobe lights.
How does the system prevent false alarms caused by stationary ground clutter?
The R360 utilizes narrow vertical beam shaping (-5° to +5° elevation) to prevent spurious ground reflections, combined with advanced FFT signal processing and dynamic target clustering. The system discriminates between static road features and dynamic obstacles, outputting trajectories for up to 64 verified targets simultaneously.
What are the recommended mounting heights and angles for the 4 radar sensors?
For optimal detection, radar sensors are typically mounted between 0.6m and 1.5m above ground level, aligned perpendicular to the intended detection sector. For front and rear protection, sensors are centered or placed at corners; for side blind spots, sensors are mounted midway along the vehicle body. Detailed calibration guidelines and bracket angles are provided in the installation manual.
What warranty and factory support does AlwayCare provide for the R360?
AlwayCare backs the R360 with a comprehensive 15-month factory warranty manufactured under IATF 16949 automotive quality management standards. Full technical support, wiring harnesses, CAN protocol documentation, and firmware customization options are available for fleet operators and OEM partners.
