Home / All / ADAS (Anti-Collision System) / MR910-A 4-Channel AI MDVR with ADAS

MR910-A 4-Channel AI MDVR with ADAS

Share
Categories	ADAS (Anti-Collision System)
Brand	AlwayCare Commercial Fleet Safety Manufacturer
Product Specifications	MR910-A
Voltage	12/24V
Video Record Resolution	1920x1080
Satellite Positioning	Support GPS and BD (Beidou) dual-mode positioning
Optional	I/O or RS232
Wireless Communication	4G and WiFi
Storage	2 SD cards, up to 512GB each
Video Encoding	H.264/H.265
Application	Suitable for All Vehicles
Operating Temperature	-20℃ ~ 70℃
Warranty	15 Months

MR910-A is a 4-channel AI MDVR with ADAS road warnings, 4G, GPS, WiFi and dual SD card storage up to 512GB each.

Contact Now

Add to Wishlist

Detail Information

Mobile DVR · ADAS Edition

MR910-A ADAS with 4-Channel MDVR

MR910-A

MR910-A combines ADAS road-risk warnings with four-channel recording, GPS/BeiDou and 4G and Wi-Fi fleet monitoring. Alerts go to the driver only; the system does not control the vehicle.

Recording1920×1080

Wireless4G and Wi-Fi

PositioningGPS + BeiDou

Storage2 SD cards, up to 512GB each

Power12/24V

Operating temp.−20℃ to 70℃

Get a Quote Request a Sample

↓ Request datasheet

15-month warranty
IATF 16949 certified factory
OEM / ODM customization
Suitable for all vehicles

Final configuration (AI package, cameras, interfaces) is confirmed in your quotation.

Overview

What MR910-A Delivers

A 4-channel mobile DVR with AI alerts, GPS and 4G in one unit.

Road warnings · ADAS

Warns the driver of forward risks

A forward camera raises forward collision, lane departure, headway and pedestrian warnings. Alerts go to the driver only; the system does not control the vehicle.

FCW forward collision warning
LDW lane departure warning
HMW headway warning
PCW pedestrian collision warning

Multi-channel recording

Four AHD cameras and one IPC channel

Record the road, the sides and the rear in one unit, with H.265 / H.264 encoding.

4 AHD inputs, 1080P / 960P / 720P / D1
1 IPC digital channel
SD card up to 512GB
CVBS video output

Connect

Vehicle interfaces and 4G

I/O inputs, RS232, RS485 and USB connect sensors, triggers and displays. 4G and Wi-Fi and GPS/BeiDou link the unit to the platform.

I/O, RS232 and RS485
Locking connectors and SMA antenna ports
Key-lock protected card slot
Live view and alarm clip upload

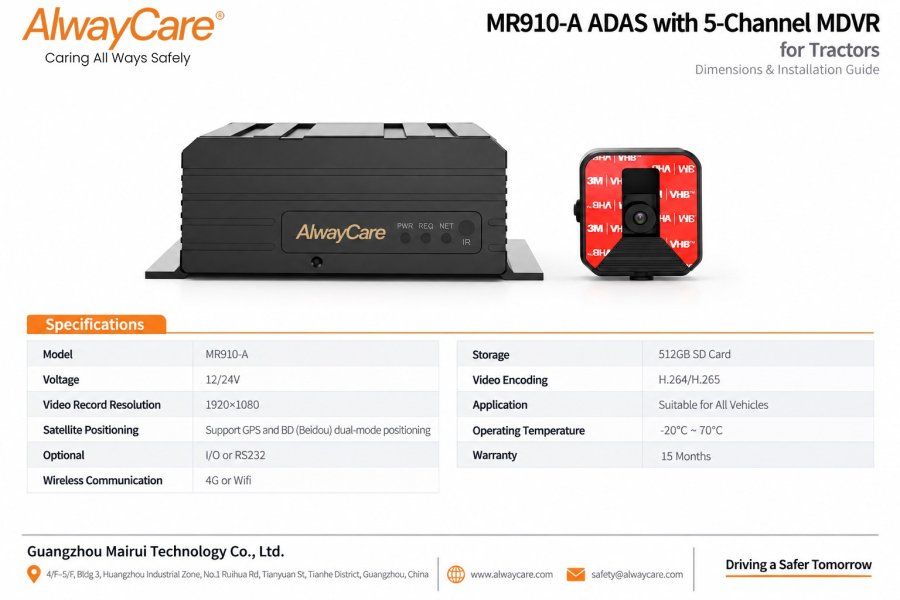

Drawing

Specification drawing

Dimensions, wiring and interfaces for installation planning.

Engineering drawing
Wiring guidance on request
12/24V input
Operating temperature −20℃ to 70℃

Series

MR910 Series Models

Compare MR910-A with the other MR910 recorders. Each model has its own page.

Model	Video channels	AI function	Storage
MR910-D	4	DMS	2 SD cards, up to 512GB each
MR910-Athis page	4	ADAS	2 SD cards, up to 512GB each
MR910-DA	4 channels	DMS + ADAS	2 SD cards, up to 512GB each
MR910-BSD	4 channels	BSD	2 SD cards, up to 512GB each

Specifications

Technical Specifications

Values follow the factory datasheet. Your quotation confirms the exact configuration.

AI safety engine

ADAS warnings (4): FCW forward collision, LDW lane departure, HMW headway, PCW pedestrian collision
Alert mode: Voice alert to the driver; the system does not control the vehicle

Video and storage

Video resolution: 1920×1080
Video inputs: 4 AHD channels (1080P / 960P / 720P / D1) + 1 IPC channel
Video output: 1-channel CVBS; VGA optional
Encoding: H.265 / H.264
Local storage: SD card, up to 512GB

Connectivity and interfaces

Wireless: 4G and Wi-Fi
Positioning: GPS and BeiDou dual-mode
Interfaces: I/O inputs and output, RS232, RS485, USB, RJ45 (I/O or RS232 optional)
Audio: 1 microphone input with two-way intercom, 1 audio output

Power and hardware

Voltage: 12/24V
Operating temperature: −20℃ to 70℃
Enclosure: Aluminium alloy case with cooling fins
Warranty: 15 months

Need the full engineering datasheet?Request the datasheet →

Compatible Peripherals

DMS camera

An interior camera for driver monitoring on DMS versions.

ADAS forward camera

A windshield-mounted forward camera for ADAS versions.

BSD camera (CC1004-BSD)

A companion AI blind-spot camera that connects to the recorder. See its own page for specifications.

SD memory card

High-endurance SD cards for continuous loop recording.

Warning peripherals

Speaker, vibrating cushion, warning LED and in-cab displays such as DP210, DP230 and DP270.

CMS platform

Live view, playback, alarm clips and route replay on the AlwayCare platform.

Downloads

Documents

Files that exist for this model can be downloaded. The others are available from our engineers on request.

Product datasheetOn request

Request

Certificates and test reportsOn request

Request

User manual and installation guideOn request · provided with sample orders

Request

CMS platform softwareOn request · authorization confirmed in your quotation

Ask us

FAQ

Frequently Asked Questions

Need technical clarification? Email safety@alwaycare.com or send an inquiry.

Which ADAS functions are included?

MR910-A provides FCW, LDW, HMW and PCW warnings. It is a warning system only and does not control the vehicle.

Which video channels and cameras are supported?

Four AHD inputs supporting 1080P, 960P, 720P and D1 cameras plus one IPC channel. They can cover the cab, the road ahead, side blind zones and the cargo or reversing area.

How is local storage handled?

Video records to SD cards up to 512GB. The front panel has a key-lock cover that protects the card and SIM slots from removal. Confirm the slot configuration in your quotation.

What wireless and platform functions are included?

The unit has 4G and Wi-Fi, GPS and BeiDou positioning. On the CMS platform you can use live view, alarm clip upload and route replay.

Which interfaces are available?

CVBS video output, I/O trigger inputs for turn signals and reverse, an I/O alarm output, USB, RS232, RS485 and an RJ45 port. A VGA video port can be selected instead of the RJ45 port.

Which warranty applies?

The MR910 series is supplied with a 15-month quality warranty. Confirm service terms in your quotation.
