AI object alerts
The current body lists pedestrian, vehicle and animal detection for configured blind zones.

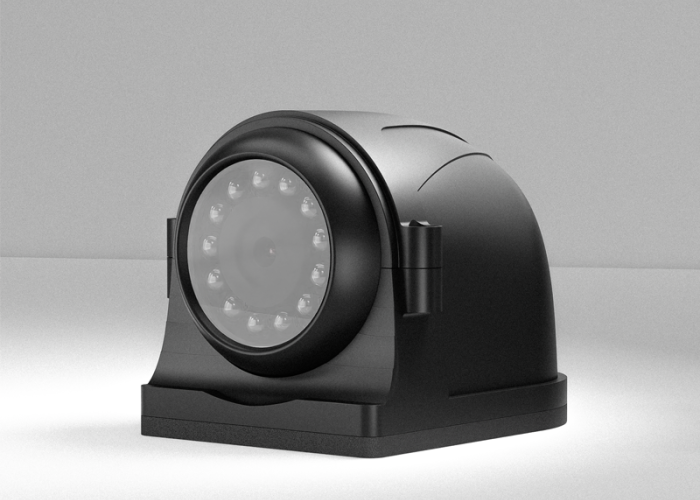

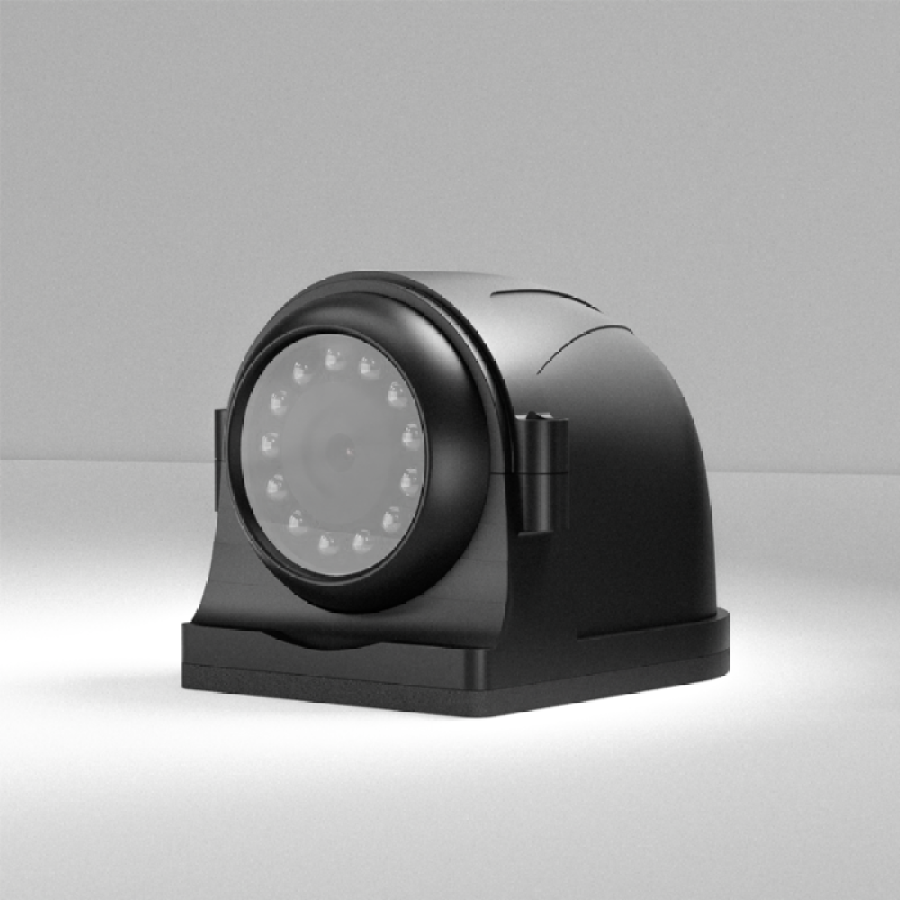

CC1004-BSD Blind Spot Detection Camera for Fleets
Detail Information
CC1004-BSD · BSD camera
What is CC1004-BSD?
CC1004-BSD is a 12V, 1080p AI camera for blind-zone detection around commercial vehicles. The current body lists pedestrian, cyclist, e-bike, vehicle and animal detection, starlight night imaging and external sound/light alarm support; final performance depends on placement, calibration and the connected alarm system.
Buyer overview
Four points to evaluate first
External warning support
Sound and light alarm output is listed for compatible warning devices.
Night imaging
The body describes starlight full-color use at night.
1080p camera baseline
Structured data lists 1920×1080 definition and 12V input.
System fit
Plan cameras, warnings and receiving equipment together
Define vehicle zones, cameras, detection or stitching functions, display or recorder, alarms, power, storage, network and driver workflow before installation.
Detection and view decision
Map target zones, camera overlap, object types, warning thresholds, night conditions and possible obstructions.
Integration decision
Confirm channels, signal, connectors, alarm outputs, power protection, storage, calibration and platform scope.
Current structured record

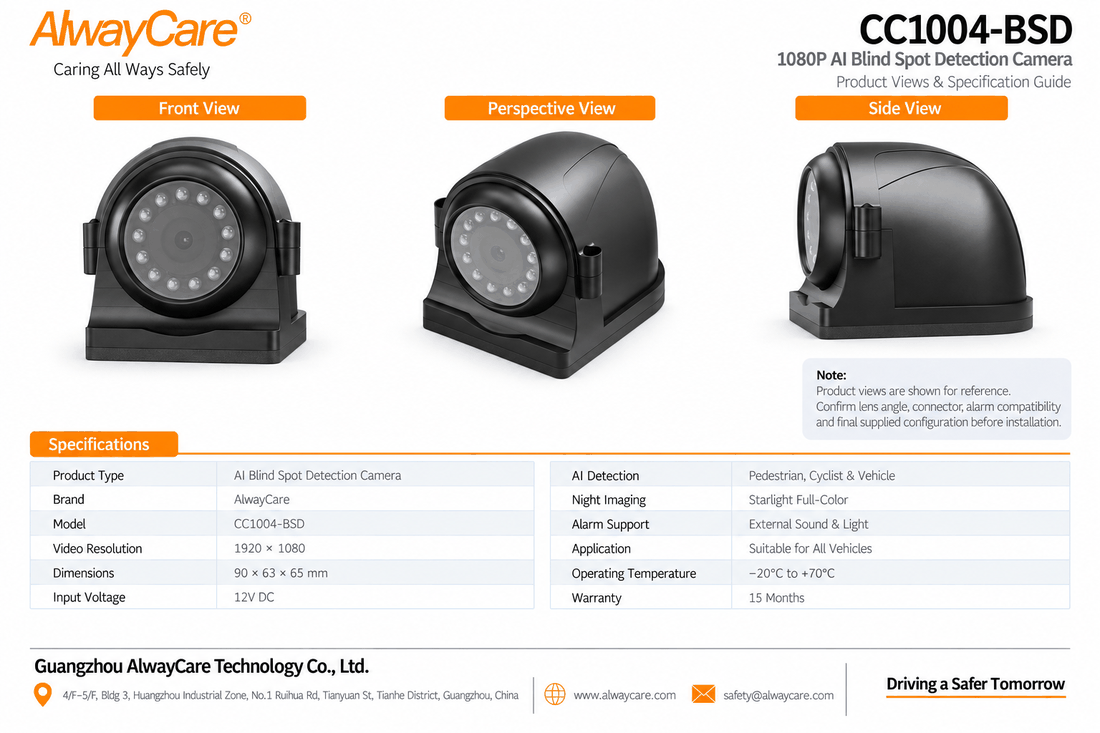

Technical specifications
| Voltage | 12V |
|---|---|
| Definition | 1920x1080 |
| Size | 90x63x65mm |
| Application | Suitable for All Vehicles |
| Operating Temperature | -20℃ ~ 70℃ |
| Warranty | 15 Months |
Use the structured record as the current baseline. Conflicts with older body copy are disclosed below.
Preserved from the original page
Existing Product and Deployment Views
Existing product video
See the current system demonstration
Commissioning planning
Validate the system on the actual vehicle
Test camera coverage, calibration, object detection, stitched views, alert timing, night conditions, storage and driver response before fleet rollout.
Example applications
Where CC1004-BSD may fit
Truck side blind zones
Set the camera angle and detection region around the specific body and mirror layout.
Bus turning awareness
Use external sound/light alerts only after defining safe thresholds and driver procedures.
Fleet retrofit projects
Validate power, video output, alarm wiring, waterproofing, mounting and calibration on the actual vehicle.
Safety and specification boundary
CC1004-BSD provides detection warnings only. It does not brake or steer the vehicle and cannot guarantee recognition of every road user. IP69K, shockproof, 160° view and full-color night performance appear in the existing body but not structured attributes; confirm documentation and the supplied lens. Detection depends on mounting, calibration, obstruction, weather, lighting and target conditions.
Buyer questions
CC1004-BSD FAQ
Which objects are listed for detection?
The current body lists pedestrians, vehicles and animals, with examples including cyclists and e-bike riders.
Can it drive an external alarm?
The existing body lists support for external sound and light alarms; confirm output and device compatibility.
What resolution is listed?
Structured data lists 1920×1080.
Is the 160° angle confirmed?
The body lists 160°, but it is not a structured attribute. Confirm the supplied lens and useful detection area.
Does it eliminate blind spots?
No. It adds a warning input but does not replace mirrors, direct observation or safe driving procedures.
What should be validated during commissioning?
Validate placement, detection zones, alert timing, false-alert behavior, night performance, alarm wiring and driver response.
Confirm the complete vehicle system
Share your vehicle, risk zones and required workflow
AlwayCare can review camera layout, detection or stitching functions, alarms, recorder or display, storage, network and installation requirements.
