MR830 All-in-One DMS with ADAS, BSD and Driver Fatigue Alerts

MR830 All-in-One DMS with ADAS, BSD and Driver Fatigue Alerts
MR830 All-in-One DMS with ADAS, BSD and Driver Fatigue AlertsMR830 All-in-One DMS with ADAS, BSD and Driver Fatigue AlertsMR830 All-in-One DMS with ADAS, BSD and Driver Fatigue AlertsMR830 All-in-One DMS with ADAS, BSD and Driver Fatigue Alerts
Share
CategoriesDMS (Driver Monitoring System)
BrandAlwayCare Commercial Fleet Safety Manufacturer
ModelDMS-MR830
Voltage12/24V
Video Record Resolution1920x1080
Satellite PositioningSupport GPS and BD (Beidou) dual-mode positioning
OptionalI/O or RS232
Wireless Communication4G or Wifi
Storage512GB TF Card

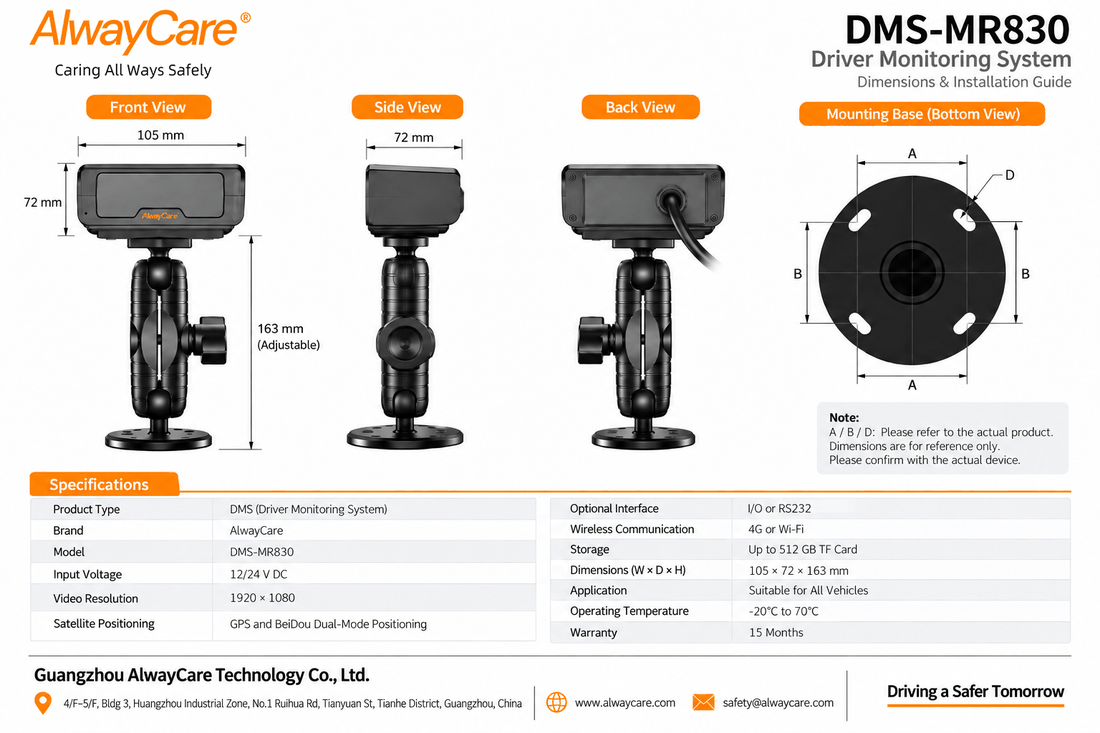

Size105*72*163mm
ApplicationSuitable for All Vehicles
Operating Temperature-20℃ ~ 70℃
Warranty15 Months
MR830 all-in-one DMS combines driver alerts, 1080p recording and optional ADAS, BSD, 4G and fleet-platform functions.
Contact Now
Add to Wishlist
Detail Information
MODEL: MR830

MR830-APB DSM + ADAS + BSD Fleet Safety System

Driver-state monitoring, forward-road warnings, blind-zone detection, GPS/4G connectivity and one additional camera input for commercial fleets.

Inquire Download Datasheet
15 Months Warranty IATF 16949 Factory Ships to 50+ Countries

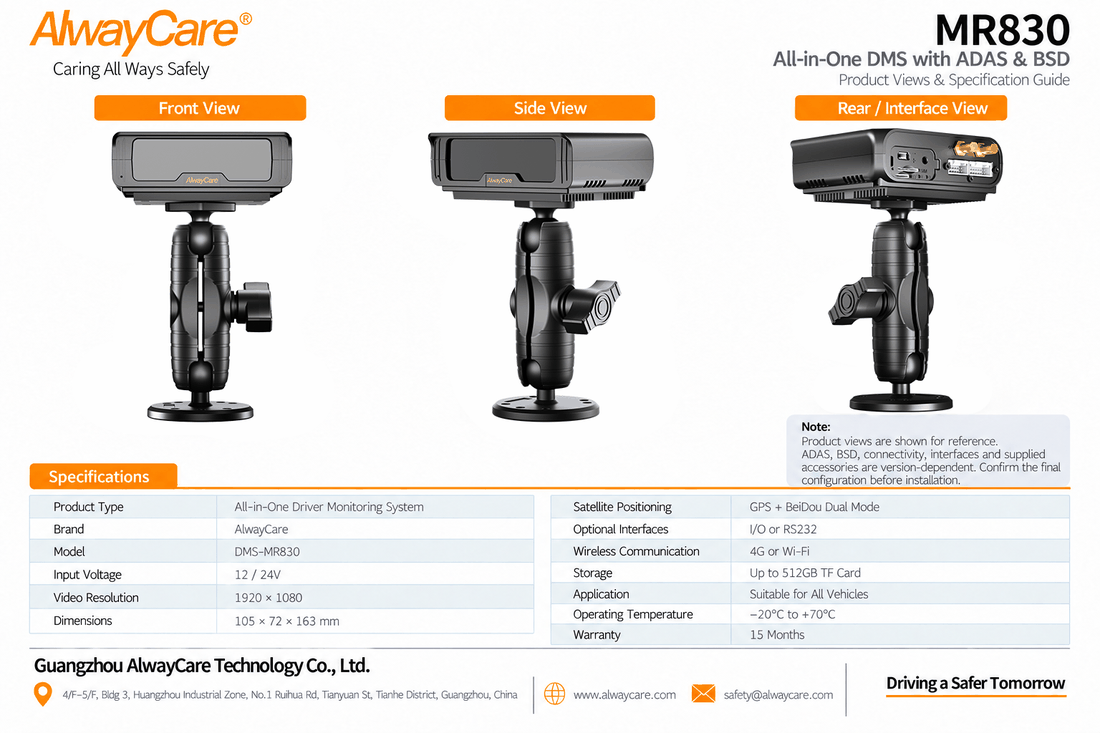

MR830 All-in-One DMS with ADAS, BSD and Driver Fatigue Alerts — product view 1 MR830 All-in-One DMS with ADAS, BSD and Driver Fatigue Alerts — product view 2 MR830 All-in-One DMS with ADAS, BSD and Driver Fatigue Alerts — product view 3
Technical Data

Technical Specifications

Values follow the factory datasheet — your quotation confirms the exact configuration.

ModelMR830-APB Version
Core AlgorithmsDSM + ADAS + 1-channel BSD
Video Inputs4 channels total: DSM camera, ADAS camera, BSD camera and 1 additional 1080P/960P/720P universal camera
DSM AlertsFatigue, yawning, distraction, no portrait, smoking, calling, overspeed, driver change, infrared blocking, camera blocking, camera failure, no mask, driver ID and no seatbelt
ADAS AlertsFCW, LDW, HMW and PCW
BSD FunctionOne-channel blind-zone monitoring for pedestrians and non-motor vehicles; selected side or vehicle position is confirmed in the configuration
ConnectivityGPS and 4G; country-specific 4G module by default, global module optional at an additional USD28/set
Storage1 TF card up to 512GB for regular videos, alarm pictures and alarm videos
Platform ScopeCMS platform authorization included in the standard components; platform software cost is not included and is optional at USD15/set
Optional AudioAudio input and voice intercom for the DSM camera, USD4/set
Warranty15 months

Version Matrix

MR830-APB Quoted VersionDSM + ADAS + 1-channel BSD with GPS/4G, platform authorization and one additional camera inputMR830-APB
Camera ScopeDSM camera + ADAS camera + BSD camera + 1 universal 1080P/960P/720P camera4 video inputs
Platform BoundaryCMS platform authorization is listed in the standard components; platform software is excluded unless purchasedOptional +USD15/set
Connectivity BoundaryCountry-specific 4G module is standard; a global communication module is an extra-cost optionOptional +USD28/set
Audio BoundaryDSM audio input and driver-center voice intercom are not standardOptional +USD4/set

Functions Common to the MR830 Range

DSM Alarm Types (14)Fatigue · Yawning · Distraction · No portrait · Smoking · Calling · Overspeed · Driver change · Infrared blocking · Camera blocking · Camera failure · No mask · Driver ID identification · No seatbelt
ADAS Warning TypesForward Collision Warning (FCW) · Lane Departure Warning (LDW) · Front Vehicle Warning (HMW) · Pedestrian Collision Warning (PCW)
BSD ScopeOne-channel BSD detects pedestrians and non-motor vehicles entering the blind area; the monitored side or vehicle position is selected according to the vehicle layout.
CMS Platform FunctionsReal-time vehicle position · Driving track · Remote live video monitoring · Remote video playback · Alarm query and statistics · Remote parameter setting · Prohibited-area reminder · Route-deviation reminder · Dynamic post-check with driver-face database comparison · TTS voice broadcast from platform text
Other Functions1 TF card up to 512GB · 4 video inputs · Mobile app for installation, debugging, equipment upgrade and alarm-parameter settings · Local storage of regular videos, alarm pictures and alarm videos

Optional Enhanced Functions

Customized Alarm LanguageEnglish is standard. Within 10 sets, customized alarm language adds USD20/set; over 11 sets, the fee is free.
Audio Input and Voice Intercom1-channel DSM audio input and driver-center voice intercom, USD4/set
Product Highlights

What MR830 Delivers

A compact fleet-safety system combining driver-state monitoring, forward-road warnings, blind-zone detection and connected vehicle operations.

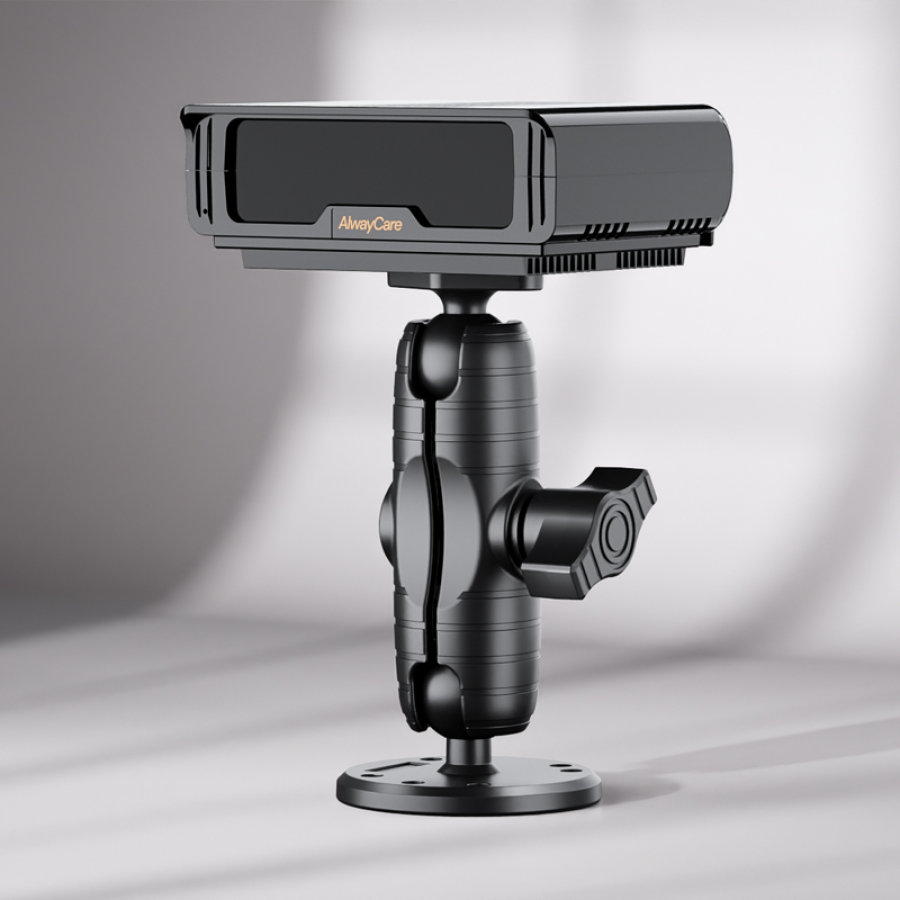

Driver State Monitoring - MR830-APB DSM ADAS BSD Fleet Safety System

Driver State Monitoring

14 DSM alarm types

  • Behavior alerts: Detect fatigue, yawning, distraction, smoking, calling, overspeed and driver change.
  • Camera-state alerts: Monitor infrared blocking, camera blocking and camera failure.
  • Identity and safety: Support driver ID identification, no-portrait, no-mask and no-seatbelt alarms.

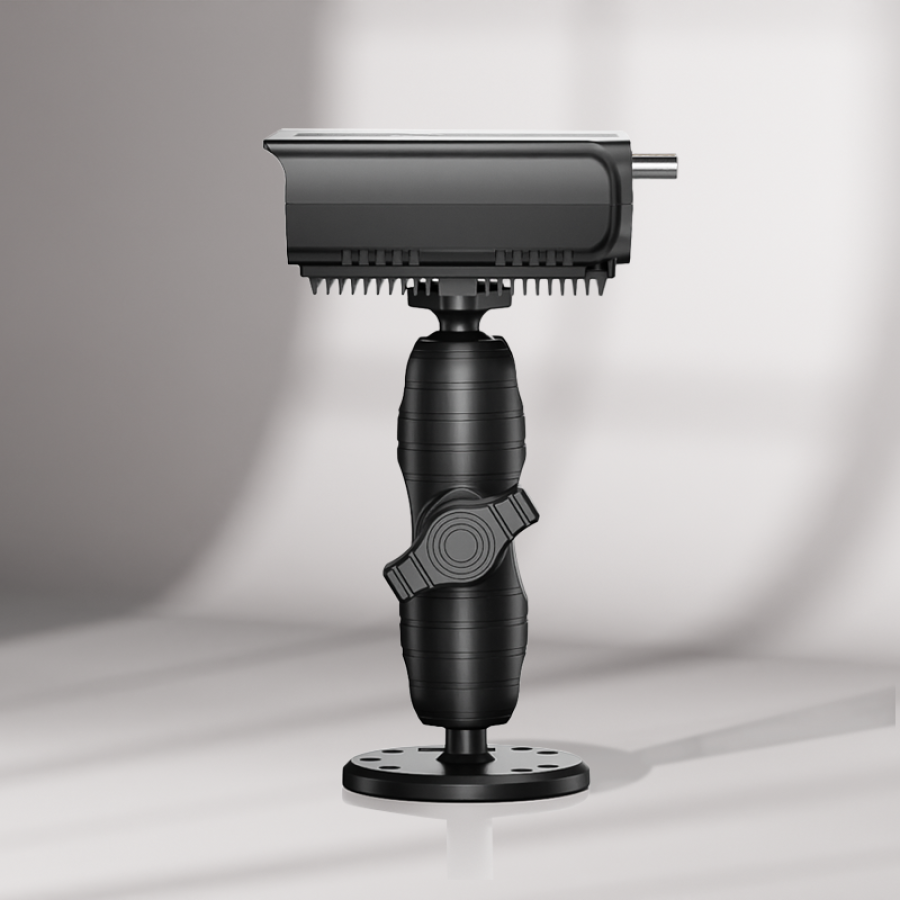

ADAS and BSD Road Awareness - MR830-APB Fleet Safety System

ADAS + BSD Road Awareness

FCW + LDW + HMW + PCW + 1-channel BSD

  • ADAS: Warn about forward collision, lane departure, front-vehicle approach and pedestrian collision risks.
  • BSD: Monitor one selected blind-zone position for pedestrians and non-motor vehicles.
  • Voice reminder: Local alarms help remind the driver during vehicle operation.

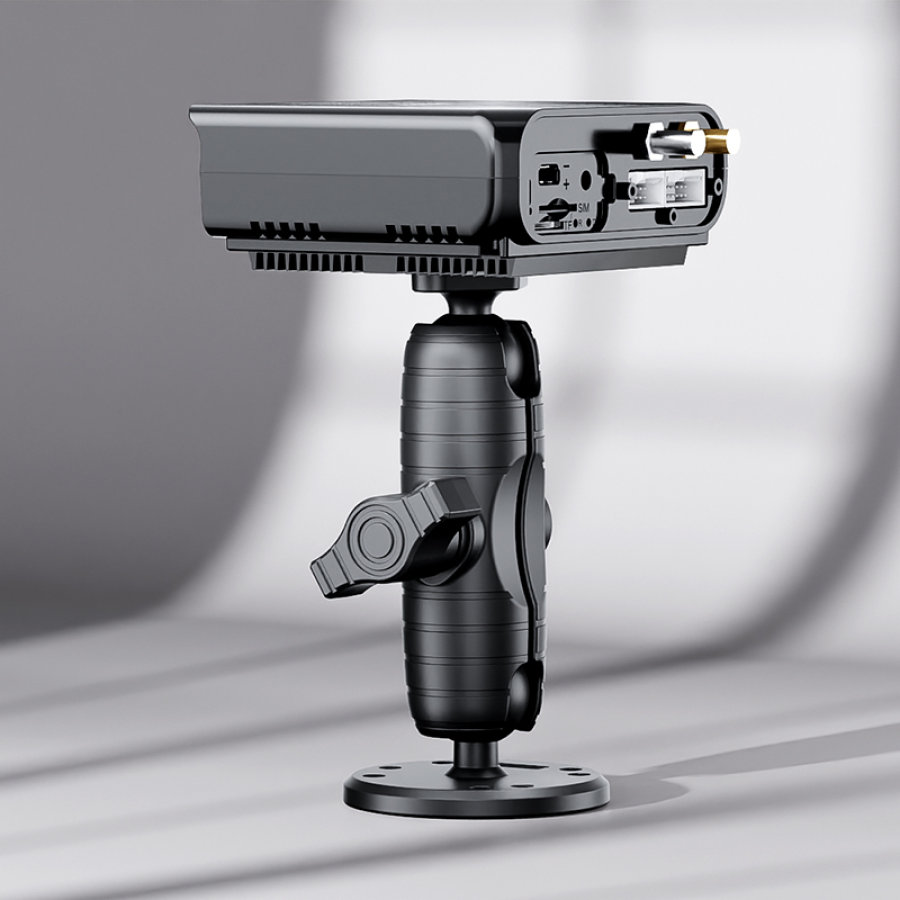

4-Channel Video and TF Storage - MR830-APB Fleet Safety System

4-Channel Video and 512GB TF Storage

DSM + ADAS + BSD + 1 universal camera

  • Additional camera: Connect one 1080P, 960P or 720P universal camera for front, rear, side or cabin monitoring.
  • Local evidence: Store regular videos, alarm pictures and alarm videos on one TF card up to 512GB.
  • App support: Install, debug, upgrade and configure alarm sensitivity, activation speed and volume from the mobile app.

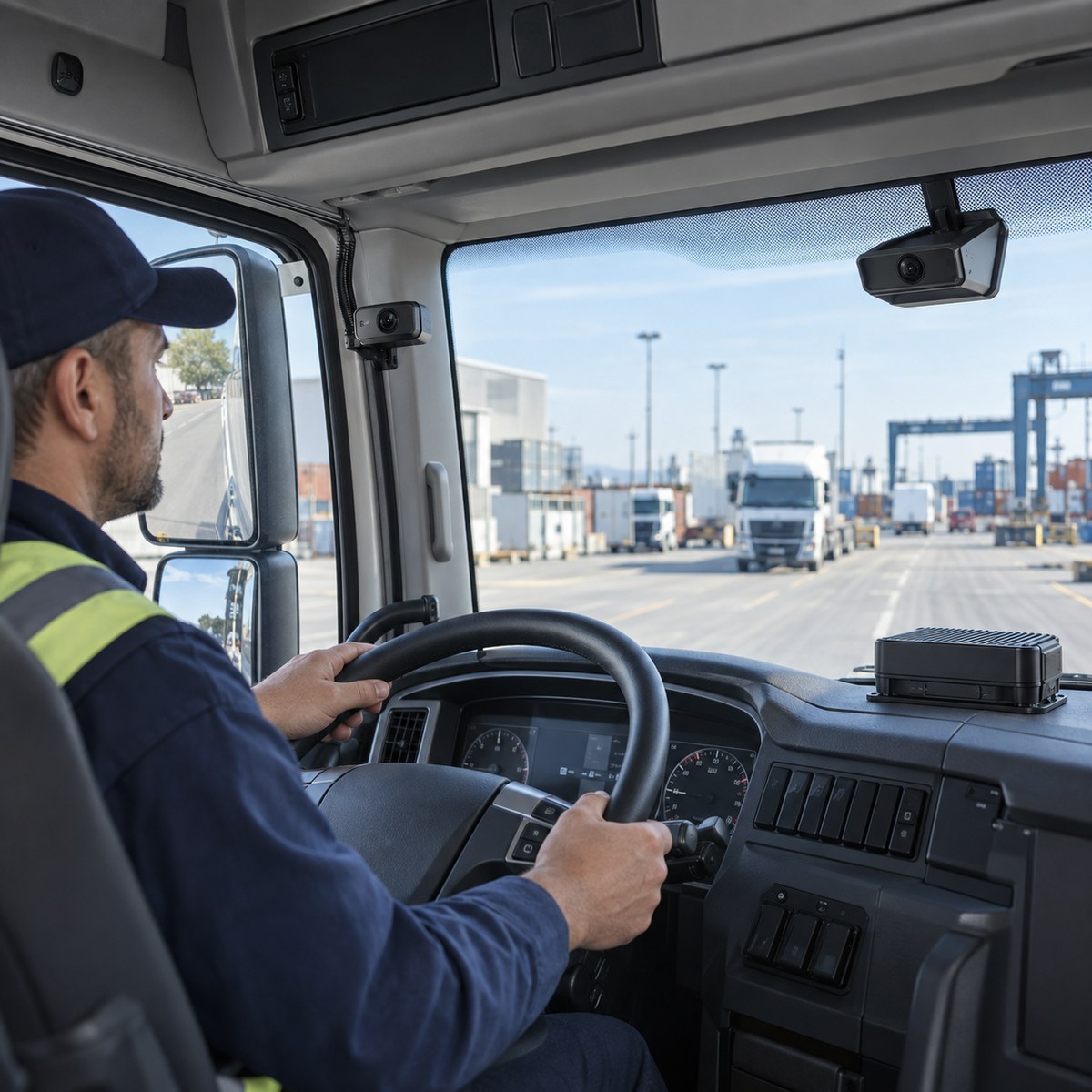

Platform-connected MR830-APB fleet safety operations in a commercial truck cab

Platform-Connected Fleet Operations

GPS + country-specific 4G + CMS authorization

  • CMS functions: Query alarms, view alarm pictures and videos, monitor vehicles remotely and review tracks.
  • Platform controls: Support remote parameters, prohibited-area reminders, route-deviation reminders and TTS voice broadcast.
  • Configuration boundary: Platform software is not included; global 4G and DSM voice intercom are optional upgrades.
Applications

Where MR830 Fits

Designed for commercial fleets that need driver-behavior alerts, road-risk warnings, blind-zone awareness and connected review.

MR830-APB application for logistics and distribution fleets

Logistics and distribution

Combine DSM behavior alerts, ADAS warnings, one-channel BSD and platform review for delivery operations.

  • Fatigue and distraction alerts for long-haul and regional routes.
  • Additional universal camera for rear, side or cabin coverage.
  • GPS/4G platform review for alarms, videos and tracks.
MR830-APB application for mining and hazardous-material fleets

Mining and industrial fleets

Use driver-state monitoring and blind-zone warnings in high-risk mining, industrial and hazardous-material operations.

  • BSD coverage for one selected side or blind-zone position.
  • Local TF storage keeps regular and alarm video evidence.
  • Route and prohibited-area reminders support platform supervision.
MR830-APB application for bus and coach fleets

Bus and coach fleets

Support driver behavior monitoring, passenger-vehicle safety and optional intercom workflows.

  • DSM safety alarms for fatigue, phone use, smoking, no seatbelt and driver change.
  • Optional DSM audio for platform playback and two-way voice intercom.
  • Camera planning for forward, rear, side or cabin monitoring.
Product Video

See MR830 in Context

The official AlwayCare MR830 product video showing the system in vehicle-operation use.

Why AlwayCare

Built for Long-Term Fleet Programs

Factory Direct Supply

Devices ship from our own production line, with engineering support from the team that builds them.

Integrated Fleet Safety

Combine DSM, ADAS, BSD, GPS/4G connectivity, local evidence and platform review in one configured system.

15-Month Warranty

The quotation specifies a 15-month quality warranty for MR830-APB; confirm final service terms for the destination market.

OEM & Firmware Support

Logo, packaging, firmware behavior and interface customization for your market and fleet platform.

How It Works

From Inquiry to Delivery in Four Steps

A clear path from first contact to units running in your fleet — no obligation at the evaluation stage.

01

Share Your Requirements

Send fleet size, vehicle models and target functions through the inquiry form or to your account manager.

02

Version & Quotation

Our engineers map your needs to the right MR830 version and issue a formal quotation within one business day.

03

Sample Evaluation

Sample units are available for road testing before you commit to a bulk order — evaluate first, decide later.

04

Production & Delivery

Bulk orders ship with factory QC reports, export documents and the 15-month warranty from dispatch.

Technical Resources

Documents & Downloads

Everything your engineering and procurement teams need for evaluation.

PDF

Product Datasheet

Full specifications and ordering information — download the official MR830 datasheet (PDF).

Download Datasheet
On Request

Certificates & Test Reports

Certification and third-party laboratory reports for the selected version and target market.

Request Certificates
On Request

User Manual & Installation Guide

Wiring, mounting and configuration instructions — provided with sample orders.

Request Manual
On Request

CMS Platform Software

CMS platform authorization is listed in the standard components, while the platform software cost is separate at USD15/set if required.

Request Demo Access
Buyer Questions

Frequently Asked Questions

Can't find your answer? Our engineers reply within one business day — email safety@alwaycare.com or send an inquiry.

What is the MR830-APB version?

MR830-APB combines DSM, ADAS, one-channel BSD, GPS, a country-specific 4G module, one additional universal camera input and TF-card storage. It is designed for customers who need driver-behavior and road-environment monitoring with platform-based review.

Which DSM alarms are supported?

The listed DSM alarms include fatigue, yawning, distraction, no portrait, smoking, calling, overspeed, driver change, infrared blocking, camera blocking, camera failure, no mask, driver ID identification and no seatbelt.

Which ADAS and BSD functions are included?

ADAS includes FCW, LDW, HMW and PCW warnings. One-channel BSD monitors a selected blind-zone position for pedestrians and non-motor vehicles; the side or vehicle position is confirmed during configuration.

How many cameras can be connected?

The system supports four video inputs: the DSM camera, ADAS camera, BSD camera and one additional 1080P/960P/720P universal camera. The additional camera can monitor the front, rear, side or cabin.

Is the CMS platform software included?

CMS platform authorization is listed in the standard components, but the platform software cost is not included in the quotation. If platform software is required, the listed additional cost is USD15 per set.

What 4G configuration is supplied?

The default 4G communication module is country-specific. A global communication module applicable to all countries is available at an additional USD28 per set.

Does the system support voice intercom?

Audio input and driver-center voice intercom for the DSM camera are optional at USD4 per set. With this option, DSM video can include audio for TF-card recording, platform live view and playback.

What storage does MR830-APB use?

MR830-APB supports one TF card up to 512GB for regular videos, alarm pictures and alarm videos. Final card capacity and retention should be selected according to the vehicle duty cycle.

Which warranty applies?

MR830-APB is supplied with a 15-month quality warranty. Confirm the final service terms and destination-market coverage in the quotation.
