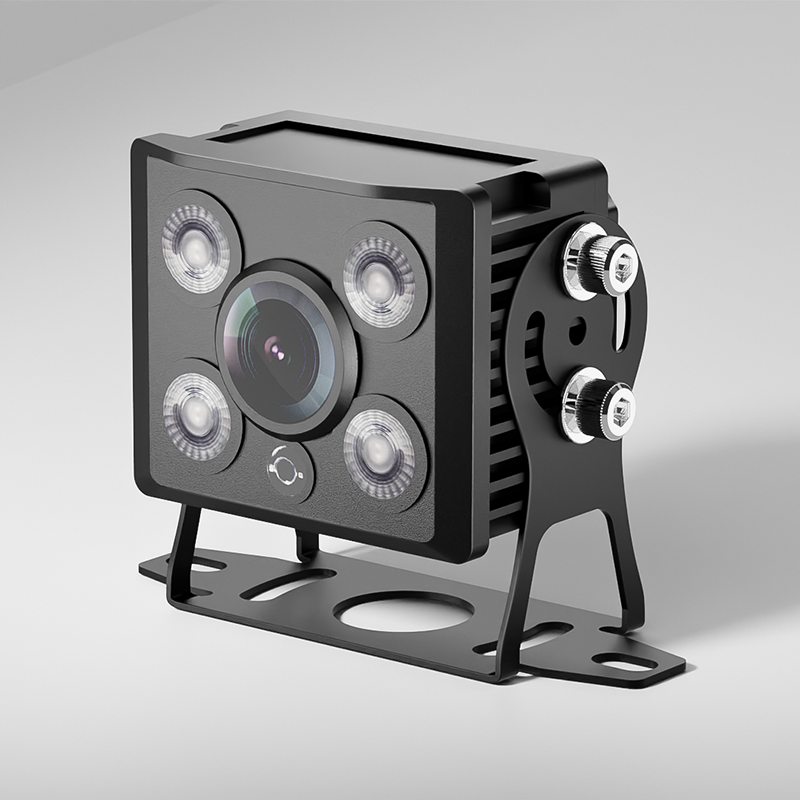

CC877-AHD20 IP68 140° Wide-Angle Vehicle Camera
| Share | |
|---|---|
| Categories | Vehicle Camera |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Model | CC877-AHD20 |
| Voltage | 12V |
| Definition | 1920x1080 |
| Material | Metal |
| Size | 53*35*54mm |
| Application | Suitable for All Vehicles |
| Operating Temperature | -30℃ ~ 75℃ |
| Warranty | 15 Months |
CC877-AHD20 IP68 140° Wide-Angle Vehicle Camera
IP68 140° wide-angle vehicle camera with 15m IR night vision and dual-bolt locking metal bracket.

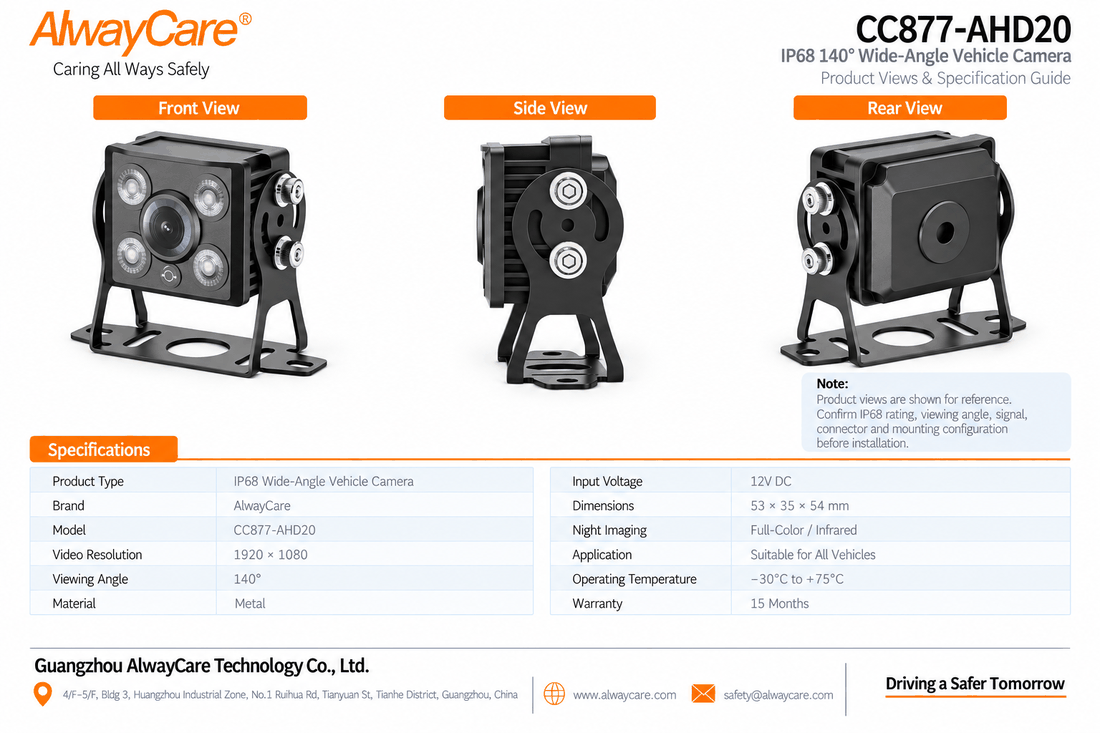

Technical Specifications
Values follow the factory engineering datasheet — your quotation confirms the exact configuration.
| Model | CC877-AHD20 (Wide-Angle Fleet Series) |
|---|---|
| Image Sensor | 1/2.9" 2.9 Megapixel Full-Color CMOS Sensor |
| Chipset & ISP Architecture | FH8536 DSP + GC2053 High-Sensitivity Sensor |
| Effective Resolution | 1920 × 1080 Full HD (1080P @ 25/30 fps) |
| Horizontal Field of View | 140° Ultra-Wide Horizontal Field of View |
| Optical Lens | 1.8mm / 1.6mm High-Clarity Wide-Angle Lens |
| Night Vision System | 4 High-Output Infrared LEDs (10m – 15m Illumination Range) |
| Night Vision Activation | Automated CDS Light-Sensor & Mechanical IR-Cut Filter |
| Ingress Protection Rating | IP68 Certified Waterproof & Dustproof (High-Strength Glass Face) |
| Video Output Signal | AHD 1080P High-Definition Video (4-Pin Aviation Output) |
| Operating Voltage | DC 12V ± 6% Automotive Fleet Input |
| Operating Current | 50mA – 110mA (IR OFF) / 180mA – 280mA (IR ON) |
| Enclosure Material | Heavy-Duty Cast Metal Housing with Dual-Bolt Locking U-Bracket |
| Dimensions | L53mm × W35mm × H54mm (Ultra-Compact Fleet Body) |
| Operating Temperature | -30°C ~ +75°C (-22°F ~ +167°F) |
| Storage Temperature | -40°C ~ +85°C (-40°F ~ +185°F) |
| Connectors | Threaded 4-Pin Aviation Locking Connector (Video + Power + Ground) |
| Fleet Monitor Compatibility | Optimized for Quad-Split / Octa-Split Monitors & Mobile DVRs |
| Quality Warranty | 18 Months Manufacturer Warranty |
Commercial Vehicle Camera Series Matrix
| CC877-AHD20 (This Model) | 1080P IP68 140° Wide-Angle Vehicle Camera — 140° wide horizontal field of view, 10–15m IR night vision with 4 high-output LEDs, FH8536+GC2053 DSP, ultra-compact 53×35×54mm metal enclosure. Engineered for commercial vehicle blind spot surveillance. | 1080P AHD | 140° Wide Angle | 15m IR | IP68 Metal |
|---|---|---|
| CC990 / CC990-AHD20 | 1080P IP68 Starlight Vehicle Camera — 0.01 Lux starlight full-color night vision, FH8536+GC2053 DSP, 2.8mm lens, IP68 cast metal chassis with visor brow. Designed for bus interiors, passenger observation, and rear fleet view. | 1080P Starlight | 2.8mm Lens | IP68 Metal | DC 12V |
| CC866-AHD20 | 1080P IP68 160° Ultra-Wide Angle Starlight Camera — Ultra-wide 160°~170° panoramic coverage, 1.6mm fisheye/wide lens, 0.01 Lux starlight color sensitivity, robust L72.6mm metal body for heavy trucks and trailers. | 1080P Starlight | 160° Ultra-Wide | 1.6mm Lens | IP68 Metal |
| CC998-AHD20 | 1080P Micro IP68 Dual-Mode Vehicle Camera — Ultra-miniature 30×26×30mm cube form factor, 155° diagonal FOV, 30m deep waterproofing, WiFi & AHD dual connectivity, 240mAh internal backup. Ideal for discreet monitoring and tight cab installs. | 1080P Micro Cube | 155° FOV | 30m Waterproof | WiFi/AHD |
| CC806-IPC400 | 4.0MP High-Definition IP Vehicle Network Camera — 4MP (2560×1440) resolution, 1/2.9" low-light CMOS, 24 IR LEDs, H.265AI/H.265+ high efficiency, RJ45 ONVIF network interface with alarm I/O. Engineered for digital IP MDVR bus networks. | 4MP IP Network | H.265+ | 24 IR LEDs | RJ45 ONVIF |
What CC877-AHD20 Delivers
140° wide-angle optical coverage and compact rugged chassis verified against factory datasheets.

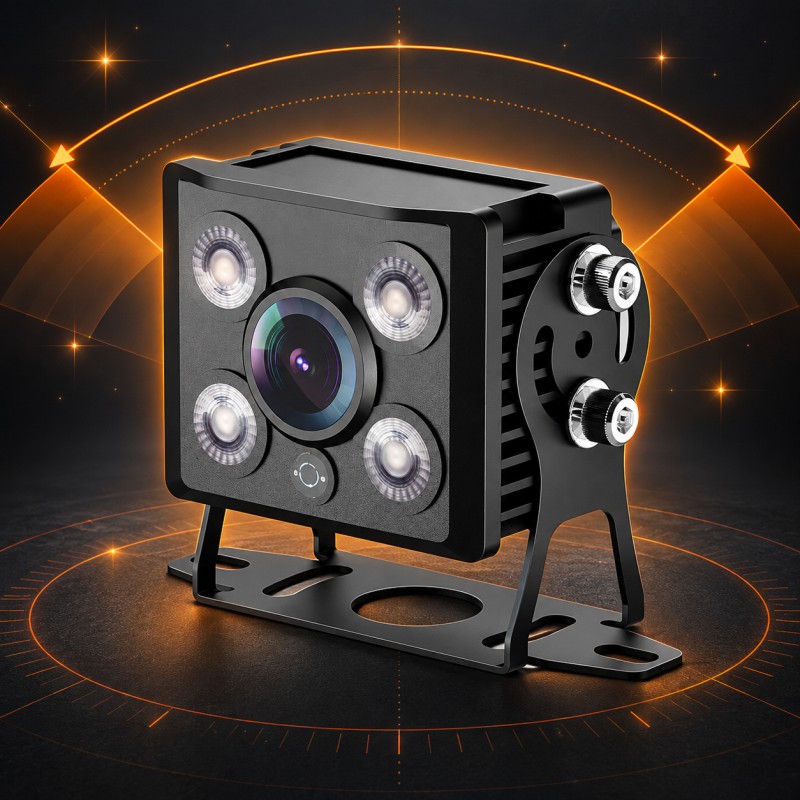

140° Ultra-Wide Angle Coverage & 4 High-Output IR LEDs
FH8536+GC2053 Architecture & 15m Night Vision
- 140° horizontal field of view: Engineered specifically to eliminate side and rear blind spots on delivery trucks, buses, and commercial fleet trailers.
- 4 high-output infrared LEDs: Delivers balanced 10m to 15m night vision illumination in zero-lux conditions without image overexposure or glare spots.
- 1080P Full HD sensor architecture: Combines the GC2053 high-sensitivity CMOS sensor with FH8536 DSP for clear vehicle, pedestrian, and obstacle identification.

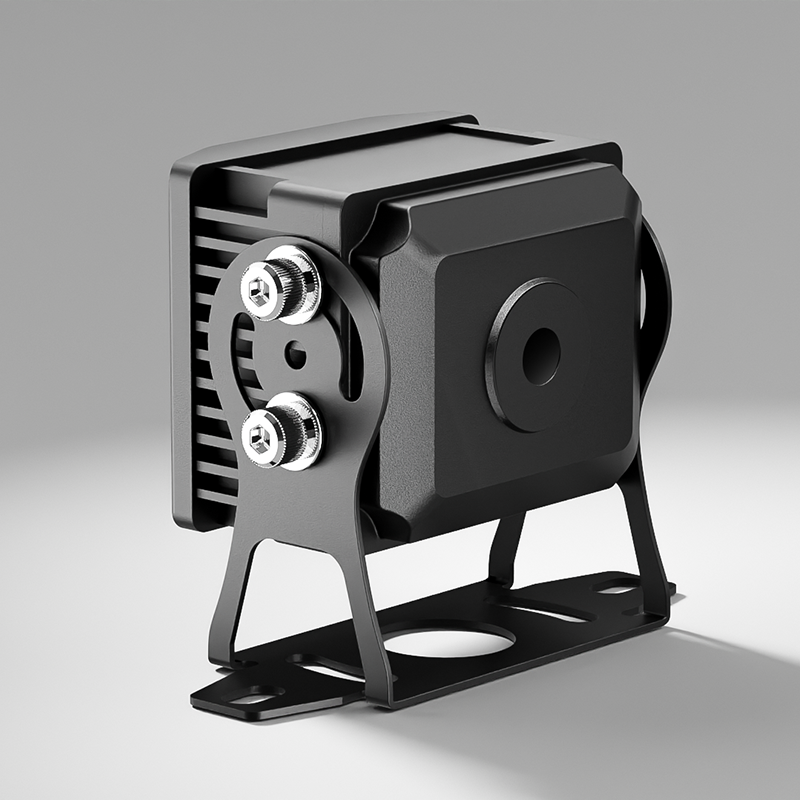

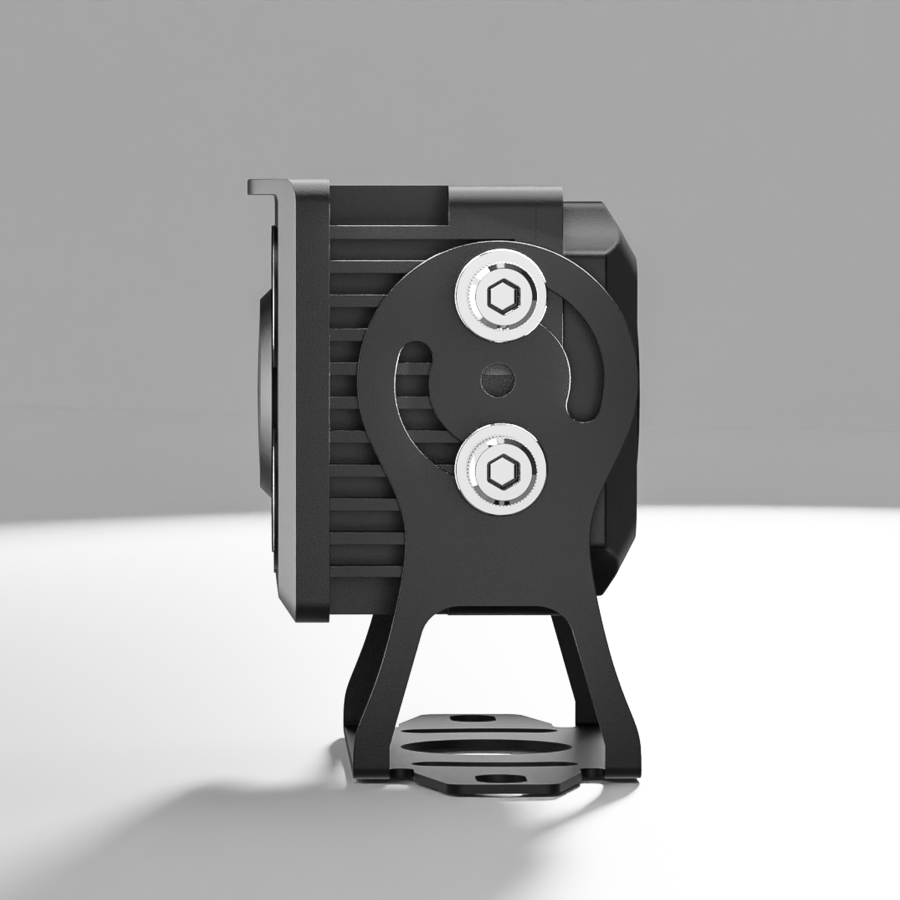

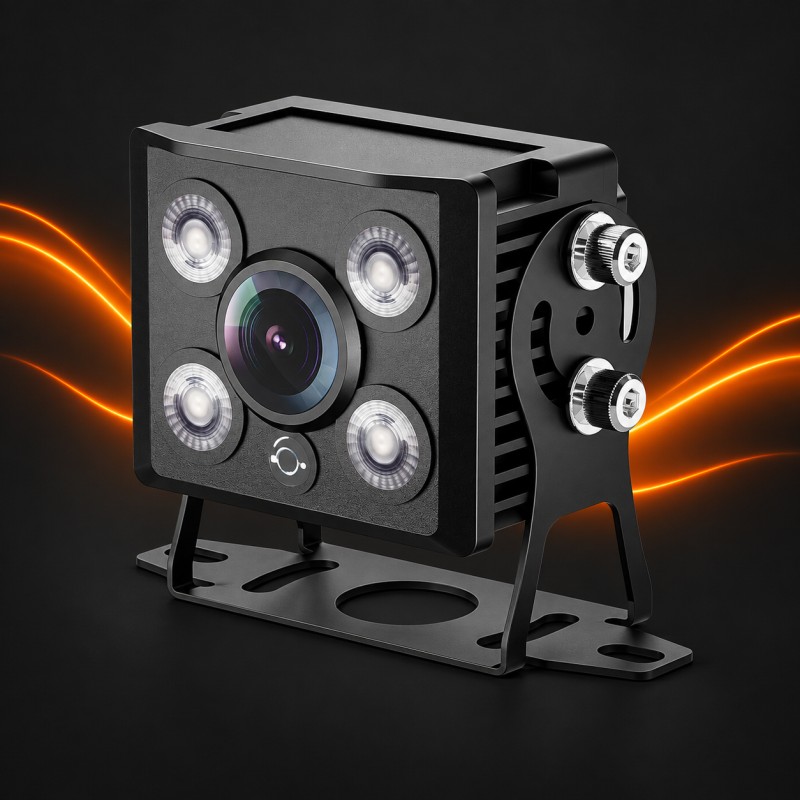

Compact Cast Metal Chassis & Dual-Bolt Locking U-Bracket
L53×W35×H54mm Form Factor & Vibration-Resistant Stability
- Low-Profile Footprint: Compact 53×35×54mm metal enclosure fits easily on mirror arms.
- Dual-Bolt Locking U-Bracket: Heavy-duty bracket maintains optical aim under intense vibration.
- Energy-Efficient Operation: Low power draw prevents thermal buildup in continuous fleet runs.

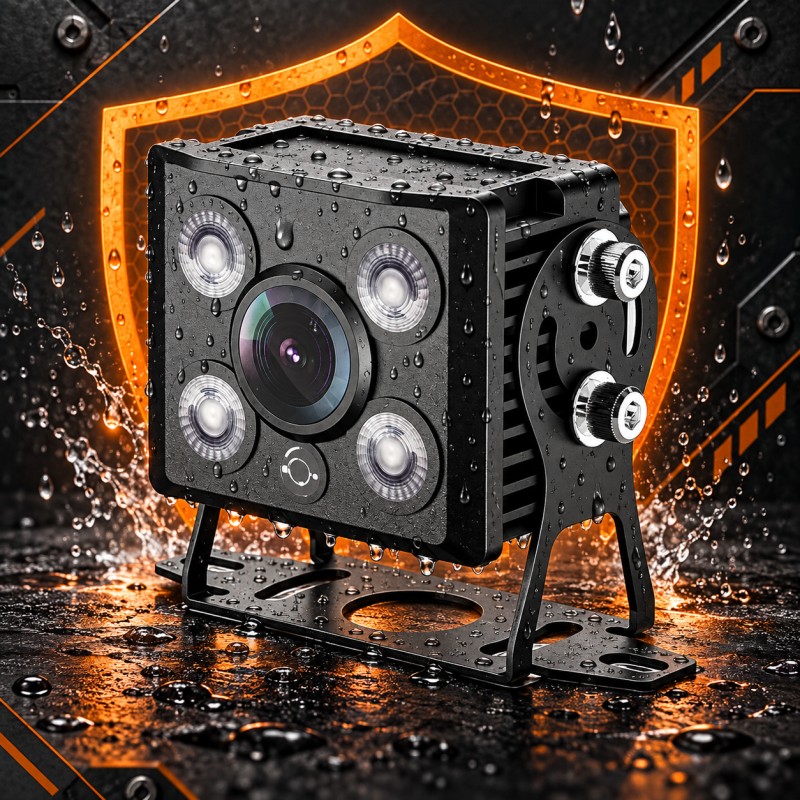

IP68 Ingress Sealing & -30°C to +75°C Severe Fleet Duty
High-Pressure Washdown Proof & Industrial 4-Pin Aviation Port
- IP68 Cast Metal Sealing: Precision enclosure withstands high-pressure equipment power washing.
- -30°C to +75°C Climate Range: Tested for reliable all-season commercial fleet duty.
- 4-Pin Aviation Coupler: Industrial locking connector ensures vibration-proof video integrity.
Built for Long-Term Fleet Programs
Factory Direct Supply
Devices ship from our own production line, with engineering support from the team that builds them.
Certified & Lab Tested
CE, UKCA, RoHS and ISO 9001 — every platform is backed by third-party laboratory test reports.
15-Month Warranty
Coverage that goes beyond the standard 12-month term, honored through your dedicated account manager.
OEM & Firmware Support
Logo, packaging, firmware behavior and interface customization for your market and fleet platform.
From Inquiry to Delivery in Four Steps
A clear path from first contact to units running in your fleet — no obligation at the evaluation stage.
Share Your Requirements
Send fleet size, vehicle models and target functions through the inquiry form or to your account manager.
Version & Quotation
Our engineers map your needs to the right CC877-AHD20 version and issue a formal quotation within one business day.
Sample Evaluation
Sample units are available for road testing before you commit to a bulk order — evaluate first, decide later.
Production & Delivery
Bulk orders ship with factory QC reports, export documents and the 15-month warranty from dispatch.
Documents & Downloads
Everything your engineering and procurement teams need for evaluation.
Product Datasheet
Full specifications and ordering information — request the current CC877-AHD20 datasheet.
Request DatasheetCertificates & Test Reports
Certification and third-party laboratory reports for the selected version and target market.
Request CertificatesUser Manual & Installation Guide
Wiring, mounting and configuration instructions — provided with sample orders.
Request ManualCMS Software & Demo
Platform access for evaluation — connect supported configurations to a live demo fleet.
Request Demo AccessComplete the In-Vehicle Safety Stack
Product families commonly deployed alongside CC877-AHD20 in the same fleet stack.
CC998-AHD20 Waterproof Wi-Fi Vehicle Camera
Model CC998-AHD20 — Vehicle Camera for commercial fleets.
CC995-AHD20 IP69K Explosion-Proof Vehicle Camera
Model CC995-AHD20 — Vehicle Camera for commercial fleets.
CC866-AHD20 Starlight Camera for Commercial Fleets
Model CC866-AHD20 — Vehicle Camera for commercial fleets.
Frequently Asked Questions
Can't find your answer? Our engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
Which connectivity options are available?
CC877-AHD20 supports vehicle-grade connectivity. Map the interfaces to your onboard systems before ordering.
Which warranty applies?
CC877-AHD20 ships with a 15 Months warranty. Confirm the final terms and regional service coverage in your quotation.
What vehicles does it fit?
Suitable for All Vehicles — mounting positions and camera coverage must be designed for the specific vehicle layout.
Are all listed features standard on every unit?
No. Detection coverage, connectivity and camera options are configuration-dependent. Confirm the exact scope in the quotation — our engineers will recommend the right version for your vehicles.
