MR810 Standalone Driver Monitoring System for Buses
| Share | |
|---|---|
| Categories | DMS (Driver Monitoring System) |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Model | DMS-MR810 |
| Voltage | 12/24V |
| Video Record Resolution | 1280x720 |
| Satellite Positioning | Support GPS and BD (Beidou) dual-mode positioning |
| Optional | I/O or RS232 |
| Wireless Communication | Wifi |
| Storage | 512GB TF Card |
| Video Encoding | H.264/H.265 |
| Application | Suitable for All Vehicles |
| Operating Temperature | -20℃ ~ 70℃ |
| Warranty | 15 Months |
MR810 Standalone Driver Monitoring System for Buses
MR810 standalone DMS records 720p video and alerts the driver to fatigue, distraction, smoking and phone use. Alerts go to the driver only; the system does not control the vehicle.
- 15-month warranty
- IATF 16949 certified factory
- OEM / ODM customization
- Suitable for all vehicles
Final configuration (version, interfaces, add-ons) is confirmed in your quotation.

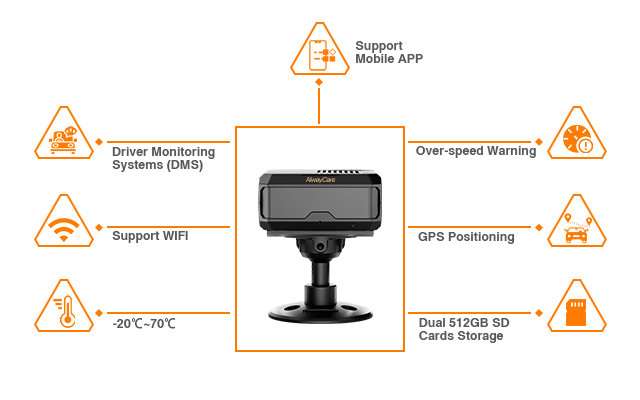

What MR810 Delivers
A standalone in-cab unit that works on its own or feeds your existing terminal.
Alerts the driver to fatigue and distraction
The driver-facing camera raises 12 types of DSM alarms with spoken voice prompts. Alerts go to the driver only; the system does not control the vehicle.
- Fatigue, yawning and distraction
- Smoking and phone calling
- No seatbelt and no driver detected
- Camera blocking and camera failure
Records audio and video to a TF card
The 720p camera records with H.264/H.265 encoding and a built-in microphone. Wi-Fi connects a smartphone app for calibration, settings and video export.
- 1280×720 video recording
- Up to 512GB TF card
- Built-in microphone and voice speaker
- GPS and BeiDou speed positioning
Connects to your GPS tracker or MDVR
Three I/O outputs and one RS232 port pass alarm events to a third-party GPS tracker or AVL terminal. The MR810-PVO version adds a 1-channel AHD video output for a display or MDVR.
- 3 I/O outputs and RS232
- AHD video output on MR810-PVO
- Works with the DP230 7-inch monitor
- Protocol details confirmed in your quotation
Add seat vibration or a warning light
Optional peripherals add tactile and visual alerts for noisy cabs or quiet passenger buses, and a metal bracket suits rough roads.
- Vibration cushion (MR810-VC)
- Under-seat vibration motor (MR810-MOT)
- Warning light (MR810-AL)
- Metal bracket (ST-1)

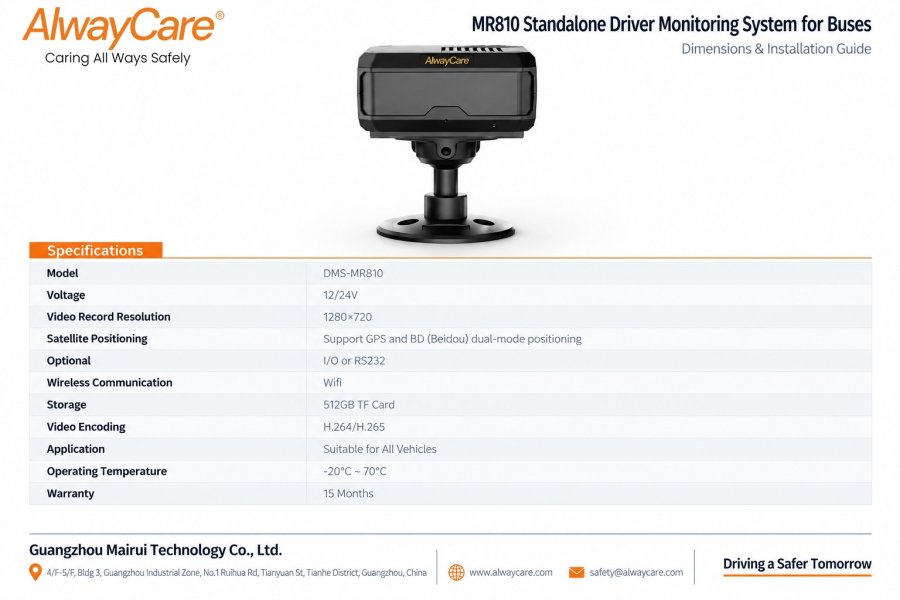

Specification drawing
Dimensions, wiring and interfaces for installation planning. Camera positions are confirmed per vehicle.
- Engineering drawing
- Wiring guidance on request
- 12/24V input
- Operating temperature −20℃ to 70℃
Choose the MR810 Version
Two versions share the same DMS engine, recording and interfaces. MR810-PVO adds the AHD video output.
| Version | DMS alarms | 3× I/O + RS232 | AHD video output | DP230 monitor | Best for |
|---|---|---|---|---|---|
| MR810-PVTelematics | 12 | — | — | Sends alarm signals to a GPS tracker or AVL box without streaming video. | |
| MR810-PVOVideo output | 12 | Optional | Adds a 1-channel 720p AHD output to a display or MDVR, for buses and coaches. |
Technical Specifications
Values follow the factory datasheet. Your quotation confirms the exact configuration.
AI safety engine
- DSM alarms (12)
- Fatigue, yawning, distraction, no driver detected, smoking, phone calling, overspeed, no seatbelt, infrared glasses blocking, camera blocking, camera failure, driver change
- Voice alerts
- Chinese and English prompts; custom language on request
- Alert mode
- Voice alert to the driver; optional vibration, warning light
Video and storage
- Video resolution
- 1280×720
- Encoding
- H.264 / H.265
- Video output
- 1-channel AHD on MR810-PVO
- Local storage
- 1 TF card, up to 512GB, audio and video
Connectivity
- Wireless
- Wi-Fi for smartphone app setup
- Positioning
- GPS and BeiDou dual-mode
- Interfaces
- 3 I/O outputs and 1 RS232 (I/O or RS232 optional)
Power and hardware
- Voltage
- 12/24V
- Operating temperature
- −20℃ to 70℃
- Application
- Suitable for all vehicles
- Warranty
- 15 months
Optional Accessories
Vibration cushion (MR810-VC)
Seat pad vibration alerts the driver quietly on passenger buses.
Under-seat motor (MR810-MOT)
A chassis-mounted motor for a stronger tactile alert in noisy cabs.
Warning light (MR810-AL)
A flashing LED warning light with controller for a visual alert.
Metal bracket (ST-1)
A double-ball-head all-metal mount for off-road vibration.
7-inch monitor (DP230)
Plug-and-play in-cab display for the MR810-PVO video output.
MR810 Versus Other DMS Models
Values come from each product's factory datasheet.
| Model | Type | Recording | Wireless | Storage | Optional interface | |
|---|---|---|---|---|---|---|
| MR810 (this model) | Standalone DMS | 1280×720 | Wi-Fi | 512GB TF card | I/O or RS232 | |
| MR830 | All-in-one DMS, optional ADAS and BSD | 1920×1080 | 4G or Wi-Fi | 512GB TF card | I/O or RS232 | View → |
| MR910-D | DMS with 5-channel mobile DVR | 1920×1080 | 4G or Wi-Fi | 512GB SD card | I/O or RS232 | View → |
Frequently Asked Questions
Need technical clarification? Email safety@alwaycare.com or send an inquiry.
What is the difference between MR810-PV and MR810-PVO?
Both versions share the same 12 DMS alarms, three I/O outputs, RS232 and TF-card recording. MR810-PVO adds a 1-channel 720p AHD video output for an in-cab monitor such as the DP230 or for an MDVR.
Can MR810 connect to our existing GPS tracker or MDVR?
Yes. Three I/O outputs and one RS232 port send alarm events to third-party GPS trackers and terminals. Confirm the interface and protocol of your device in the quotation.
How does MR810 work at night or with sunglasses?
The camera has infrared illumination for in-cab use. Detection performance can vary with eyewear, lighting and installation angle, so test it on your own vehicles. An infrared-glasses blocking alarm is included.
Why add a vibration cushion on passenger buses?
On buses, spoken alerts can be heard by passengers. The optional vibration cushion (MR810-VC) gives the driver a seat vibration alert instead.
How do I set up the alarms?
MR810 has Wi-Fi for a smartphone app. Installers use it to align the camera, adjust alarm sensitivity, set speed thresholds, set volume and export event video.
What warranty applies?
MR810 is supplied with a 15-month quality warranty. Sample units for road testing are available; contact us for details. Confirm service terms in your quotation.
