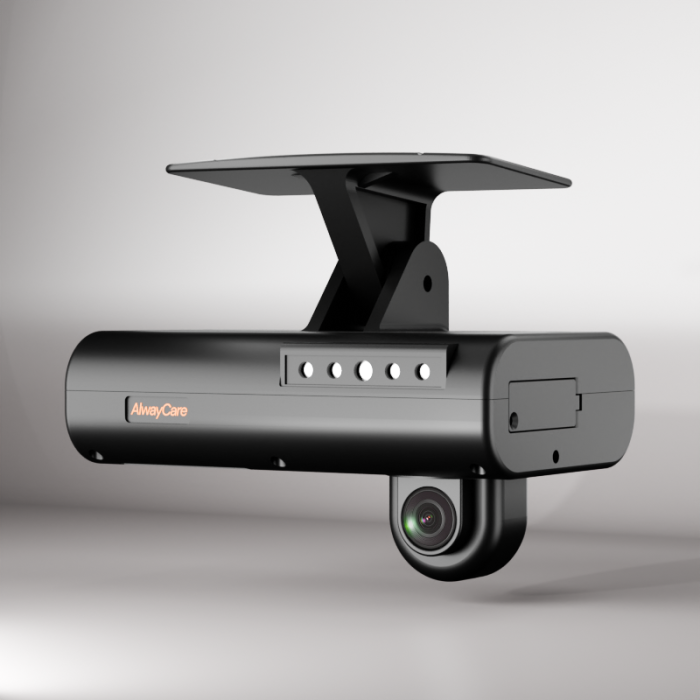

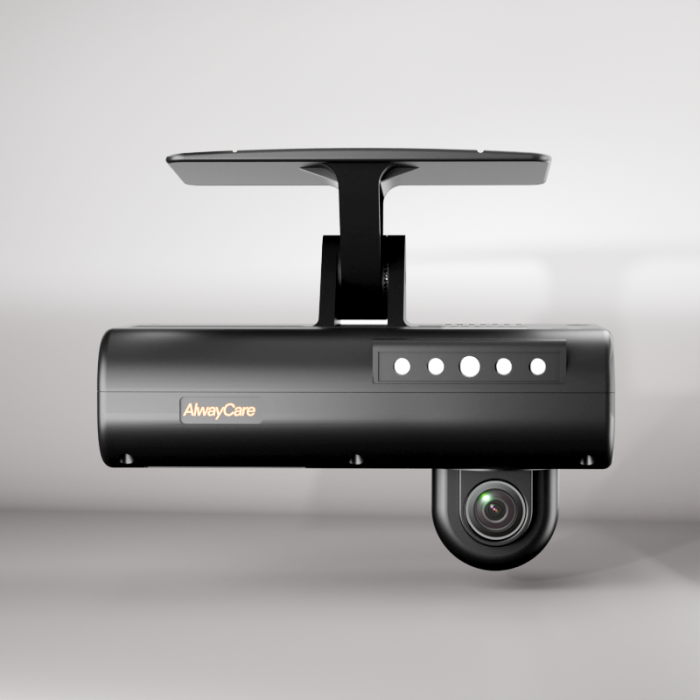

MR700 AI Dashcam with ADAS and DMS for Fleets
| Share | |
|---|---|
| Categories | AI Dashcam |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Model | AI Dashcam-MR700 |
| Voltage | 12/24V |
| Video Record Resolution | 1920x1080 |
| Satellite Positioning | Support GPS |
| Optional | I/O or RS232 |
| Wireless Communication | 4G or Wifi |
| Storage | 512GB TF Card |
| Size | 60*77*123mm |
| Video Encoding | H.264/H.265 |
| Application | Suitable for All Vehicles |
| Operating Temperature | -20℃ ~ 70℃ |
| Warranty | 15 Months |
MR700 AI Dashcam with ADAS and DMS for Fleets
MR700 is a 1080p two-to-four-channel AI dashcam with DMS, ADAS, GPS and 4G or Wi-Fi connectivity for commercial fleets. Alerts go to the driver only; the system does not control the vehicle.
- 15-month warranty
- IATF 16949 certified factory
- OEM / ODM customization
- Suitable for all vehicles
Final configuration (version, channels, interfaces) is confirmed in your quotation.
What MR700 Delivers
Driver monitoring, forward warnings and recording in one compact dashcam.
DMS and ADAS in one unit
The cabin camera watches the driver and the forward camera watches the road. Alerts go to the driver only; the system does not control the vehicle.
- Drowsiness, yawning, phone use and distraction
- FCW, LDW, HMW and PCW warnings
- Driver face ID on the platform
- Built-in microphone and speaker
4G, GPS and Wi-Fi
Stream live video and upload alarm clips to the platform over 4G. GPS tracks the route and Wi-Fi connects a smartphone app for setup.
- 4G or Wi-Fi connectivity
- GPS route tracking and geofence alerts
- Alarm event video clips
- Two-way voice intercom with the platform
Sensors and power for fleet use
A 6-axis G-sensor detects harsh driving and rollover. The unit runs on 12/24V vehicle power across −20℃ to 70℃.
- 6-axis G-sensor and SOS input
- 12/24V power
- Operating temperature −20℃ to 70℃
- Up to 512GB TF card
Specification drawing
Dimensions, wiring and interfaces for installation planning.
- Engineering drawing
- Size 60 × 77 × 123mm
- Wiring guidance on request
- Four versions to choose from
Choose the MR700 Version
Four versions share the DMS, ADAS, 4G, GPS and CMS functions. They differ in cameras and interfaces.
| Version | Video inputs | CVBS output | RS232 | I/O inputs | 12V / 5V aux out | Best for |
|---|---|---|---|---|---|---|
| MR700-SVStandard | 2 (ADAS + DSM) | — | — | — | — | Plug-and-play two-channel unit for taxis, ride-hailing and light delivery vans. |
| MR700-PVProfessional | 2 (ADAS + DSM) | — | 2 | — | — | Dual RS232 ports for integrating with third-party terminals, MDVRs and sensors. |
| MR700-V33-channel | 3 (+ 1 external) | 2 | 3 | Adds an in-cab monitor output and trigger inputs for reverse and turn signals. | ||
| MR700-V44-channel | 4 (+ 2 external) | — | 2 | 3 | Four-channel coverage for heavy trucks and large vehicles. |
Technical Specifications
Values follow the factory datasheet. Your quotation confirms the exact configuration.
AI safety engines
- DSM
- Drowsiness, eye closure, yawning, phone use and distraction
- ADAS warnings (4)
- FCW forward collision, LDW lane departure, HMW headway, PCW pedestrian collision
- Alert mode
- Voice alert to the driver; the system does not control the vehicle
Video and storage
- Main camera
- 1920×1080 at 30fps
- DSM camera
- 1080P (SV / PV) or 720P (V3 / V4)
- External cameras
- 720P
- Encoding
- H.264 / H.265
- Local storage
- 1 TF card, up to 512GB
Connectivity
- Wireless
- 4G or Wi-Fi
- Positioning
- GPS
- Interfaces
- I/O or RS232 by version; 1 I/O output on all versions
- Sensors and audio
- 6-axis G-sensor, SOS input, microphone and speaker with two-way intercom
Power and hardware
- Voltage
- 12/24V
- Operating temperature
- −20℃ to 70℃
- Size
- 60 × 77 × 123mm
- Warranty
- 15 months
Optional Accessories
Vibration cushion (MR700-VC)
A seat cushion that vibrates when a fatigue alert is raised.
Seat vibration motor (MR700-MOT)
A motor under the seat frame for a strong tactile alert.
Warning beacon (MR700-BC)
A buzzer with a flashing LED light for critical alerts.
Ultrasonic fuel sensor (MR700-OLS)
Measures fuel tank level over RS232 on PV, V3 and V4.
RFID card reader (MR700-CR)
Drivers swipe a badge to log in and out, over RS232.
External cameras
CC805, CC670, CC950 and CC990 cameras for the external channels.
MR700 Versus Other AI Dashcams
Values come from each product's factory datasheet.
Documents
Files that exist for this model can be downloaded. The others are available from our engineers on request.
Frequently Asked Questions
Need technical clarification? Email safety@alwaycare.com or send an inquiry.
Which MR700 version should I choose?
MR700-SV suits plain two-channel use. MR700-PV adds RS232 for third-party terminals. MR700-V3 adds an in-cab monitor output, and MR700-V4 adds a second external camera. Your quotation confirms the version.
What does MR700 detect?
The DMS detects drowsiness, eye closure, yawning, phone use and distraction. The ADAS gives FCW, LDW, HMW and PCW warnings. Alerts go to the driver only; the system does not control the vehicle.
Can MR700 connect to our existing system?
PV, V3 and V4 versions have RS232 ports for third-party terminals, MDVRs and sensors. Confirm the protocol in your quotation.
What storage does it use?
One TF card up to 512GB, recording H.264 / H.265 video and alarm clips.
Is the CMS platform included?
MR700 connects to the AlwayCare CMS over 4G for live view, alarm clips and route tracking. Platform authorization is confirmed in your quotation.
Which warranty applies?
MR700 is supplied with a 15-month quality warranty. Sample units for road testing are available; contact us for details.
