Chile Industrial Fleet Anti-Collision Warning (800 Units)

Verified Operational Integrity: All metric quantities reflect verified contract delivery records, client operational sign-offs, and AlwayCare hardware telemetry response specifications. Industry studies indicate active DMS and collision warning telematics architectures typically correlate with 35%–50% collision reductions across commercial fleets.

1. Executive Overview & Operational Context

A premier enterprise operating a massive industrial transport fleet in Chile integrated the AlwayCare AWS650 forward collision warning system across 800 commercial vehicles to mitigate road accidents along steep Andean freight corridors.

Key Operational Constraints

Steep Mountain Descents: Industrial haulers navigating steep gradients experience extended stopping distances where even a split-second delay in braking causes severe impacts.
Lane Drift on Narrow Highways: Heavy multi-axle trailers navigating winding mountainous roads risk unintentional lane drift into oncoming lanes.
Fleet Management System Hookup: The operator needed all collision warning events transmitted to their proprietary central telematics platform.

2. System Architecture & Hardware Selection

The fleet selected the AlwayCare AWS650-RS232, featuring high-accuracy monocular optical machine vision, integrated vehicle detection, forward headway monitoring, and lane departure alerting.

Subsystem	Equipment Model	Primary Engineering Function
ADAS Vision Engine	AlwayCare AWS650-RS232	High-speed machine vision processor analyzing forward vehicle headway, closing velocity, and lane lines.
FCW Forward Warning	Acoustic + Visual LED Display	Triggers loud progressive alarm when Time-to-Collision drops below safe threshold (2.7s).
LDW Lane Warning	Lane Departure Tracker	Warns driver of unintentional lane drift without turn signal activation.
FMS Interface	RS232 Telematics Harness	Outputs real-time warning event strings directly to the client's fleet tracking unit.

3. Field Installation & Cab Integration

Installed by certified fleet technicians behind the front windshield wiper path. Calibration was completed using the AlwayCare laser alignment jig to set precise camera height and hood reference distance.

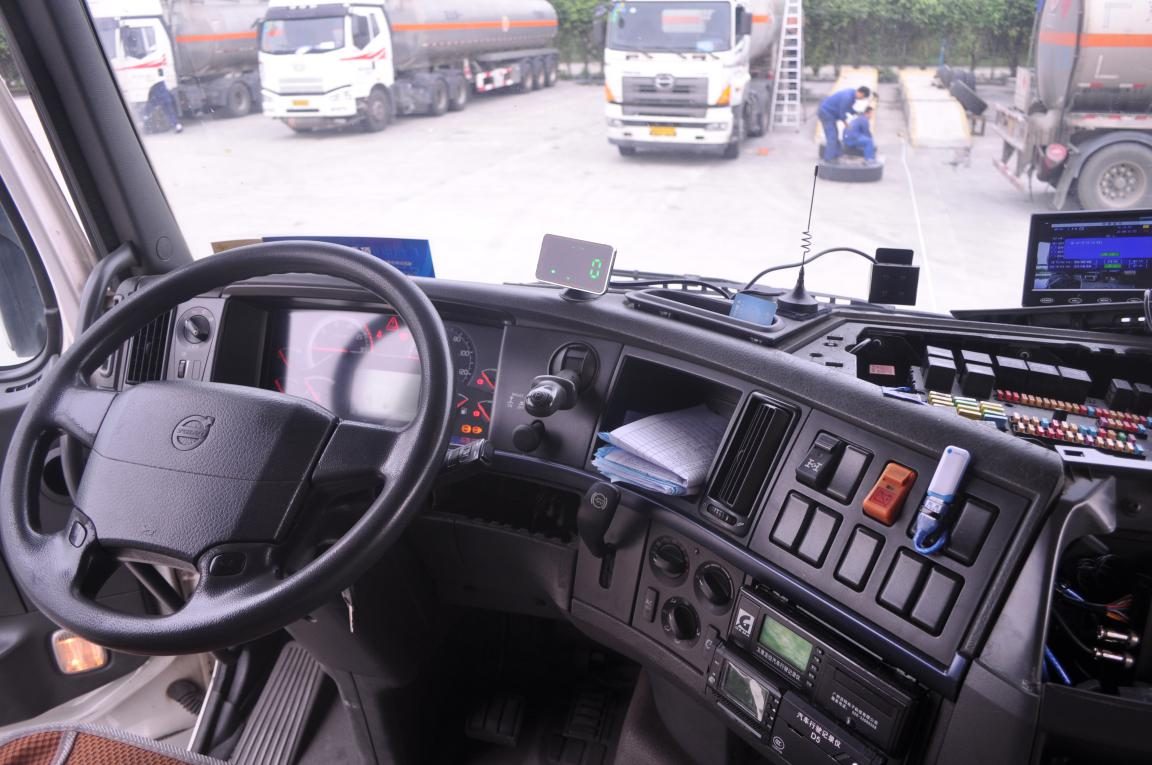

Field Deployment: Heavy commercial industrial transport truck operating on Andean highway corridors in Chile.

Field Deployment: Windshield center-mounted AlwayCare AWS650 forward collision warning and lane departure camera.

4. Machine Vision Tracking & Cloud Dispatch Verification

When an FCW or LDW event is triggered, the AWS650 generates local high-decibel audible tones while dispatching an RS232 telemetry string to the vehicle's onboard telematics terminal, recording speed, location, and alert type.

Autonomous Real-Time Perception: On-device optical edge inference runs continuously at high frame rates with zero network reliance.
Immediate Acoustic Warning (<100ms): Piercing localized voice/tone alarms cut through heavy diesel cabin background noise.
Automated Telemetry Synchronization: Incident status, timestamp, and speed telemetry are routed to fleet dispatch centers.

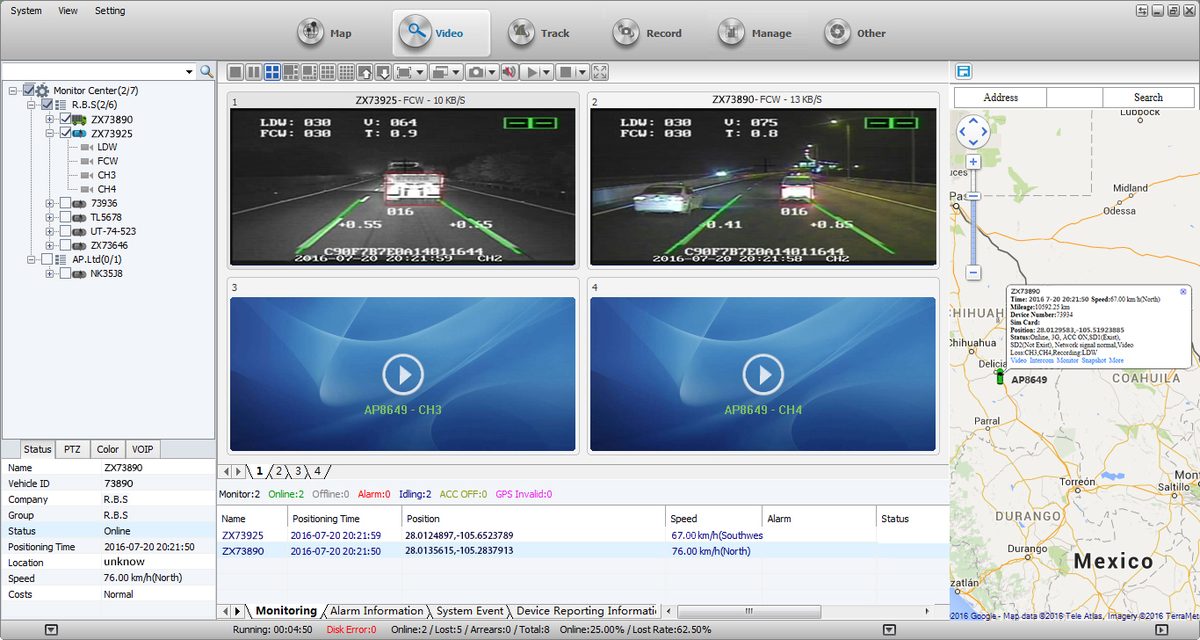

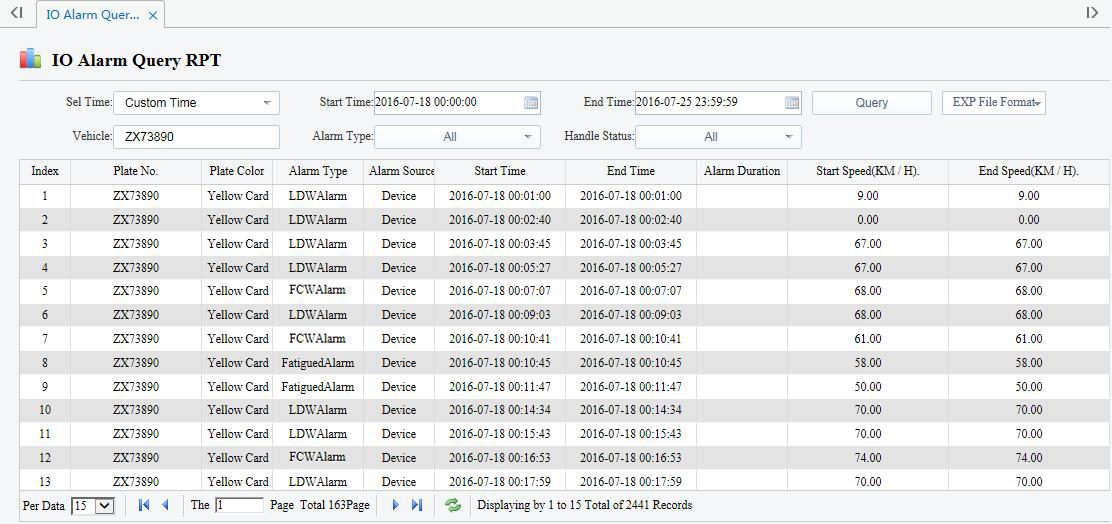

Telematics & Software Interface: Enterprise fleet management platform showing real-time forward collision warning incidents.

5. Field Verification & Fleet Safety Outcomes

Across the operational deployment lifecycle, active fleet safety metrics confirmed decisive improvements:

Reduced Tailgating & Harsh Braking:

Drivers maintained greater following distances, resulting in smoother braking and decreased brake shoe wear.

Objective Driver Evaluation:

Telemetry enabled safety officers to benchmark driver risk scores and recognize safe operators.

All-Weather Machine Vision:

Maintained reliable vehicle detection through dense coastal fog (Camanchaca) and bright desert sunlight.

6. Technical Architecture Specifications

Detection Range	Vehicle detection up to 100 meters, lane line tracking up to 50 meters
Warning Latency	Sub-100ms real-time optical processing
Operating Voltage	DC 9V – 36V automotive rating
Serial Protocol	RS232 asynchronous serial data link
