MR910-D DMS with 5-Channel Mobile DVR
| Share | |
|---|---|
| Categories | DMS (Driver Monitoring System) |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Model | MR910-D |
| Voltage | 12/24V |
| Video Record Resolution | 1920x1080 |
| Satellite Positioning | Support GPS and BD (Beidou) dual-mode positioning |
| Optional | I/O or RS232 |
| Wireless Communication | 4G or Wifi |
| Storage | 512GB SD Card |
| Video Encoding | H.264/H.265 |
| Application | Suitable for All Vehicles |
| Operating Temperature | -20℃ ~ 70℃ |
| Warranty | 15 Months |
MR910-D DMS with 5-Channel Mobile DVR
Commercial Fleet Driver Monitoring System (DSM/DMS) with 5-Channel AHD/IPC Mobile DVR (MDVR) recording, dual SD tamper-proof storage, 4G LTE CMS telematics, and dynamic biometric face ID authentication.
Technical Specifications
Verified factory technical parameters for the AlwayCare MR910-D Driver Monitoring System and 5-channel commercial mobile digital video recorder.
| Operating System & AI Core | Embedded Linux OS with high-efficiency hardware neural processing unit (NPU) dedicated to real-time pupil tracking and driver state computer vision algorithms. |
|---|---|
| Driver State Monitoring (DSM) | 11 Core Built-in Driver Alarms: Fatigue driving, yawning, distraction (left/right/downward looking), calling on mobile phone, smoking detection, no portrait/driver absent, infrared blocking, camera occlusion, camera failure, no mask warning, and unbuckled seatbelt detection. |
| Video & Audio Channels | Video Input: 4 Channels AHD (1080P / 960P / 720P / D1) + 1 Channel IPC digital expansion. Video Output: 1 Channel CVBS output (aviation to RCA) standard; optional VGA video output. Audio: 1 Channel MIC input (two-way intercom support) + 1 Channel audio output. |
| Video Encoding & Dual Stream | H.265 (HEVC) and H.264 Main Profile compression; dual streaming architecture supporting high-bitrate local master storage and bandwidth-optimized remote 4G streaming. |
| Local Storage & Physical Security | Dual SDXC memory card slots supporting up to 512GB per slot (Total capacity up to 1TB). Front-panel tamper-proof mechanical key lock cover protects SD cards and SIM card from unauthorized removal. |
| Wireless Connectivity & Antennas | 4G LTE all-network cellular module + GPS / BeiDou dual-mode high-precision positioning GNSS + 2.4GHz Wi-Fi (802.11b/g/n) for mobile app debugging and station auto-offload. 3× gold-plated threaded SMA antenna ports. |
| Hardware Interfaces | 4× I/O alarm inputs (left turn, right turn, reverse, brake), 1× I/O alarm output (buzzer/relay cutoff), 1× USB 2.0 port, 1× RJ45 LAN 100M Ethernet port (or optional VGA port), 1× RS232 serial port, 1× RS485 communication port. |
| Power Supply & Protection | DC 9V ~ 36V wide-voltage automotive input with built-in reverse polarity protection, over-voltage/current protection, and programmable delayed power-off shutdown (1 min to 24 hours). Power consumption: < 10W. |
| Environmental & Chassis | Operating Temperature: -20°C to +70°C (-4°F to +158°F); Storage Temperature: -40°C to +85°C. Heavy-duty extruded aluminum alloy casing with integrated thermal cooling fins and anti-vibration mounting bracket. |
MR910 Series Fleet Architecture Selection
MR910 Series Fleet Architecture Selection
Compare the AI algorithm packages, video channels, and telematics configurations across the MR910 commercial lineup.
| Architecture Version | Video Channels | DMS (Driver Monitoring) | ADAS (Forward Collision) | BSD (Blind Spot Detection) | Wireless Telematics | Local Storage |
|---|---|---|---|---|---|---|
| MR910-D (DMS Edition) Current Model Driver state & fatigue monitoring |
4× AHD + 1× IPC | 11 Core Alarms | Optional Port | Optional (1-CH) | 4G LTE + GPS/BD + Wi-Fi | Dual SD (Up to 1TB) |
| MR910-A (ADAS Edition) Forward roadway collision warning |
4× AHD + 1× IPC | Optional Port | Full ADAS Suite | Optional (1-CH) | 4G LTE + GPS/BD + Wi-Fi | Dual SD (Up to 1TB) |
| MR910-DA (Dual-AI Flagship) Combined driver & road safety |
4× AHD + 1× IPC | Integrated DMS | Integrated ADAS | Optional Add-on | 4G LTE + GPS/BD + Wi-Fi | Dual SD (Up to 1TB) |
| MR910-DAB1 (Triple-AI Fusion) DMS + ADAS + Right-side blind spot |
4× AHD + 1× IPC | Integrated DMS | Integrated ADAS | 1-CH AI BSD | 4G LTE + GPS/BD + Wi-Fi | Dual SD (Up to 1TB) |
| MR910-DB2 (Dual BSD Edition) DMS + Left & right blind zones |
4× AHD + 1× IPC | Integrated DMS | Optional Port | 2-CH Dual BSD | 4G LTE + GPS/BD + Wi-Fi | Dual SD (Up to 1TB) |
| MR910-BP / BSD (BSD Specialist) Perimeter pedestrian & cyclist safety |
4× AHD + 1× IPC | Optional Port | Optional Port | 1~4 CH BSD (VRU) | 4G LTE + GPS/BD + Wi-Fi | Dual SD (Up to 1TB) |
What MR910-D Delivers for Commercial Fleets
Engineered to eliminate fatigued and distracted driving while providing uninterrupted multi-channel evidentiary recording.
Patented Infrared Pupil Tracking & Driver State Monitoring
- Specialized DMS optics: Utilizes 940nm non-glare infrared illumination and precision sensor behind a dark optical faceplate, tracking pupils regardless of sunglasses or lighting conditions.
- Comprehensive 11-alarm DSM suite: Detects micro-sleeps, prolonged yawning, left/right distraction, phone use, and smoking with immediate local voice reminders.
- Dynamic Face ID check: Verifies driver identity against authorized fleet databases to prevent uncertified or unauthorized vehicle operation.
Heavy-Duty Automotive Harness & Gold-Plated Tri-Band SMA Array
- Vibration-resistant latching harnesses: Positive-locking automotive multi-pin blocks withstand harsh transport vibrations without pin loosening.
- Precision threaded SMA terminals: 3× gold-plated brass SMA antenna connections guarantee optimal RF reception for 4G LTE, GPS/BeiDou, and Wi-Fi.
- Comprehensive telematics bus: Integrated RS232, RS485, and 4-channel trigger I/O ports connect fuel level sensors, door switches, and secondary displays.
Dual SD Card 1TB Tamper-Proof Storage & Telematics Cloud Integration
- Front-panel mechanical key lock: High-security metal lock plate physically prevents unauthorized card removal or SIM tampering by drivers.
- Massive 1TB local capacity: 2× 512GB SDXC slots provide ample retention for multi-channel 1080P video with high-efficiency H.265 compression.
- Real-time CMS cloud connectivity: Automatic alarm video clip uploads, live streaming, geo-fencing, and route replay keep fleet managers in total control.
Compatible Sensors & Peripherals Suite
Compatible Sensors & Peripherals Suite
Modular components factory-validated with MR910 MDVRs for complete commercial vehicle safety and cloud telematics integration.
Driver Monitoring (DMS) Cameras
Specialized interior cameras equipped with 940nm non-glare infrared illumination, pupil tracking optics, and heavy-duty articulated dual-ball damping brackets.
ADAS Forward Roadway Cameras
Windshield-mount high-dynamic optical sensors with pre-applied 3M VHB automotive structural adhesive and precision ratchet tilt adjustment.
CC1004-BSD AI Perimeter Cameras
Rugged die-cast zinc-aluminum housing rated IP68/IP69K with built-in deep-learning VRU detection, night-vision infrared array, and aviation 4-pin connectors.
Industrial Memory Storage
Industrial-grade high-endurance Class 10 / V30 SDXC memory cards up to 512GB per slot (1TB dual-slot capacity) tested for continuous high-temperature loop recording.
Driver Warning Peripherals
External high-decibel acoustic speakers, vibrating seat cushions, dash warning LEDs, and high-clarity in-cab commercial vehicle displays (DP210 / DP230 / DP270).
Telematics CMS Cloud Platform
Web browser and mobile app fleet management: multi-channel live streaming, historical track playback, automated alarm clips, geofencing, and dynamic driver face ID verification.
Built for Long-Term Fleet Programs
Why tier-1 fleet operators, bus transit authorities, and telematics service providers rely on AlwayCare hardware.
Factory Direct Supply
ISO9001 certified production lines with full batch burn-in testing, optical calibration, and traceability for commercial vehicle hardware programs.
Integrated Fleet Safety
Single-architecture hardware combining multi-channel MDVR recording, AI vision safety, GNSS telematics, and centralized cloud surveillance.
15-Month Warranty
Every commercial MDVR is backed by a 15-month quality guarantee from factory dispatch with guaranteed long-term spare component availability.
OEM & Protocol Integration
Custom branding, customized packaging, tailored harness pinouts, and seamless API / JT808 / JT1078 protocol integration with third-party CMS platforms.
From Inquiry to Delivery in Four Steps
A clear path from first contact to units running in your fleet — no obligation at the evaluation stage.
Share Your Requirements
Send fleet size, vehicle models, and target safety functions through the inquiry form or to your account manager.
Version & Quotation
Our engineers map your needs to the right MR910-D architecture and issue a formal quotation within one business day.
Sample Evaluation
Sample evaluation units are available for road testing before committing to bulk deployment — evaluate first, decide later.
Production & Delivery
Bulk fleet orders ship with factory QC reports, export documentation, and full 15-month manufacturer warranty from dispatch.
Documents & Downloads
Everything your engineering, procurement, and deployment teams need for technical evaluation.
Product Datasheet
Full technical specifications, dimensions, wiring pinouts, and ordering information for MR910-D.
Request DatasheetCertificates & Test Reports
Official CE, FCC, RoHS, and environmental testing reports validated for commercial transport authorities.
Request CertificatesUser Manual & Wiring Diagram
Harness pinouts, camera mounting angles, trigger cable connections, and mobile calibration guide.
Request ManualCMS Platform Software & Demo
Full fleet management cloud demo access — live GPS tracking, multi-channel video playback, and JT808/JT1078 API documentation.
Request Demo AccessComplete the In-Vehicle Safety Stack
Commercial fleet telematics hardware frequently deployed alongside MR910-D in mixed fleets.

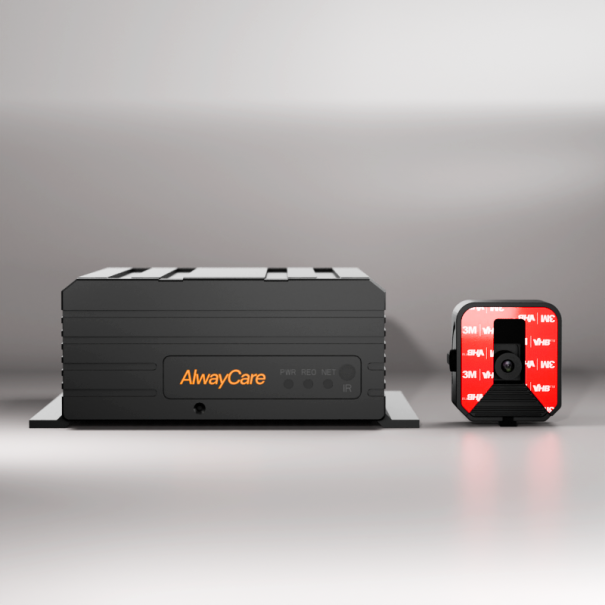

MR910-A ADAS with 5-Channel MDVR for Tractors
Model MR910-A — 5-Channel MDVR with dedicated ADAS forward roadway collision and lane departure warnings.
MR910-DA 5-Channel AI MDVR with DMS
Model MR910-DA — Dual-AI flagship MDVR combining full DMS driver monitoring with ADAS forward roadway protection.
MR910-BP 5-Channel AI MDVR with BSD Blind-Spot Warning
Model MR910-BP — Visual telematics MDVR featuring perimeter AI Blind Spot Detection and vulnerable road user safety.
Frequently Asked Questions
Explore our Fleet Safety & Video Telematics Glossary for in-depth MDVR and DMS technical specifications, or contact our engineers — email safety@alwaycare.com or send an inquiry.
What video channels and camera types are supported by MR910-D?
The MR910 platform features 4 channels of AHD video input (supporting 1080P, 960P, 720P, and D1 analog high-definition cameras) plus 1 channel of IPC digital input or algorithm video channel. This allows simultaneous monitoring of the driver cab, road ahead, side blind zones, and cargo/reversing areas.
How does the dual SD card storage architecture function in commercial fleets?
The device provides 2 independent Class 10 / V30 SD card slots supporting up to 512GB each, creating a total local capacity of up to 1TB. Both slots are secured behind a tamper-proof mechanical key lock cover on the front panel to prevent unauthorized card removal.
What wireless networking and remote telematics capabilities are included?
Standard hardware integrates a full-band 4G LTE cellular module, GPS/BeiDou dual-mode high-precision GNSS receiver, and a 2.4GHz Wi-Fi module. Fleets connect to the CMS platform for live remote video streaming, automated alarm incident video upload, route replay, and dynamic driver face verification.
Can MR910-D be deployed in extreme temperature environments?
Yes. The unit is housed in an industrial extruded aluminum alloy chassis with external heat dissipation fins. It operates reliably across an extended temperature range of -20°C to +70°C (-4°F to +158°F) and supports DC 9V~36V wide-voltage automotive power with built-in surge and reverse polarity protection.
What interface options are available for display monitors and sensors?
The rear panel features standard CVBS analog video output, 4 I/O inputs for turn-signal and reverse trigger switching, 1 I/O alarm output, 1 USB port, two-way intercom audio jack, RS232, and RS485 for peripherals like fuel and temperature sensors. An industrial RJ45 LAN port is standard, and a factory VGA video port can be selected alternatively.
What manufacturer warranty applies to the MR910 series?
The MR910 series is backed by a 15-month factory warranty from shipment date, supported by our direct engineering team and ISO9001 certified production facility.
