Australia Long-Haul Freight Fleet Safety Integration (550 Units)

Verified Operational Integrity: All metric quantities reflect verified contract delivery records, client operational sign-offs, and AlwayCare hardware telemetry response specifications. Industry studies indicate active DMS and collision warning telematics architectures typically correlate with 35%–50% collision reductions across commercial fleets.

1. Executive Overview & Operational Context

Operating across the vast Australian Outback on routes spanning thousands of kilometers, multi-trailer 'Road Trains' represent the world's heaviest road-going freight combinations (exceeding 100+ tons GCM). A premier logistics carrier, recognized as Australia's 'Safest Fleet' winner, deployed AlwayCare's full triple-tier safety suite across 550 heavy prime movers.

Key Operational Constraints

Massive Kinetic Energy & Braking Limits: Stopping distances for 50-meter multi-trailer road trains require maximum early collision warning.
Profound Outback Isolation & Fatigue: Endless straight desert highways under extreme heat create peak conditions for highway hypnosis and microsleep.
Wildlife & Stray Livestock Hazards: Kangaroo, cattle, and obstacle impacts require continuous forward optical scanning and incident video evidence.

2. System Architecture & Hardware Selection

The client deployed a unified three-part active safety architecture integrating AlwayCare MR688B driver fatigue monitoring, AWS650 forward collision warning, and a multi-channel cellular MDVR.

Subsystem	Equipment Model	Primary Engineering Function
Driver Monitoring Engine	AlwayCare MR688B-V4-PV	In-cab machine vision analyzing driver fatigue, distraction, seatbelt status, and eyes-off-road time.
Forward Collision Warning	AlwayCare AWS650 (ADAS)	Forward optical vision monitoring headway distance, calculating relative speed, and triggering FCW/LDW warnings.
Mobile Digital Video Recorder	Ruggedized 4G Cellular MDVR	Central hub recording continuous 1080p forward road video and cab safety feeds with GPS metadata.
Integrated Warning Architecture	Synchronous In-Cab Alerting	Coordinated audible warnings prioritizing imminent crash alerts over secondary fatigue notifications.

3. Field Installation & Cab Integration

Deployed across depots in Perth, Melbourne, and Brisbane. AWS650 was mounted on the heavy commercial windshield; MR688B was secured to the A-pillar base; MDVR was shock-mounted in a locked cab vault.

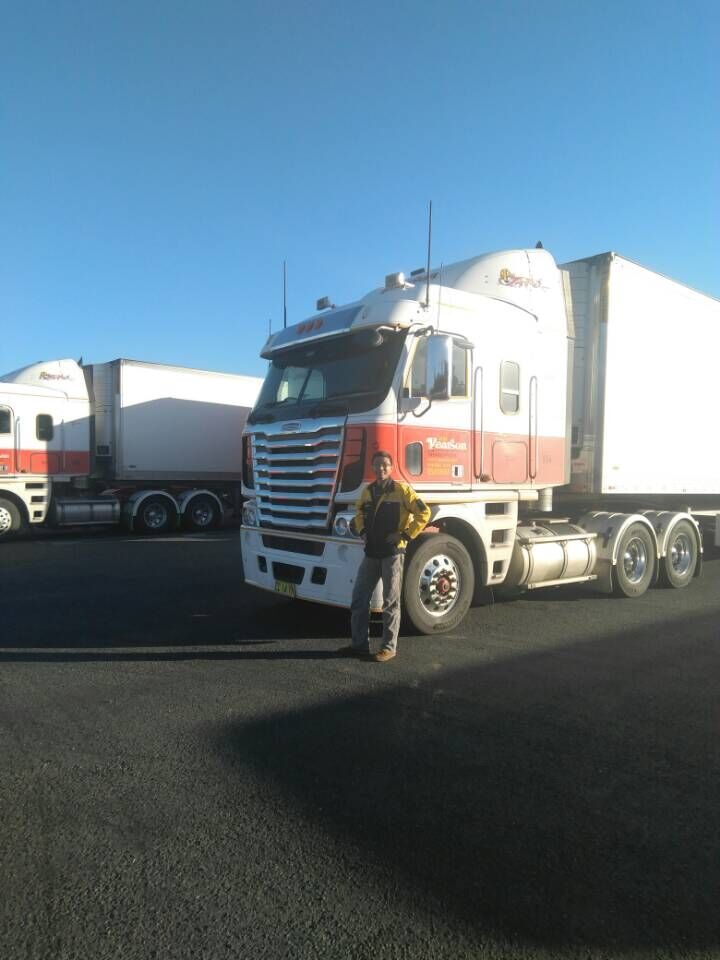

Field Deployment: Multi-trailer road train combination operating across the Australian Outback.

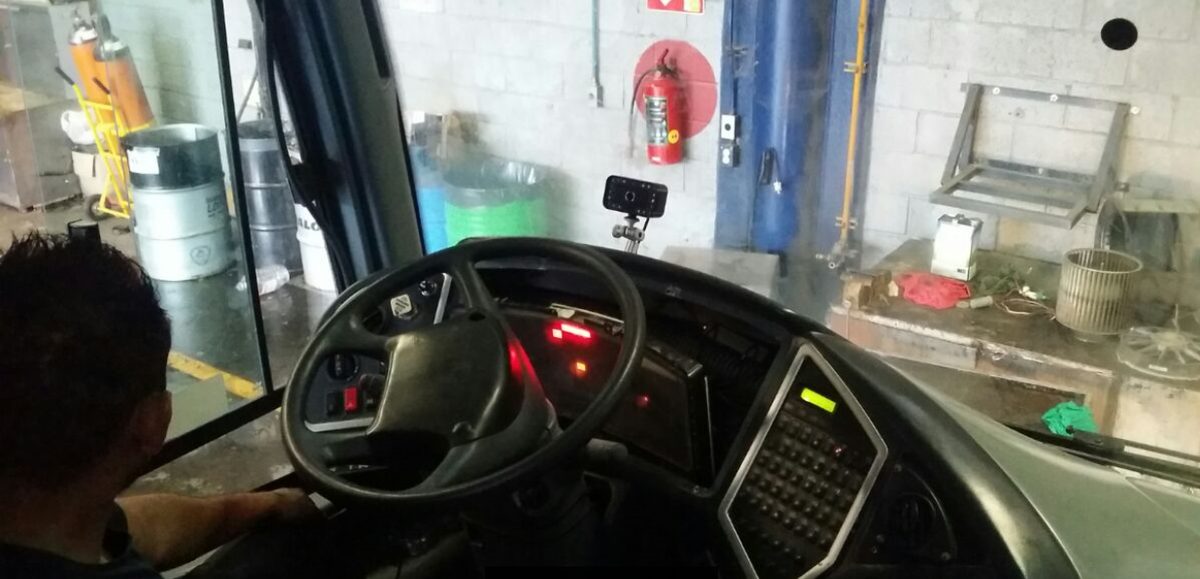

Field Deployment: In-cab A-pillar installation of AlwayCare MR688B driver monitoring sensor.

Field Deployment: Windshield optical installation of AlwayCare AWS650 forward collision warning camera.

4. Machine Vision Tracking & Cloud Dispatch Verification

When an active safety event occurs (FCW forward proximity or DMS eye closure), the MDVR captures 15 seconds pre/post event video and transmits the telemetry packet to the carrier's 24/7 central logistics operations center.

Autonomous Real-Time Perception: On-device optical edge inference runs continuously at high frame rates with zero network reliance.
Immediate Acoustic Warning (<100ms): Piercing localized voice/tone alarms cut through heavy diesel cabin background noise.
Automated Telemetry Synchronization: Incident status, timestamp, and speed telemetry are routed to fleet dispatch centers.

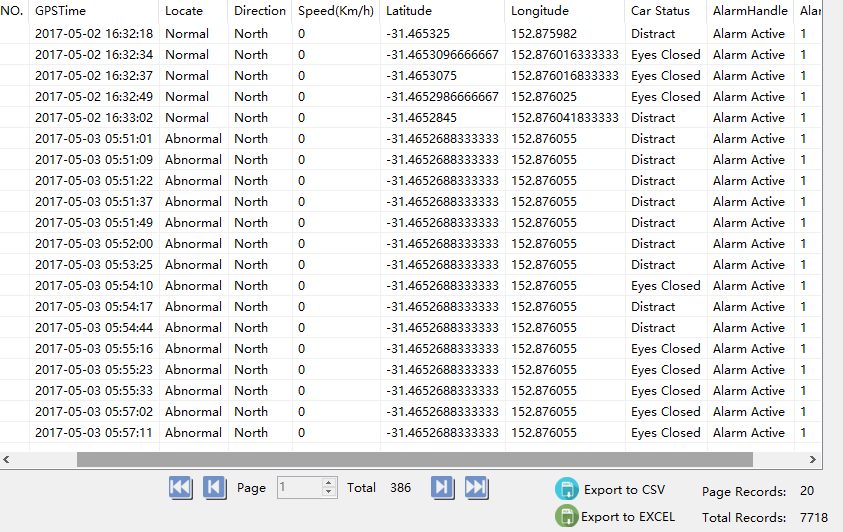

Telematics & Software Interface: Networked multi-channel Mobile DVR telematics console and fleet management interface.

5. Field Verification & Fleet Safety Outcomes

Across the operational deployment lifecycle, active fleet safety metrics confirmed decisive improvements:

Safest Fleet Recognition:

Supported the fleet's industry award for Australia's safest long-haul commercial transport carrier.

Dramatic Reduction in Fatigue Events:

In-cab alerts and driver fatigue training reduced prolonged eyelid closure events by over 70%.

Unbroken Out-Back Telematics Recording:

Ruggedized hardware operated continuously in cabin temperatures exceeding +50°C during desert summer operations.

6. Technical Architecture Specifications

System Composition	DMS + ADAS + MDVR full commercial vehicle safety ecosystem
Operating Temperature	-20°C to +70°C extreme Outback climate tested
Video Storage	2TB automotive-grade lockable storage with automated overwriting
Telematics Uplink	High-gain 4G LTE antenna with dual-mode GPS/GLONASS tracking
