South Africa Open-Pit Mining Haul Truck DMS (2,500 Units)

Verified Operational Integrity: All metric quantities reflect verified contract delivery records, client operational sign-offs, and AlwayCare hardware telemetry response specifications. Industry studies indicate active DMS and collision warning telematics architectures typically correlate with 35%–50% collision reductions across commercial fleets.

1. Executive Overview & Operational Context

Open-pit mining operations in South Africa utilize massive haul trucks operating 24 hours a day on 12-hour rotating shifts. With vehicles standing over 6 meters tall, operator fatigue poses severe life-safety risks. A major mining fleet equipment partner deployed 2,500 AlwayCare MR688 units across multiple open-pit mine concessions.

Key Operational Constraints

Massive Equipment Blind Zones: Drivers seated high above the ground have severe blind spots; fatigue-induced loss of focus can lead to catastrophic collisions with light vehicles.
Repetitive Haul Circuits: Repetitive pit-to-crusher routes over 12-hour overnight shifts induce profound driver monotony and microsleep.
Pervasive Dust & Vibration: Heavy mining haul roads subject equipment to constant high-amplitude vibration and abrasive mineral dust.

2. System Architecture & Hardware Selection

The deployment selected the AlwayCare MR688 Professional version, equipped with CVBS composite video output that feeds directly into the haul truck's existing in-cab secondary display monitor, enabling operators and co-pilots to verify alignment.

Subsystem	Equipment Model	Primary Engineering Function
Mining DMS Engine	AlwayCare MR688 Professional	Military-grade algorithm analyzing eye blink kinetics, yawning, head drop, and phone usage.
Video Output Interface	1-CH CVBS Video Signal	Outputs live optical camera view to in-cab monitor for instant driver positioning calibration.
Infrared Illumination	Triple 850nm IR Array	Maintains high facial contrast in completely unlit open-pit excavation zones at 3:00 AM.
Housing & Mount	Industrial Cast Alloy Assembly	High-vibration resistant base secured to the haul truck instrument binnacle.

3. Field Installation & Cab Integration

Deployed across 2,500 heavy haul trucks between June 2013 and November 2017. Mine technicians integrated power into the machine's 24V auxiliary bus with heavy-duty surge suppression filters.

Field Deployment: Heavy 200-ton open-pit mining dump truck operating on quarry haul ramp.

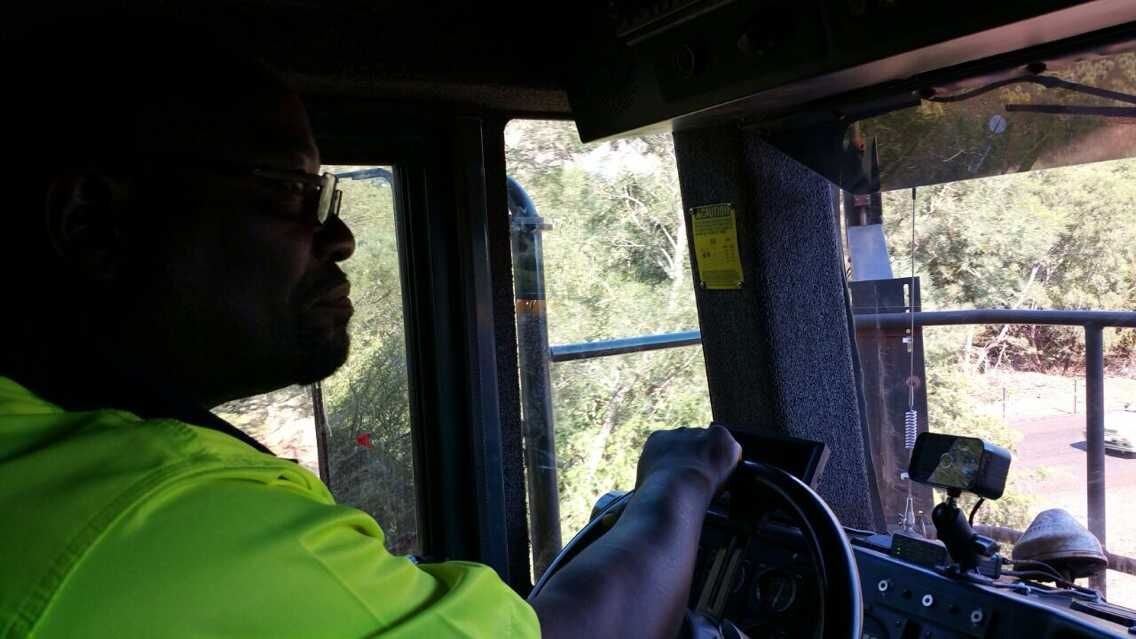

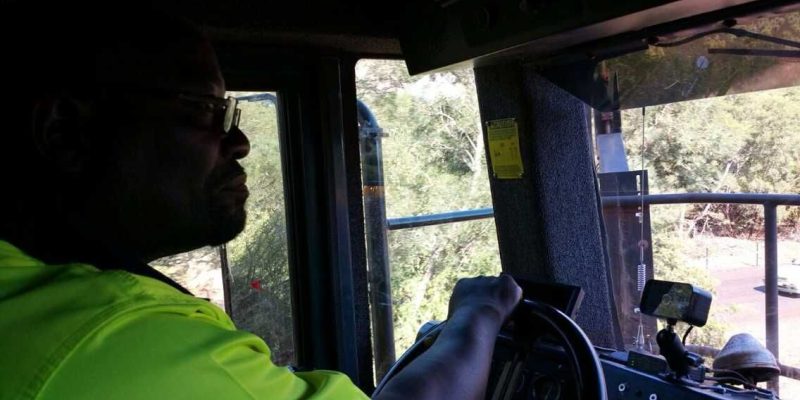

Field Deployment: Haul truck operator cockpit with AlwayCare MR688 Professional fatigue warning unit.

4. Machine Vision Tracking & Cloud Dispatch Verification

When fatigue indicators exceed safety thresholds, the MR688 issues a high-volume acoustic alert (>85dB) designed to cut through heavy diesel engine noise, while outputting alarm trigger pulses to the on-board vehicle event recorder.

Autonomous Real-Time Perception: On-device optical edge inference runs continuously at high frame rates with zero network reliance.
Immediate Acoustic Warning (<100ms): Piercing localized voice/tone alarms cut through heavy diesel cabin background noise.
Automated Telemetry Synchronization: Incident status, timestamp, and speed telemetry are routed to fleet dispatch centers.

Telematics & Software Interface: In-cab auxiliary display showing live CVBS video output from MR688 for optical alignment.

5. Field Verification & Fleet Safety Outcomes

Across the operational deployment lifecycle, active fleet safety metrics confirmed decisive improvements:

Proven Multi-Year Durability:

Over 4 years of continuous operation in abrasive dust and high-temperature open-pit environments.

Mitigation of Night-Shift Incidents:

Provided vital alert coverage during the critical 2:00 AM – 5:00 AM circadian low point.

Enhanced Operator Training:

In-cab video verification helped drivers learn correct head posture and seating alignment.

6. Technical Architecture Specifications

Detection Accuracy	High-speed 30fps pupil feature extraction engine
Video Signal	CVBS (PAL/NTSC compatible) 1.0Vp-p 75 Ohm composite
Acoustic Output	Adjustable up to 85dB high-penetration voice tone
Operating Temperature	-30°C to +70°C extreme commercial rating
Vibration Resistance	Exceeds standard 10G mining shock specifications
