MR910-D DMS with 5-Channel Mobile DVR

Share
Categories	DMS (Driver Monitoring System)
Brand	AlwayCare Commercial Fleet Safety Manufacturer
Model	MR910-D
Voltage	12/24V
Video Record Resolution	1920x1080
Satellite Positioning	Support GPS and BD (Beidou) dual-mode positioning
Optional	I/O or RS232
Wireless Communication	4G or Wifi
Storage	512GB SD Card
Video Encoding	H.264/H.265
Application	Suitable for All Vehicles
Operating Temperature	-20℃ ~ 70℃
Warranty	15 Months

MODEL: MR910-D

MR910-D DMS with 5-Channel Mobile DVR

Driver monitoring combined with a multi-channel mobile DVR and fleet connectivity — in-cab alerts, 1080p video evidence and remote operational visibility in one platform.

Inquire

15 Months Warranty 1920×1080 Recording 12/24V Vehicle Power

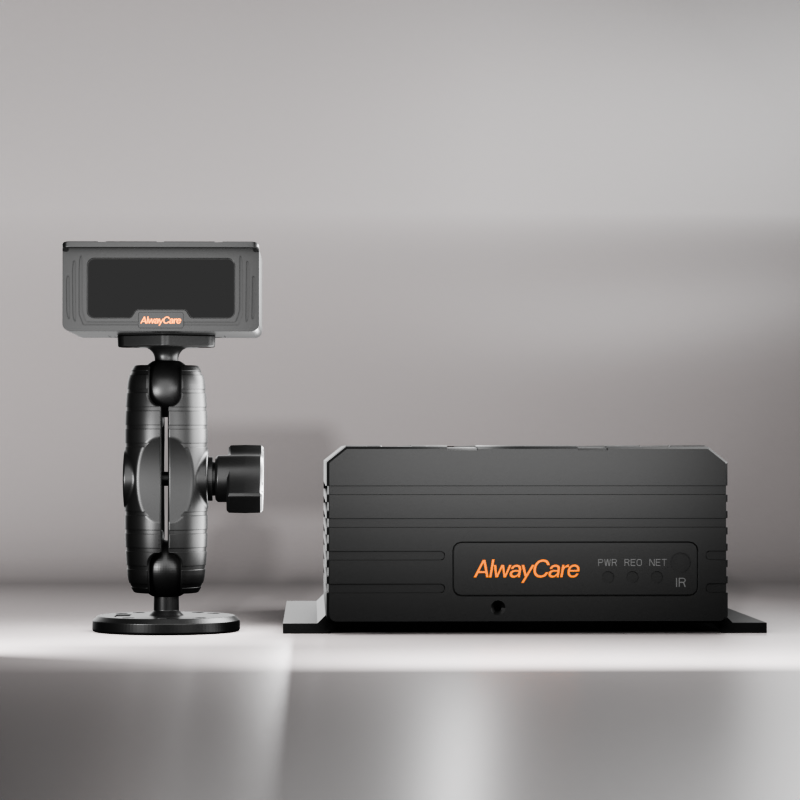

MR910-D DMS with 5-Channel Mobile DVR main product view

MR910-D recorder housing with mountable DMS camera

MR910-D rear panel with RJ45, GPS, 4G, WIFI, I/O and AV connectors

MR910-D capability map covering DMS, TF card storage, GPS positioning, IP voice and platform

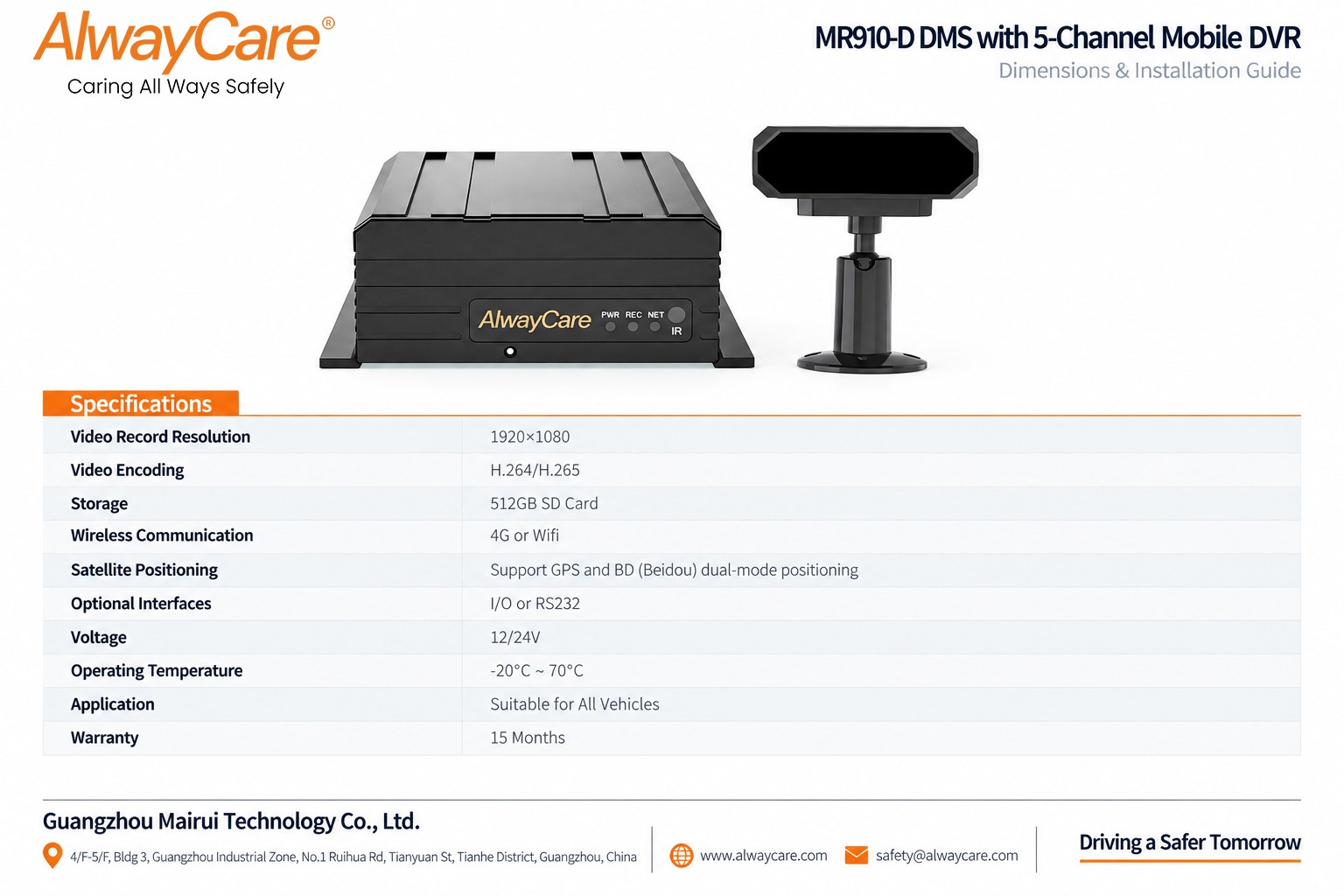

Technical Data

Technical Specifications

Values follow the current product record — your quotation confirms the exact configuration, interfaces and accessories.

Video Record Resolution	1920x1080
Video Encoding	H.264/H.265
Storage	512GB SD Card
Wireless Communication	4G or Wifi
Satellite Positioning	Support GPS and BD (Beidou) dual-mode positioning
Optional Interfaces	I/O or RS232
Voltage	12/24V
Operating Temperature	-20°C ~ 70°C
Application	Suitable for All Vehicles
Warranty	15 Months

Product Highlights

What MR910-D Delivers

Four capability groups, each taken from the current product record and the published capability map.

Driver-Behavior Detection & Alerts

In-cab monitoring raises audible prompts when supported driver-state events are detected.

Fatigue and yawning: core drowsiness indicators monitored in the cab.
Distraction events: phone use, smoking and loss of forward attention.
Further conditions: seat-belt, driver abnormality and camera blocking or failure.

MR910-D DMS camera and mobile DVR recorder

1080p Recording & Evidence Storage

Full-HD video with up to 512GB SD-card storage keeps event footage usable for review and claims.

1920x1080 resolution for clear in-cab documentation.
H.264/H.265 encoding balances image quality and file size.
512GB SD-card storage supports long retention windows.

MR910-D rear panel with PWR, RJ45, GPS, 4G, WIFI, I/O 232/485, AV OUT and CAM1-4

Multi-Channel Recording & Interfaces

The published rear panel shows the connector set available for camera and vehicle-system integration.

Camera inputs: AV OUT and CAM1-4 labelled on the panel.
Network and positioning: RJ45, GPS, 4G and WIFI connectors.
Vehicle interfaces: I/O 232/485 for integration with onboard systems.

MR910-D capability map covering DMS, storage, GPS, IP voice and platform

Remote Fleet Operations & Platform

Supported configurations connect the vehicle to a fleet platform for live oversight and review.

Remote video monitoring: live view and event review through the platform.
GPS positioning: vehicle location alongside recorded events.
IP voice and app debugging: two-way voice plus mobile-app configuration.

Applications

Where MR910-D Fits

Typical fleet profiles for a combined DMS and multi-channel recording platform — select a scenario to see how the configuration adapts.

Fleet 01Truck Fleets Fleet 02Buses & Coaches Fleet 03Industrial Vehicles

Red tractor-trailer with white trailer running a long-haul logistics route on a highway

Truck Fleets

Combine driver monitoring, road evidence and remote fleet oversight across long-haul and regional routes.

Driver-event alerts for fatigue, distraction and phone use.
1080p event footage supports review and insurance claims.
Optional CMS access on 4G versions for fleet managers.

City transit bus in urban passenger service

Buses & Coaches

Monitor driver events and multiple camera views from one platform across passenger service schedules.

Multi-channel views cover driver and passenger areas.
IP voice intercom supports in-vehicle communication.
Remote review of events for depot-level supervision.

Mining haul trucks operating on a quarry haul road

Industrial Vehicles

Configure a rugged multi-camera safety workflow for controlled-site fleets.

-20°C ~ 70°C operation handles harsh site conditions.
12/24V input fits common commercial-vehicle electrical systems.
I/O or RS232 connects selected onboard equipment after review.

Product Video

See MR910-D in Context

The official AlwayCare MR910-D product video showing the DMS camera and mobile DVR in vehicle-operation use.

Why AlwayCare

Built for Long-Term Fleet Programs

Factory Direct Supply

Order through the manufacturer — configuration, firmware and accessory questions reach the engineering team directly.

Certification Confirmed per Version

Certification and test documentation for the selected version are confirmed in your quotation — request the applicable files.

15-Month Warranty

Coverage that goes beyond the standard 12-month term, honored through your dedicated account manager.

OEM & Firmware Support

Logo, packaging, firmware behavior and interface customization for your market and fleet platform.

How It Works

From Inquiry to Delivery in Four Steps

A clear path from first contact to units running in your fleet — no obligation at the evaluation stage.

Share Your Requirements

Send fleet size, vehicle models and target functions through the inquiry form or to your account manager.

Configuration & Quotation

Our engineers map your needs to the right MR910-D configuration and issue a formal quotation.

Sample Evaluation

Sample units are available for road testing before you commit to a bulk order — evaluate first, decide later.

Production & Delivery

Bulk orders ship with factory QC reports, export documents and the 15-month warranty from dispatch.

Technical Resources

Documents & Downloads

Everything your engineering and procurement teams need for evaluation.

On Request

Product Datasheet

Full specifications and ordering information — request the current MR910-D datasheet.

Request Datasheet

On Request

Certificates & Test Reports

Certification and third-party laboratory reports for the selected version and target market.

Request Certificates

On Request

User Manual & Installation Guide

Wiring, mounting and configuration instructions — provided with sample orders.

Request Manual

On Request

CMS Software & Demo

Platform access for evaluation — connect supported 4G configurations to a live demo fleet.

Request Demo Access

Buyer Questions

Frequently Asked Questions

Can't find your answer? Our engineers reply within one business day — email safety@alwaycare.com or send an inquiry.

Is MR910-D a 5-channel system?

It is marketed as a 5-channel DMS/MDVR solution, but the older family table describes a 4-channel MDVR base plus a DMS camera. Confirm the physical connectors and channel allocation for the quoted configuration.

Which DMS events are listed?

The source lists fatigue, yawning, phone use, smoking, distraction, seat-belt, camera blocking/failure and additional abnormal-condition alerts.

What storage is listed?

The current attributes list up to 512GB SD-card storage. Recording time depends on active channels, resolution, encoding, frame rate and event settings.

Does it support remote monitoring?

Supported configurations list 4G or Wi-Fi, GPS/Beidou, app/web access, video monitoring, event review and voice intercom.

Can external sensors be connected?

The source mentions oil-level and tire-related sensor workflows plus optional I/O or RS232. Confirm compatible sensor models and protocols.

What should a project specification include?

Define vehicle type, camera count, channel allocation, retention period, network region, platform features, sensor interfaces and installation environment.
