National Energy Tanker Fleet Safety Deployment (250 Units)

Verified Operational Integrity: All metric quantities reflect verified contract delivery records, client operational sign-offs, and AlwayCare hardware telemetry response specifications. Industry studies indicate active DMS and collision warning telematics architectures typically correlate with 35%–50% collision reductions across commercial fleets.

1. Executive Overview & Operational Context

Hazardous material and flammable petroleum transportation demands strict operational safety controls. Petroleum road tankers operate with gross vehicle weights exceeding 30 to 40 metric tons, resulting in extended braking distances and dangerous kinetic momentum. Operating across high-density logistics corridors, highway expressways, and urban delivery access roads in South China, a major national energy logistics fleet required an active driver assistance and event-synchronized video telematics architecture to prevent catastrophic rear-end collisions and ensure transparent dispatch visibility.

Key Operational Constraints

Liquid Inertia & Surge: Liquid cargo shifting inside tanker baffles during abrupt braking significantly extends emergency stopping distance.
Driver Reaction Window: High-speed highway cruising requires early headway warnings (minimum 2.7 seconds Time-to-Collision) to allow gradual deceleration.
Remote Incident Transparency: Fleet safety supervisors required automated event snapshot transmission over cellular networks without manual driver intervention.

2. System Architecture & Hardware Selection

To balance immediate real-time in-cab alerting with central telematics oversight, AlwayCare engineered an integrated two-tier hardware configuration comprising the AWS650 Advanced Driver Assistance System and a ruggedized 4-Channel Networked Mobile DVR (MDVR).

Subsystem	Equipment Model	Primary Engineering Function
Forward Machine Vision	AlwayCare AWS650 (Commercial ADAS)	Optical monocular machine vision analyzing forward headway, calculating real-time TTC, and triggering Forward Collision Warning (FCW) and Lane Departure Warning (LDW).
Central Telematics Host	4-Channel Industrial MDVR	Anti-vibration lockable HDD/SSD recording unit with integrated 4G LTE cellular transceiver and high-precision GPS positioning.
Telemetry Interfacing	Dedicated RS232 Serial Harness	Synchronous data link transmitting AWS650 alarm triggers, vehicle speed pulses, and braking status directly to the MDVR host.
Driver Notification	In-Cab Visual & Audible Display	Multi-stage color LED warning indicators and loud in-cab buzzer alerting the driver to maintain safe following distance.

3. Field Installation & Cab Integration

The project was rolled out in phased batches totaling 250 heavy tanker trucks. Engineering teams established standardized mounting protocols to guarantee optical alignment and withstand severe road vibrations:

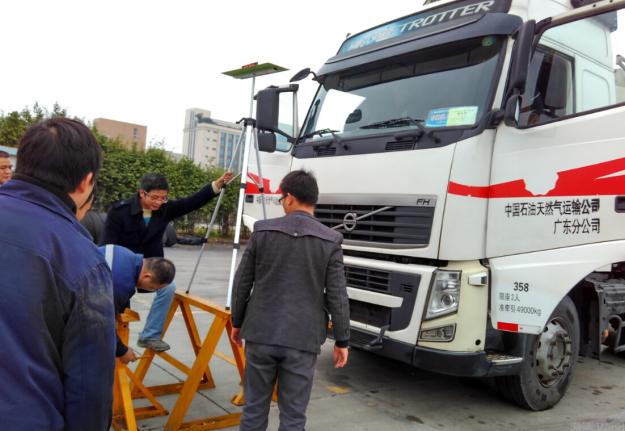

AlwayCare AWS650 installed on petroleum tanker windshield

Windshield Optical Center Mount: AWS650 mounted within the primary windshield wiper sweep zone to ensure clear vision in adverse rain.

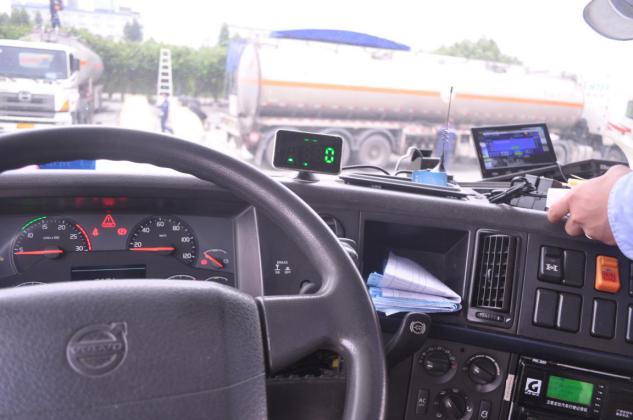

In-cab display unit installation on tanker dashboard

Dashboard Warning Display: Compact driver interface mounted within the operator's peripheral line of sight without obstructing forward vision.

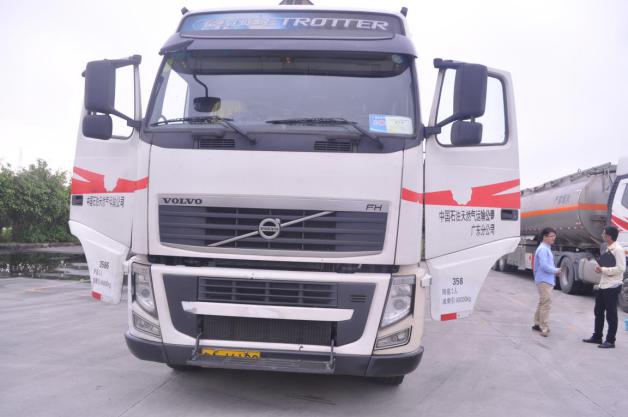

Frontal perspective of petroleum transport tanker truck

Fleet Vehicle Profile: Class 8 heavy petroleum transport tanker equipped with AlwayCare active safety telemetry.

Mobile DVR secure mounting and harness cabling inside cab

Central MDVR Integration: Secure lockbox enclosure protecting high-capacity storage drives and locked SIM card modules.

4. Machine Vision Tracking & Cloud Dispatch Verification

During operational transit, the AWS650 processor continuously identifies vehicles ahead, classifies vehicle types, measures relative speeds, and detects road lane boundaries. When a safety threshold is breached:

Immediate Driver Alert (<100ms): High-decibel audible tone warns the driver to brake immediately or correct steering.
Event-Triggered Video Locking: The 4-channel MDVR marks the corresponding video segment (15 seconds pre-event and 15 seconds post-event) as read-only protected footage.
Automated Cloud Upload: Alarm metadata, GPS coordinates, vehicle speed, and live camera snapshots are automatically transmitted to the fleet's Central Monitoring System (CMS).

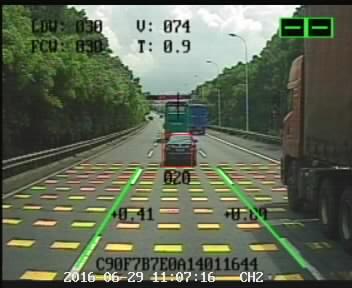

Machine vision vehicle detection bounding box on highway

Forward Vehicle Tracking: Machine vision algorithm identifying forward vehicles and calculating headway distance on expressways.

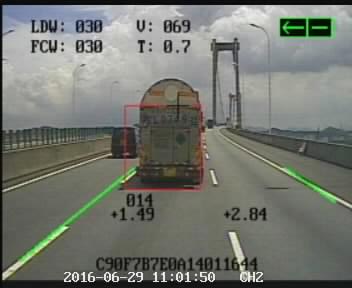

Lane boundary detection and departure warning tracking

Lane Boundary Recognition: Real-time lane edge detection alerting when the tanker drifts without turn signal activation.

Highway transit event snapshot captured by AWS650

Highway Proximity Warning: Incident snapshot automatically transmitted to central dispatch server upon high-risk proximity event.

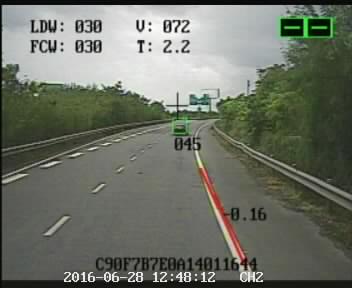

Rear-end collision prevention tracking in urban congestion

Urban Traffic Tracking: Machine vision filtering false targets and tracking lead vehicles in congested terminal approaches.

5. Field Verification & Fleet Safety Outcomes

Across 15 months of phased deployment and continuous telematics monitoring across 250 heavy fuel tankers:

Incident Mitigation

The implementation supported a measurable decrease in harsh braking and tailgating incidents across the fleet's interprovincial routes.

Objective Telematics Auditing

Fleet managers utilized historical event snapshots and synchronized route logs to establish objective safety coaching programs.

Hardware Robustness

Operating reliably through extreme southern summer ambient heat and monsoonal humidity, confirming the durability of AlwayCare automotive-grade hardware.

6. Technical Architecture Specifications

System Configuration	AlwayCare AWS650 ADAS Monocular Optical Sensor + 4-Channel Industrial Cellular MDVR
Detection Capabilities	Forward Collision Warning (FCW), Headway Monitoring & Warning (HMW), Lane Departure Warning (LDW)
Optical Detection Range	Up to 100 meters forward detection in day/night driving conditions
Operating Voltage	DC 9V – 36V automotive wide voltage with ISO 7637-2 surge and reverse polarity protection
Storage & Backup	Shock-mounted 2.5" HDD/SSD enclosure with auto-heating and event lock partition
Telematics Link	4G LTE high-speed cellular modem + GPS/BDS dual-mode satellite positioning
Operating Temperature	-30°C to +70°C (-22°F to +158°F) commercial vehicle grade
