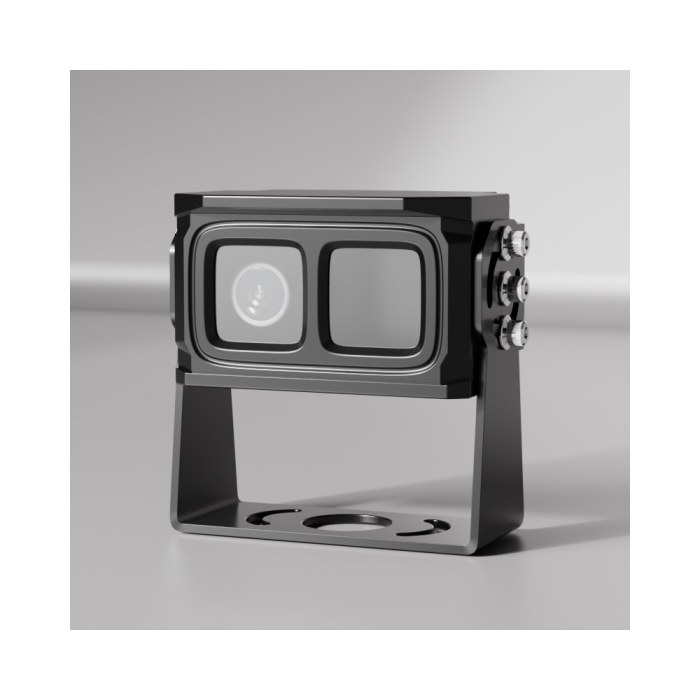

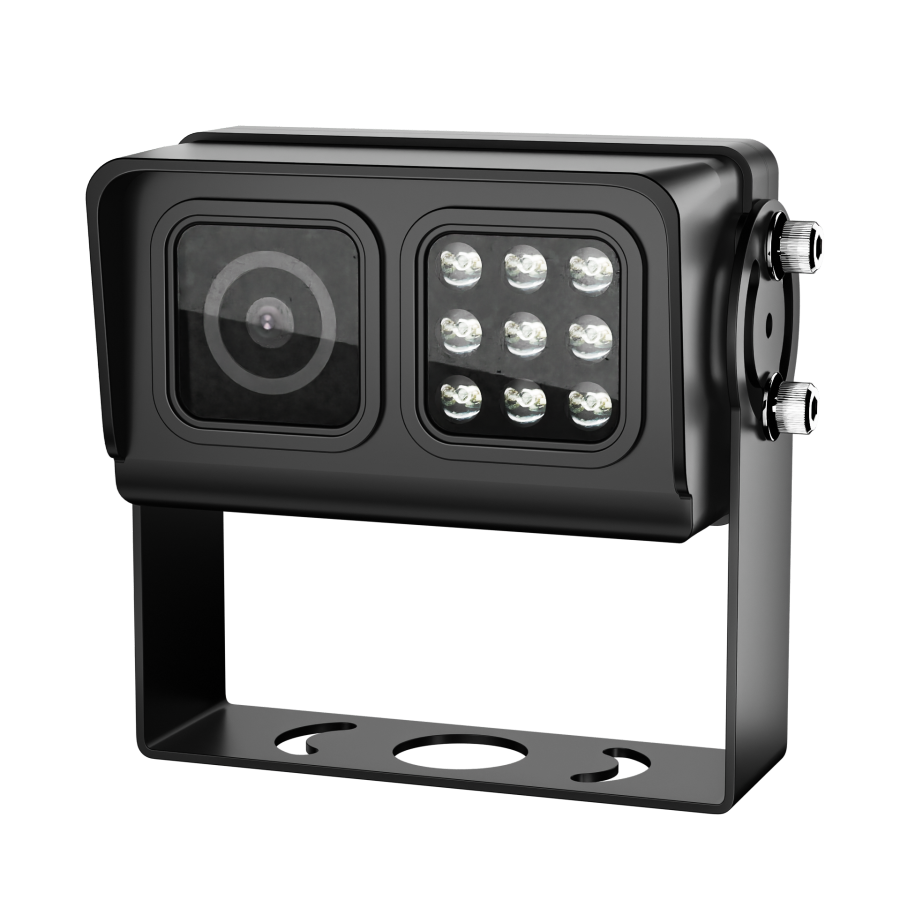

CC1003-AHD20 Heavy-Duty AI Blind Spot Recognition Camera
| Share | |
|---|---|
| Categories | BSD (Blind Spot Detection System) |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Model | CC1003-AHD20 |
| Resolution | 1080P Full HD |
| AI Detection Engine | Blind Spot Pedestrian / Cyclist Detection |
| Waterproof Rating | IP69K High-Pressure Wash Proof |
| Connector Type | 4-Pin Aviation Threaded Lock |
| Operating Voltage | DC 12V ± 6% |
| Night Vision | Integrated IR Night Vision |
| Operating Temperature | -20℃ ~ +70℃ |
CC1003-AHD20 Heavy-Duty AI Blind Spot Recognition Camera
Heavy-duty AI blind spot camera with real-time pedestrian and cyclist detection in an IP69K metal housing.

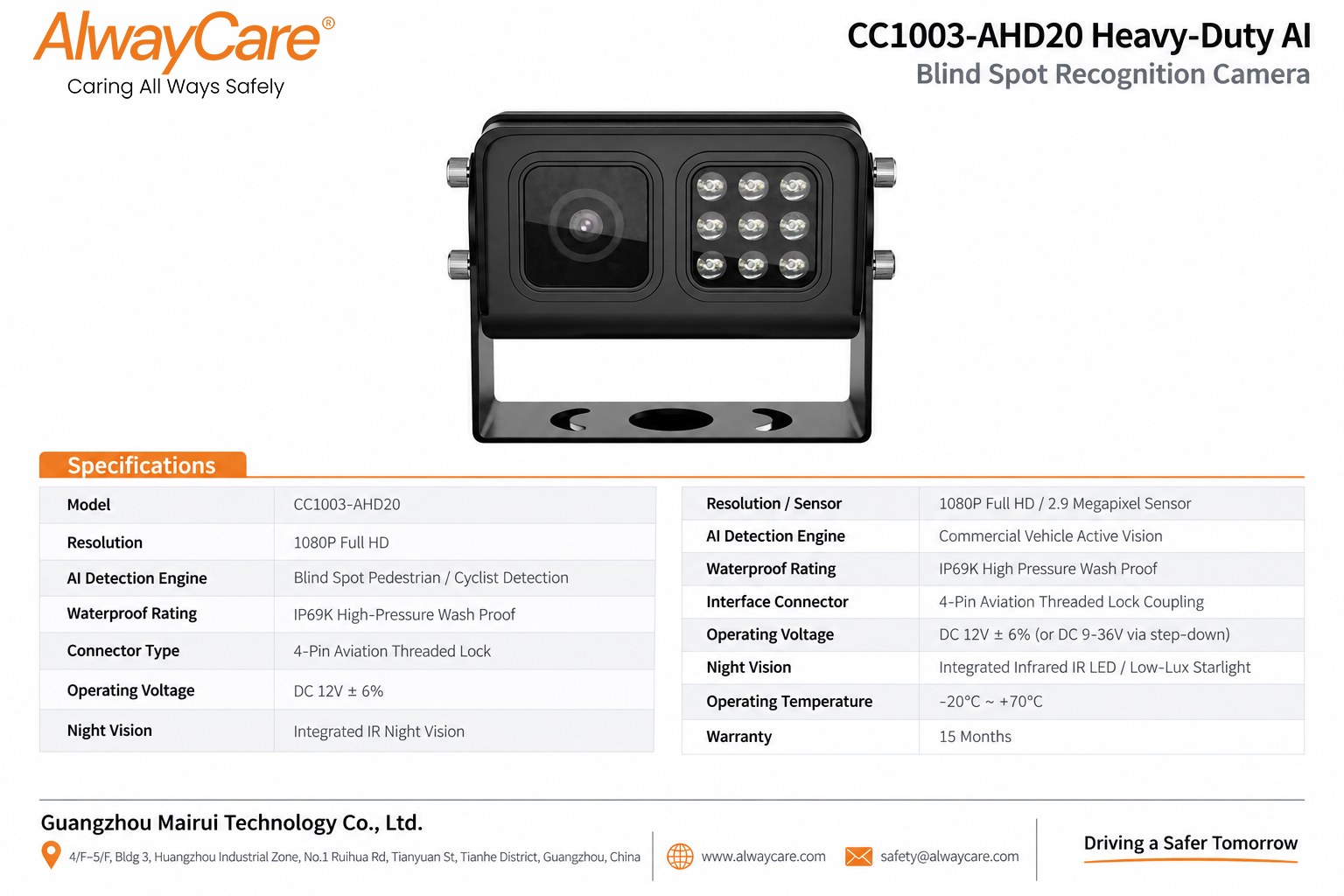

Technical Specifications
Values follow the factory datasheet — your quotation confirms the exact configuration.
| Model | CC1003-AHD20 |
|---|---|
| Resolution | 1080P Full HD |
| AI Detection Engine | Blind Spot Pedestrian / Cyclist Detection |
| Waterproof Rating | IP69K High-Pressure Wash Proof |
| Connector Type | 4-Pin Aviation Threaded Lock |
| Operating Voltage | DC 12V ± 6% |
| Night Vision | Integrated IR Night Vision |
| Operating Temperature | -20℃ ~ +70℃ |
| Resolution / Sensor | 1080P Full HD / 2.9 Megapixel Sensor |
| AI Detection Engine | Commercial Vehicle Active Vision |
| Waterproof Rating | IP69K High Pressure Wash Proof |
| Interface Connector | 4-Pin Aviation Threaded Lock Coupling |
| Operating Voltage | DC 12V ± 6% (or DC 9-36V via step-down) |
| Night Vision | Integrated Infrared IR LED / Low-Lux Starlight |
| Operating Temperature | -20℃ ~ +70℃ |
What CC1003-AHD20 Delivers
Capability groups verified against the official product record — scope details are confirmed in your quotation.
1080P Full HD Imaging & Detection
Integrated IR Night Vision
- AI BSD Recognition: Real-time detection of pedestrians, cyclists, and moving obstacles.
- 1080P HD Video: Crisp high-definition imaging for active side and blind-zone protection.
- Integrated IR Night Vision: High-power infrared LEDs provide clear night surveillance.

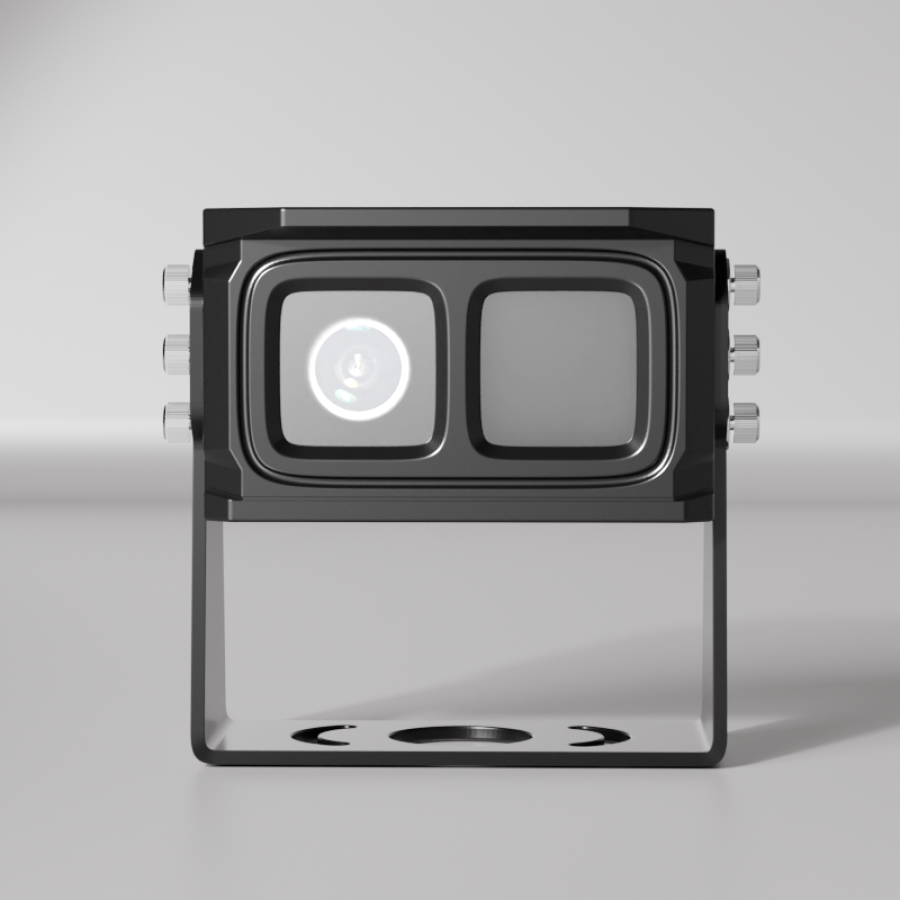

Connectivity & Positioning
4-Pin Aviation Threaded Lock Coupling
- Locking Aviation Coupler: Threaded 4-pin connector prevents loose wiring and signal loss.
- Heavy-Duty Mount: Rigid metal bracket withstands persistent chassis vibrations.

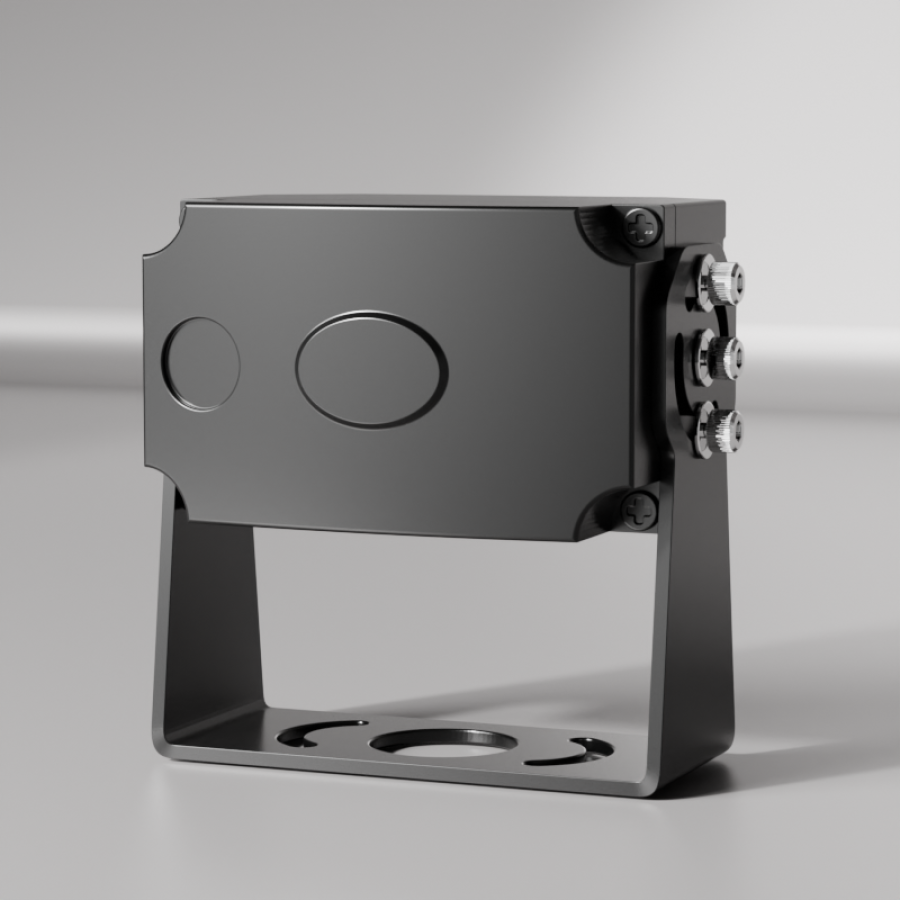

-20℃ ~ +70℃ Power & Operating Range
DC 12V ± 6%
- IP69K Waterproof Ingress: Hermetically sealed against high-pressure hot water washdowns.
- 12V DC Vehicle Power: Fleet-compatible power circuit with transient spike suppression.
Built for Long-Term Fleet Programs
Factory Direct Supply
Devices ship from our own production line, with engineering support from the team that builds them.
Certified & Lab Tested
CE, UKCA, RoHS and ISO 9001 — every platform is backed by third-party laboratory test reports.
15-Month Warranty
Coverage that goes beyond the standard 12-month term, honored through your dedicated account manager.
OEM & Firmware Support
Logo, packaging, firmware behavior and interface customization for your market and fleet platform.
From Inquiry to Delivery in Four Steps
A clear path from first contact to units running in your fleet — no obligation at the evaluation stage.
Share Your Requirements
Send fleet size, vehicle models and target functions through the inquiry form or to your account manager.
Version & Quotation
Our engineers map your needs to the right CC1003-AHD20 version and issue a formal quotation within one business day.
Sample Evaluation
Sample units are available for road testing before you commit to a bulk order — evaluate first, decide later.
Production & Delivery
Bulk orders ship with factory QC reports, export documents and the 15-month warranty from dispatch.
Documents & Downloads
Everything your engineering and procurement teams need for evaluation.
Product Datasheet
Full specifications and ordering information — request the current CC1003-AHD20 datasheet.
Request DatasheetCertificates & Test Reports
Certification and third-party laboratory reports for the selected version and target market.
Request CertificatesUser Manual & Installation Guide
Wiring, mounting and configuration instructions — provided with sample orders.
Request ManualCMS Software & Demo
Platform access for evaluation — connect supported configurations to a live demo fleet.
Request Demo AccessComplete the In-Vehicle Safety Stack
Product families commonly deployed alongside CC1003-AHD20 in the same fleet stack.
CC1003-AHD21 AI Thermal and Visible-Light Vehicle Ca...
Model CC1003-AHD21 — AI Camera for commercial fleets.
CC1002-BSD 1080P AI Blind Spot Detection Camera with...
Model CC1002-BSD — AI Camera for commercial fleets.
Frequently Asked Questions
Can't find your answer? Our engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
What distinguishes the CC1003-AHD20 from standard vehicle backup cameras?
Standard backup cameras only stream passive video to a screen, leaving collision prevention entirely to the driver's gaze. The CC1003-AHD20 features an onboard AI neural processing unit that actively detects pedestrians, workers, and cyclists in the vehicle's blind zone, instantly overlaying colored hazard bounding boxes and triggering acoustic alarms.
How does the heavy-duty metal housing handle severe mining, waste, and construction environments?
The CC1003-AHD20 is built with an ultra-rugged die-cast aluminum alloy shell with anti-corrosion coating and an IP69K hermetic seal. It is rated to withstand 100-bar high-pressure hot water washing, heavy mud splatter, rock chipping, and high-vibration off-road duty cycles.
What video outputs and display compatibility does the camera offer?
It outputs standard AHD 1080P @ 25/30 fps video via a threaded 4-pin aviation connector (GX12 standard), making it directly compatible with all commercial AHD monitors, quad-split displays, and Mobile DVR systems without proprietary decoders.
Can detection zones be customized for different vehicle body dimensions?
Yes. Warning zones can be calibrated to cover specific blind spot perimeters along the passenger side, front bumper, or rear tailgate of dump trucks, cement mixers, refuse haulers, and wheeled loaders.
What night vision capabilities are built into the optical assembly?
The camera features an automotive-grade low-light CMOS sensor combined with high-power infrared LEDs and an automatic optical IRCUT filter, delivering crisp black-and-white night imaging down to 0.01 Lux in complete darkness.
