Home / All / ADAS (Anti-Collision System) / AWS302 ADAS Collision Warning System for Fleets

AWS302 ADAS Collision Warning System for Fleets

Share
Categories	ADAS (Anti-Collision System)
Brand	AlwayCare Commercial Fleet Safety Manufacturer
Product Specifications	ADAS-AWS302
Voltage	12/24V
Video Record Resolution	1280x720
Satellite Positioning	Support GPS and BD (Beidou) dual-mode positioning
Optional	I/O or RS232
Wireless Communication	4G or Wifi
Storage	256GB TF Card
Video Encoding	H.264/H.265
Application	Suitable for All Vehicles
Operating Temperature	-20℃ ~ 70℃
Warranty	15 Months

AWS302 standalone ADAS provides forward-collision, pedestrian, lane-departure and headway warnings for commercial vehicles.

Contact Now

Add to Wishlist

Detail Information

ADAS · Standalone

AWS302 ADAS Collision Warning System for Fleets

ADAS-AWS302

AWS302 standalone ADAS gives forward-collision, pedestrian, lane-departure and headway warnings for commercial vehicles. It is a warning system only and does not control the vehicle.

Recording1280×720

Wireless4G or Wi-Fi

PositioningGPS + BeiDou

Storage256GB TF card

Power12/24V

Operating temp.−20℃ to 70℃

Get a Quote Request a Sample

↓ Download datasheet

15-month warranty
IATF 16949 certified factory
OEM / ODM customization
Suitable for all vehicles

Final configuration (interfaces, 4G module, add-ons) is confirmed in your quotation.

Overview

What AWS302 Delivers

Forward-road warnings and incident recording in one standalone unit.

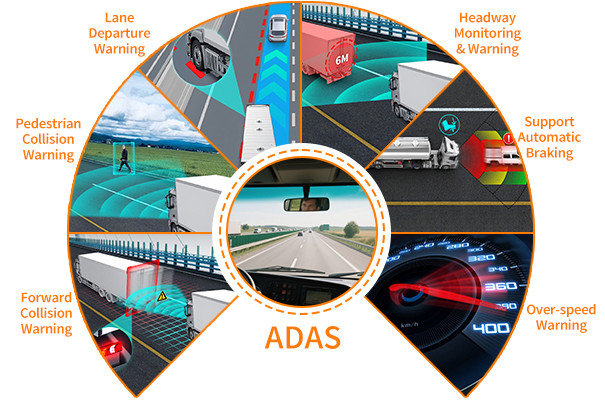

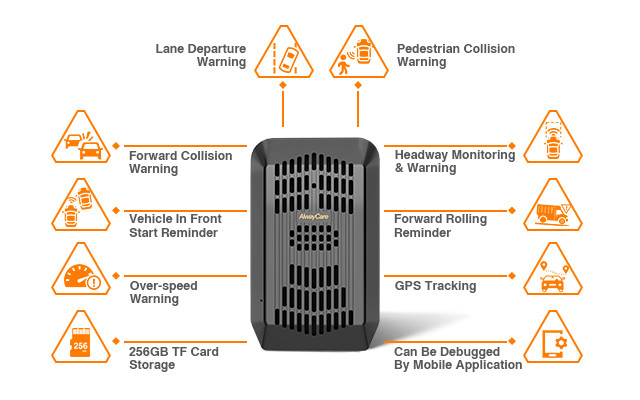

Forward warnings

Warns the driver of forward risks

A forward camera with onboard vision processing detects vehicles, pedestrians and lane lines ahead. It warns the driver only; it does not control the vehicle.

FCW forward collision warning
PCW pedestrian collision warning
LDW lane departure warning
HMW headway warning

Record

Records 720p incident video

Continuous road-facing video records to a TF card with H.264 / H.265 encoding as incident evidence.

1280×720 recording
Up to 256GB TF card
H.264 / H.265 encoding
GPS and BeiDou positioning

Connect

Works alone or with your terminal

The unit warns through an audible speaker on its own. I/O or RS232 interfaces and 4G or Wi-Fi connect it to an MDVR, a GPS terminal or a fleet platform.

Standalone audible warning
I/O or RS232 interface options
4G or Wi-Fi
Suitable for all vehicles

Drawing

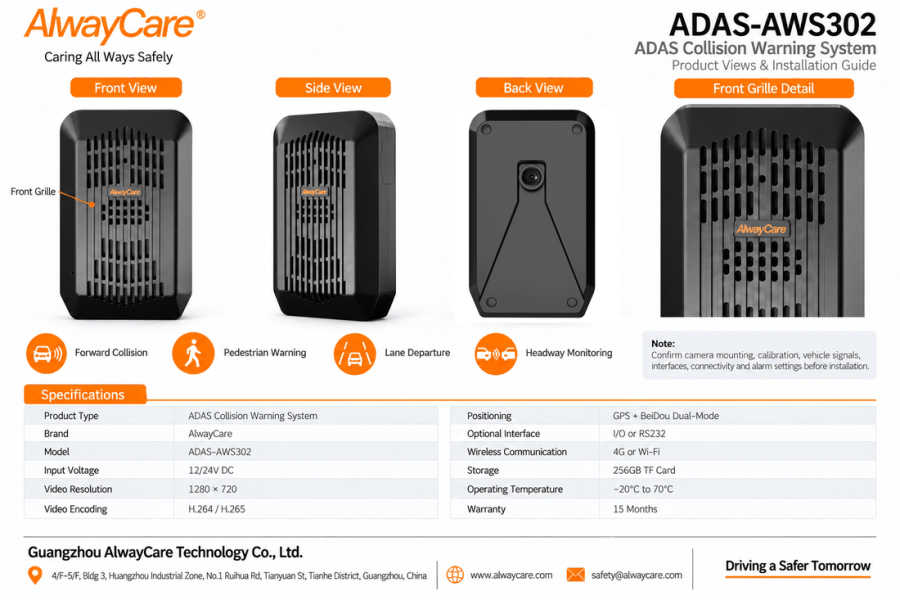

Specification drawing

Dimensions, wiring and interfaces for installation planning.

Engineering drawing
Wiring guidance on request
12/24V input
Operating temperature −20℃ to 70℃

Specifications

Technical Specifications

Values follow the factory datasheet. Your quotation confirms the exact configuration.

ADAS engine

Warnings (4): FCW forward collision, PCW pedestrian collision, LDW lane departure, HMW headway
Alert mode: Audible warning to the driver; the system does not control the vehicle
Turn-signal input: Where fitted, can reduce lane departure alerts during intentional lane changes

Video and storage

Video resolution: 1280×720
Encoding: H.264 / H.265
Local storage: 1 TF card, up to 256GB

Connectivity

Wireless: 4G or Wi-Fi
Positioning: GPS and BeiDou dual-mode
Interface: I/O or RS232 optional

Power and hardware

Voltage: 12/24V
Operating temperature: −20℃ to 70℃
Application: Suitable for all vehicles
Warranty: 15 months

Need the full engineering datasheet?Open the datasheet (PDF) →

Compare

AWS302 Versus Other ADAS Models

Values come from each product's factory datasheet.

Model	Type	Recording	Wireless	Storage	Optional interface
AWS302 (this model)	Standalone ADAS	1280×720	4G or Wi-Fi	256GB TF card	I/O or RS232
MR910-A	ADAS with 5-channel mobile DVR	1920×1080	4G or Wi-Fi	512GB SD card	I/O or RS232	View →
MR700	AI dashcam with ADAS and DMS	1920×1080	4G or Wi-Fi	512GB TF card	I/O or RS232	View →

Downloads

Documents

Files that exist for this model can be downloaded. The others are available from our engineers on request.

Product datasheetPDF · download

Download

Certificates and test reportsOn request

Request

User manual and installation guideOn request · provided with sample orders

Request

CMS platform softwareOn request · authorization confirmed in your quotation

Ask us

FAQ

Frequently Asked Questions

Need technical clarification? Email safety@alwaycare.com or send an inquiry.

How does AWS302 warn about collision risks?

A forward-facing camera with onboard vision processing detects vehicles, pedestrians and lane lines ahead. It issues FCW, PCW, LDW and headway warnings to the driver. It is a warning system only and does not control the vehicle. Warning timing depends on the configuration; confirm it in your quotation.

Can AWS302 work as a standalone unit?

Yes. It can warn the driver through an audible speaker. Optional I/O or RS232 interfaces connect it to a mobile DVR or a GPS terminal. Confirm the interface of your version in the quotation.

Which vehicles and windshields does it suit?

AWS302 is intended for commercial vehicles such as trucks, buses, delivery vans and municipal vehicles. Send us your vehicle model and windshield details and our engineers will advise on mounting and calibration.

How are nuisance alerts reduced?

Where the installation supports it, a turn-signal input can reduce lane departure alerts during intentional lane changes. Speed-related settings depend on the version; confirm them with our engineers.

What are the power and temperature ranges?

AWS302 runs on 12/24V vehicle power across an operating temperature of −20℃ to 70℃.

Which warranty applies?

AWS302 is supplied with a 15-month quality warranty. Sample units for road testing are available; contact us for details.
