MR830 All-in-One DMS with ADAS, BSD and Driver Fatigue Alerts
| Share | |
|---|---|
| Categories | DMS (Driver Monitoring System) |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Product Specifications | DMS-MR830 |
| Voltage | 12/24V |
| Video Record Resolution | 1920x1080 |
| Satellite Positioning | Support GPS and BD (Beidou) dual-mode positioning |
| Optional | I/O or RS232 |
| Wireless Communication | 4G or Wifi |
| Storage | 512GB TF Card |
| Size | 105*72*163mm |
| Application | Suitable for All Vehicles |
| Operating Temperature | -20℃ ~ 70℃ |
| Warranty | 15 Months |
MR830 All-in-One DMS with ADAS, BSD and Driver Fatigue Alerts
MR830 all-in-one DMS combines driver alerts, 1080p recording and optional ADAS, BSD, 4G and fleet-platform functions. Alerts go to the driver only; the system does not control the vehicle.
- 15-month warranty
- IATF 16949 certified factory
- OEM / ODM customization
- Suitable for all vehicles
Final configuration (version, ADAS, BSD, 4G module, interfaces) is confirmed in your quotation.
What MR830 Delivers
One unit for driver monitoring, road-risk warnings and recording.

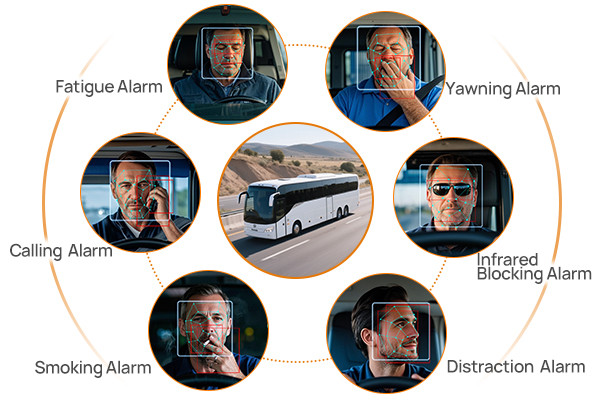

Alerts the driver to fatigue and distraction
The in-cab camera watches the driver and raises 14 types of DSM alarms through a built-in voice speaker. Alerts go to the driver only; the system does not control the vehicle.
- Fatigue, yawning and distraction
- Smoking and phone use
- No seatbelt, no mask, driver ID
- Camera blocking and camera failure

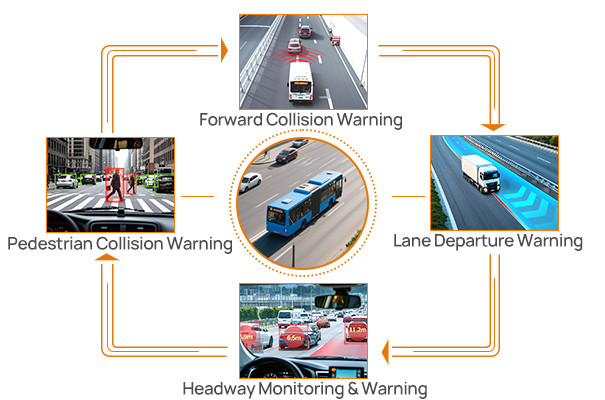

Adds forward and blind-spot warnings
The ADAS and ADAS + BSD versions add forward warnings. One-channel BSD monitors a selected blind zone for pedestrians and non-motor vehicles.
- FCW, LDW, HMW and PCW warnings
- One-channel BSD, position confirmed per vehicle
- Up to 4 video inputs
- Version confirmed in your quotation
Records 1080p and connects to your platform
Video records in 1920×1080 to a TF card, with GPS and BeiDou positioning and 4G for cloud CMS access on the platform versions.
- 1 to 4 video inputs by version
- Up to 512GB TF card, loop recording
- RS232 and I/O for host terminals
- Cloud CMS and mobile app configuration

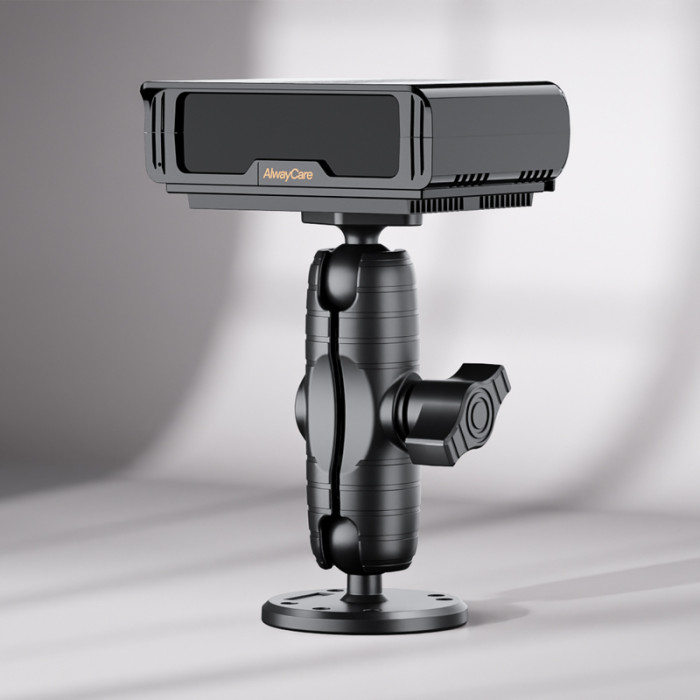

Ball-joint mount with a locking knob
A dual ball-joint arm adjusts to different windshield slopes and cab layouts, and a clamp lock holds the angle under road vibration. The housing is die-cast alloy.
- 360° adjustable arm
- Clamp lock against angle drift
- Die-cast alloy enclosure
- Suitable for all vehicles

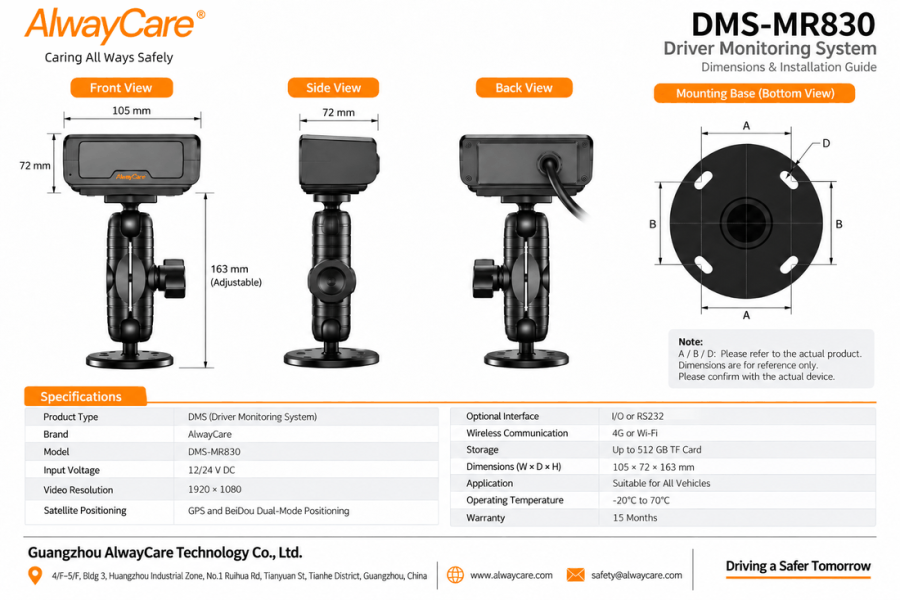

Compact body, 105 × 72 × 163mm
Dimensions and installation guidance for planning. Camera positions are confirmed per vehicle.
- Dimensions and installation guide
- Wiring guidance on request
- 12/24V input
- Operating temperature −20℃ to 70℃
Choose the MR830 Version
Eight versions share one hardware platform. Your quotation confirms the version, cameras and interfaces.
| Version | Video inputs | Video output | RS232 / I/O | 4G + CMS | ADAS | BSD | Best for |
|---|---|---|---|---|---|---|---|
| MR830-SVStandard | 1 (DSM) | — | — | — | — | — | Standalone in-cab voice alerts. No backend server, SIM card or wiring changes. |
| MR830-PVProfessional | 1 (DSM) | — | — | — | — | Sends alarm events over RS232/IO to your existing AVL terminal, mobile DVR or GPS tracker. | |
| MR830-PFPlatform | 1 (DSM) | — | — | — | — | Streams evidence clips, GPS tracking and statistics to the AlwayCare CMS cloud. | |
| MR830-PF-ProPlatform Pro | 1 (DSM) | — | — | Adds a CVBS/AHD output for an in-cab display, plus RS232/IO and 4G. | |||
| MR830-PF-MaxPlatform Max | 4 (1 DSM + 3 external) | — | — | — | — | Connects up to 3 external cameras for wider coverage, streamed to the cloud CMS. | |
| MR830-PF-Pro-MaxPlatform Pro Max | 4 | — | — | Four inputs, display output, RS232/IO and 4G cloud in one unit. | |||
| MR830-APADAS | 4 | — | — | — | Forward ADAS plus DSM, two external inputs, 4G and CMS. | ||
| MR830-APBADAS + BSD | 4 | — | — | DSM, forward ADAS and blind-spot BSD with 4G, CMS and mobile app calibration. |

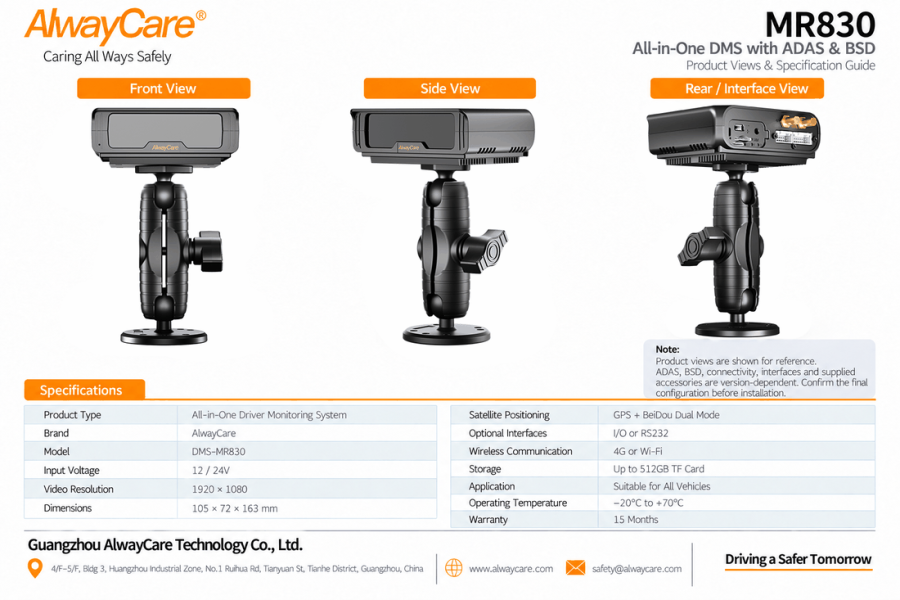

Technical Specifications
Values follow the factory datasheet. Your quotation confirms the exact configuration.
AI safety engines
- Core engines
- DSM + ADAS + BSD (by version)
- DSM alarms (14)
- Fatigue, yawning, distraction, no portrait or face occlusion, smoking, phone calling, driver overspeed, driver change, infrared blocking, camera lens blocking, camera failure, no mask, driver face ID, seatbelt unbuckled
- ADAS warnings (4)
- FCW forward collision, LDW lane departure, HMW headway, PCW pedestrian collision
- BSD
- One-channel camera for pedestrians, cyclists and non-motor vehicles in a selected blind zone
Video and storage
- Video resolution
- 1920×1080
- Video inputs
- 1 to 4 by version (DSM, ADAS, BSD and one universal camera)
- Video output
- 1-channel CVBS/AHD on PF-Pro and PF-Pro-Max
- Local storage
- 1 TF card, up to 512GB, loop recording and event locking
Connectivity and platform
- Wireless
- 4G or Wi-Fi
- Positioning
- GPS and BeiDou dual-mode
- Host interface
- RS232 serial and I/O trigger lines (I/O or RS232 optional)
- CMS platform
- Live tracking, route playback, remote live view and playback, alarm statistics, OTA parameter calibration, geofence and route-deviation alerts
- Configuration
- iOS / Android app for calibration, sensitivity and firmware upgrades
Power and hardware
- Voltage
- 12/24V
- Operating temperature
- −20℃ to 70℃
- Size
- 105 × 72 × 163mm
- Audio
- Built-in voice warning speaker; optional two-way voice intercom
- Warranty
- 15 months
Optional Expansion
Global 4G module
A regional 4G module is included by default. A full-band global module is optional for cross-border fleets.
CMS platform software
Platform authorization is listed in the standard components. Private server licenses and custom integration are available on inquiry.
Two-way voice intercom
Real-time voice between dispatch and the driver, with cabin audio recording on the DSM channel.
Custom voice packs
Custom languages, bilingual phrases and voice branding for volume deployments.
Vibration seat cushion
An external cushion connects to the MR830 output to give a tactile wake-up alert.
MR830 Versus Other DMS Models
Values come from each product's factory datasheet.
| Model | Type | Recording | Wireless | Storage | Optional interface | |
|---|---|---|---|---|---|---|
| MR830 (this model) | All-in-one DMS, optional ADAS and BSD | 1920×1080 | 4G or Wi-Fi | 512GB TF card | I/O or RS232 | |
| MR810 | Standalone DMS | 1280×720 | Wi-Fi | 512GB TF card | I/O or RS232 | View → |
| MR910-D | DMS with 5-channel mobile DVR | 1920×1080 | 4G or Wi-Fi | 512GB SD card | I/O or RS232 | View → |
Documents
Files that exist for this model can be downloaded. The others are available from our engineers on request.
Frequently Asked Questions
Need regulatory definitions or engineering standards? Email safety@alwaycare.com or send an inquiry.
What is the MR830-APB version?
MR830-APB combines DSM, ADAS, one-channel BSD, GPS, a country-specific 4G module, one additional universal camera input and TF-card storage. It is designed for customers who need driver-behavior and road-environment monitoring with platform-based review.
Which DSM alarms are supported?
The listed DSM alarms include fatigue, yawning, distraction, no portrait, smoking, calling, overspeed, driver change, infrared blocking, camera blocking, camera failure, no mask, driver ID identification and no seatbelt.
Which ADAS and BSD functions are included?
ADAS includes FCW, LDW, HMW and PCW warnings. One-channel BSD monitors a selected blind-zone position for pedestrians and non-motor vehicles; the side or vehicle position is confirmed during configuration.
How many cameras can be connected?
The system supports four video inputs: the DSM camera, ADAS camera, BSD camera and one additional 1080P/960P/720P universal camera. The additional camera can monitor the front, rear, side or cabin.
Is the CMS platform software included?
CMS platform authorization is listed in the standard components, but the platform software cost is not included in the quotation. Dedicated fleet server deployment, custom API integration, and self-hosted platform software licenses are available upon consultation with our engineering team.
What 4G configuration is supplied?
The default 4G communication module is country-specific. A global full-band LTE communication module is available as an option for multinational transport fleets.
Does the system support voice intercom?
Two-way driver-to-dispatch voice intercom and cabin audio recording for the DSM channel are available as an integrated hardware option. With this option, DSM video can include audio for TF-card recording, platform live view and playback.
What storage does MR830-APB use?
MR830-APB supports one TF card up to 512GB for regular videos, alarm pictures and alarm videos. Final card capacity and retention should be selected according to the vehicle duty cycle.
Which warranty applies?
MR830-APB is supplied with a 15-month quality warranty. Confirm the final service terms and destination-market coverage in the quotation.

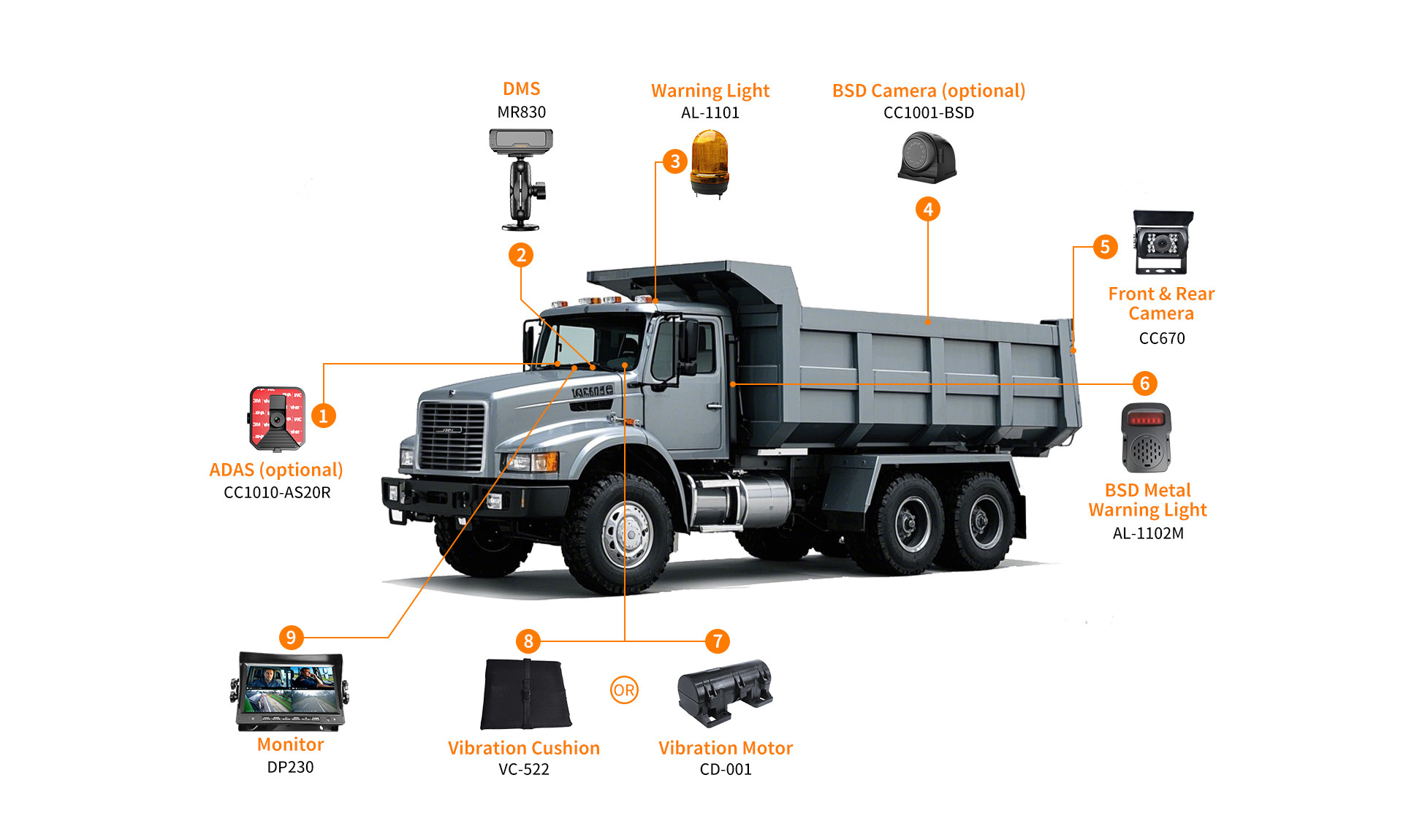

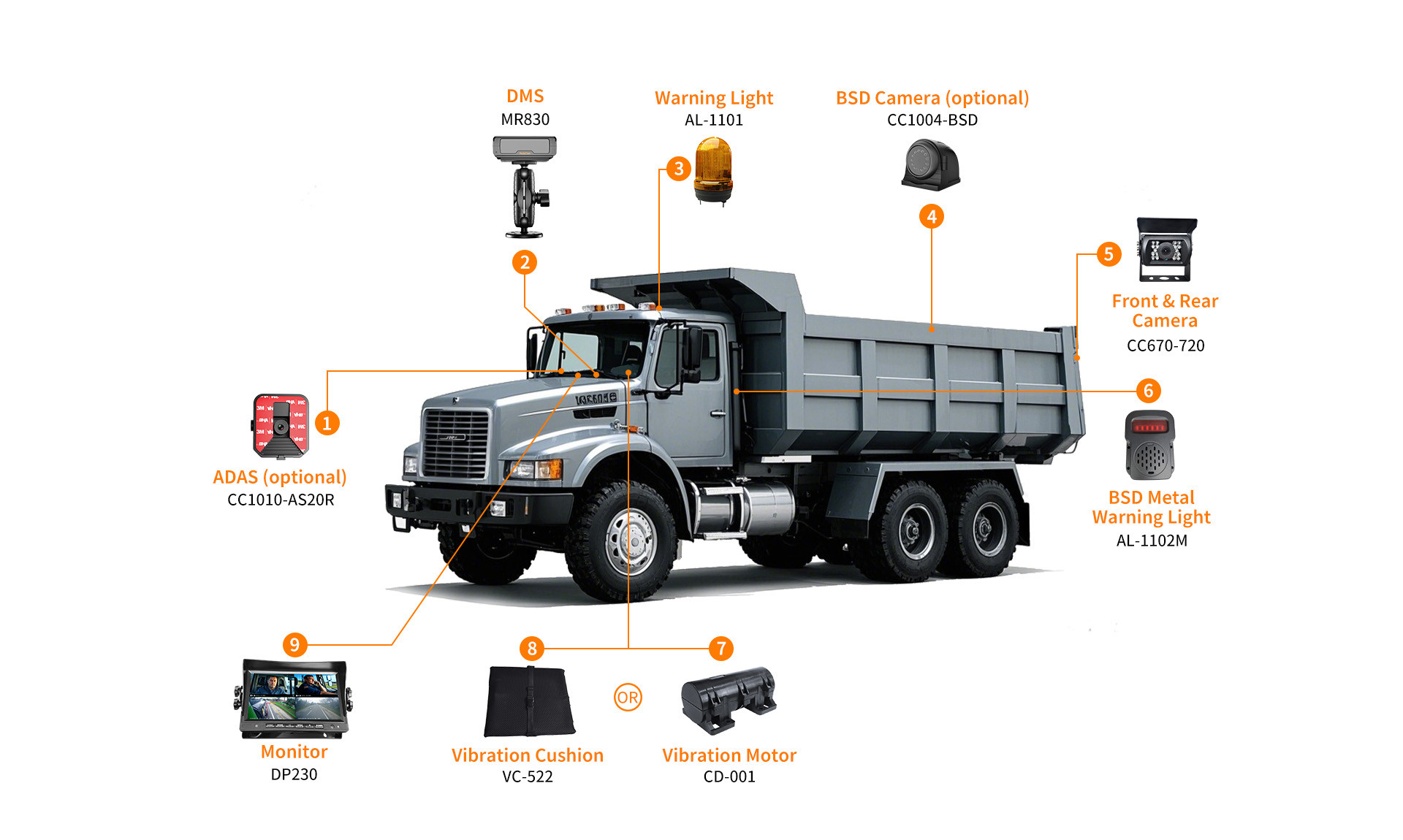

Complete the In-Vehicle Safety Stack
