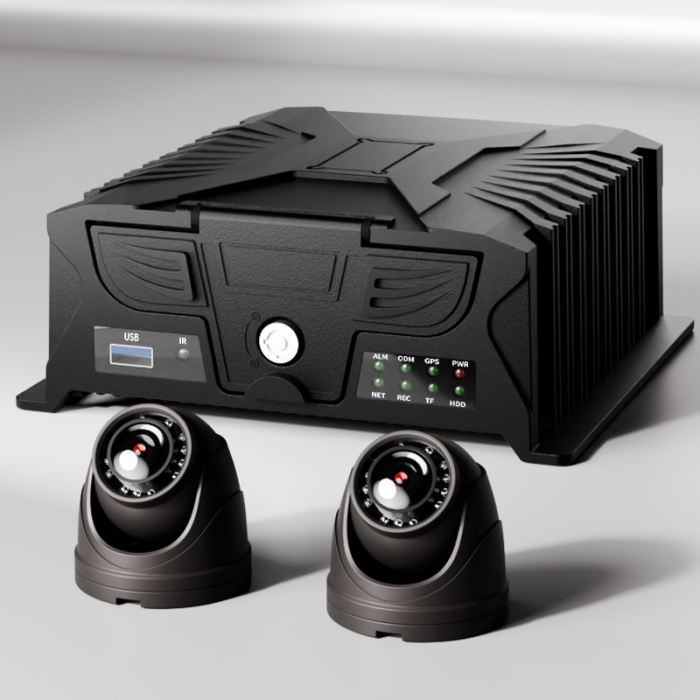

AI Dual-Camera Safety Drive | MDVR | 4CH Real-Time ADAS & Blind Zone Alerts MDVR | Mobile Digital Video Recorder | Fleet Risk Control Platform

Categories	APC (AI Passenger Counter)
Brand	AlwayCare Commercial Fleet Safety Manufacturer
Model	KL302
Voltage	12/24V
Video Record Resolution	1920x1080
Satellite Positioning	Support GPS and BD (Beidou) dual-mode positioning
Optional	I/O or RS232
Wireless Communication	4G or Wifi
Storage	512GB TF Card
Size	988835mm
Video Encoding	H.264/H.265
Application	Suitable for All Vehicles
Operating Temperature	-20℃ ~ 70℃
Warranty	2 years
Update Time	May 1,2025

Contact Now

Detail Information

KL302

● Supports 1-2 high-precision passenger counting, with an error rate of <0.5%, real-time passenger count and synchronization to the management platform to optimize the efficiency of bus/school bus dispatching.

● Combines facial recognition and behavior analysis technology to distinguish adult/child passengers and detect abnormal behavior (such as left-behind items), improving the active security capabilities of public transportation.

● H.265/H.264 intelligent encoding technology reduces storage usage by 70%, and 4-channel high-definition video and 512GB SD card + 2TB hard disk achieve 30-day continuous event video retention.

● Integrated DSM driver monitoring, ADAS lane departure warning and BSD blind spot detection functions, reducing accident risks in multiple dimensions, in line with commercial fleet safety certification standards.

● Optional CMS electronic rearview mirror system replaces traditional rearview mirrors and displays multi-camera fusion images, eliminating visual blind spots and supporting touch interaction.

● 4G/GPS/WiFi three-mode communication ensures real-time positioning and video feedback in remote areas. Managers can remotely review vehicle status and alarm records through the CMS platform.

● The modular design is compatible with 4/8 channel expansion, and can flexibly adapt to the differentiated monitoring needs of small and medium-sized buses to long-distance buses, reducing installation and maintenance costs by 40%.

(Integrating video analysis, communication protocols and extended hardware capabilities, highlighting the dual value of precise passenger flow management and active safety)

Technical Parameters

Item Type:		Fatigue Warning Alarm Device
Power Input		12V/24V
Minimum Working Voltage/Current:		4.75V, 320mA
Maximum Working Voltage/Current:		5.25V, 500mA
Function:		Fatigue Detection and Alarm；Distraction Detection with Alarm；1-2 Second Alarm Response；60° Detection Angle
Interface:		USB
Working Temperature:		-20℃-60℃

Usage Guide
